เพาเวอร์แอมป์ Dynacord C3600FDi DSP Power Amplifier 2x1800W

Name: เพาเวอร์แอมป์ Dynacord C3600FDi DSP Power Amplifier 2x1800W
Price: 85100.00 THB
Availability: InStock

เครื่องขยายเสียง เพาเวอร์แอมป์ Dynacord C-Series C3600FDi Advanced DSP with FIR Drive Technology, Powerful Control Software, Low Z and 70/100V Operation, มีกำลังขับ 2 x 3200 วัตต์ at 2 โอหม์, 2 x 1800 วัตต์ at 4 โอหม์, 2 x 950 วัตต์ at 8 โอหม์, Euroblock Connectors

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿100,200.00~~ ฿85,100.00

สอบถามและสั่งซื้อสินค้า

Category: เพาเวอร์แอมป์ (Power AMP) Tag: DYNACORD

Description

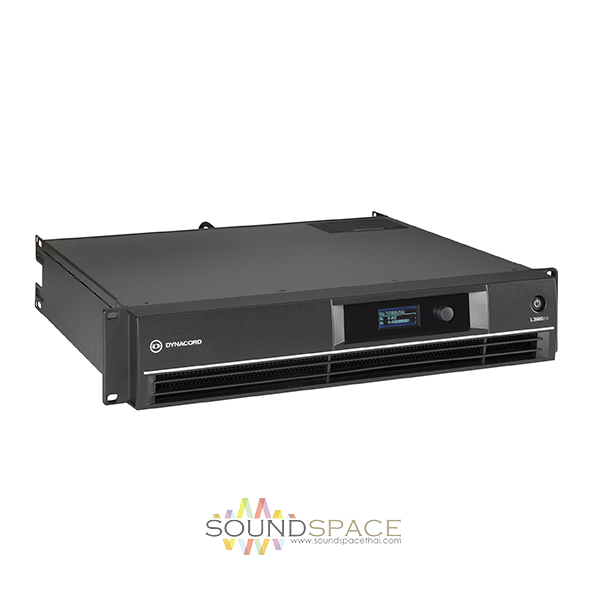

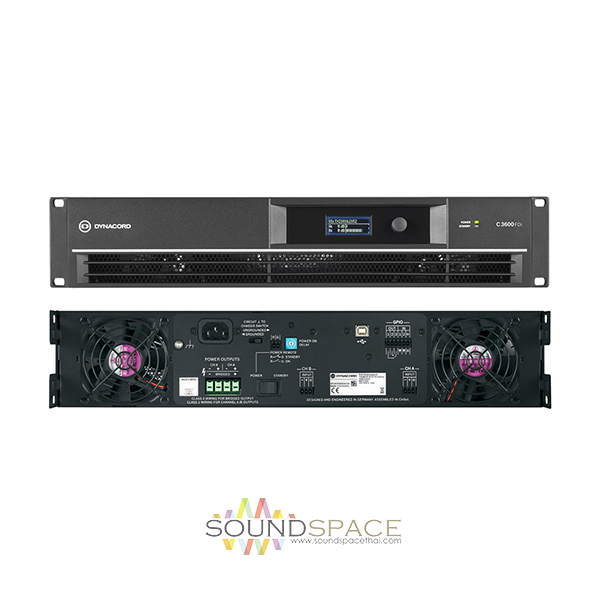

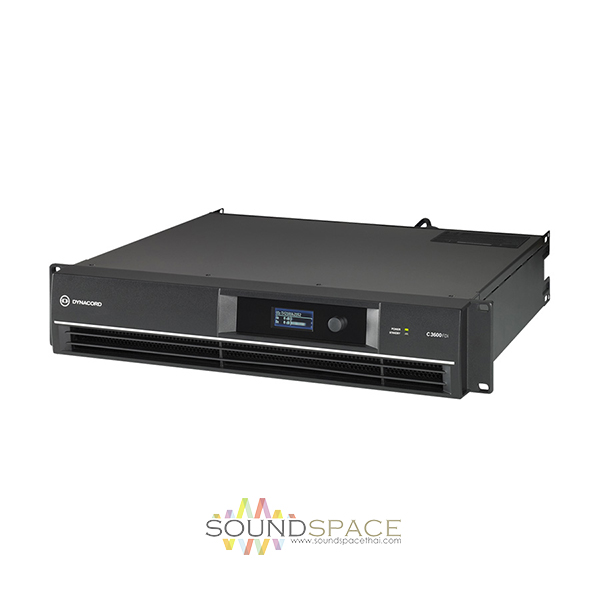

Dynacord C3600FDi C-Series FIR-Drive Power Amplifier 3600W

Dynacord’s C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.

C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions. Four different models per series are available, with a total output power ranging from 1300 W to 3600 W at 4 ohms.

All models are also suitable for direct drive applications with 70V / 100V speaker lines, providing high flexibility for a variety of install scenarios. In addition, the amplifiers feature Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. The efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a very low total cost of ownership.

Like all Dynacord amplifiers, the C series also offers high quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. The onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channelgrouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group.

Features:

2 x 3200W at 2 Ohms, 2 x 1800W at 4 Ohms, 2 x 950W at 8 Ohms
Euroblock Connectors
Single, Dual Channel, and Bridged Modes
Advanced DSP with FIR Drive Technology
Low Z and 70/100V Operation
Powerful Control Software
Advanced Protection Circuitry
Includes Euroblock Connectors

Specifications

Load Impedance	2Ω 2.7Ω 4Ω 8Ω
Maximum Output Power, SIngle Channel	2Ω: 3200W; 2.7Ω: 2700W; 4Ω: 1800W; 8Ω: 950W
Maximum Output Power, Dual Channel	2Ω=3000W; 2.7Ω=2500W; 4Ω=1700W; 8Ω=900W;

Maximum Output Power, Bridged	4Ω=6000 W; 8Ω=3400 W
Maximum RMS Voltage Swing, THD = 1%, 1kHz	90.6V
Voltage Gain ref.1kHz	32.0dB
IMD-SMPTE, 60 Hz, 7 kHz	<0.1%
DIM 30	<0.05% (3.15 kHz, 15 kHz)
Maximum Input Level	+21 dBu
Crosstalk	< -80dB (ref. 1 kHz, at 100 W/4 Ω)
Frequency Response	10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced	20kΩ
Signal-to-Noise Ratio (A-weighted)	>109dB
Output Noise , A-weighted	<-68dBu
Output Stage Topology	Class H
Power Requirement	240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption	850 W (⅛ Maximum Output Power @4Ω)
Protection	Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling	Front-to-rear, 3-stage-fans
Safety Class	I
Available Color	Black
Height	88mm (3.46″)
Width	483mm (19.02″)
Depth	462.4mm (18.2″)
Weight Net	18.2kg (40.12 lbs)
Signal Processing	FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
High Impedance Operation	70V Operation & 100V Operation
Mains Fuse	240 V/230 V: T15AH; 120 V/100 V: T30AH
Operating Temperature Range	+5°C to +40°C (40°F to +105°F)
Total Harmonic Distortion	<0.05% (at 1200 W/4 Ω MBW = 80 kHz, 1 kHz)
