ชุดไมโครโฟน DPA DLS4000 Location Sound Microphone Kit

ไมค์จ่อเครื่องดนตรี DPA DLS4000 Location Sound Microphone Kit, Complete Set of Location Mics, 4 Shotgun Mics, 2 Compact Mics, 1 Gooseneck Mic, 13 Lav Mics, Various Colors/Sensitivity, 4 Preamps, Cables, Holders, Conceaters Adapters, Clips, and More

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿895,960.00

สอบถามและสั่งซื้อสินค้า

Description

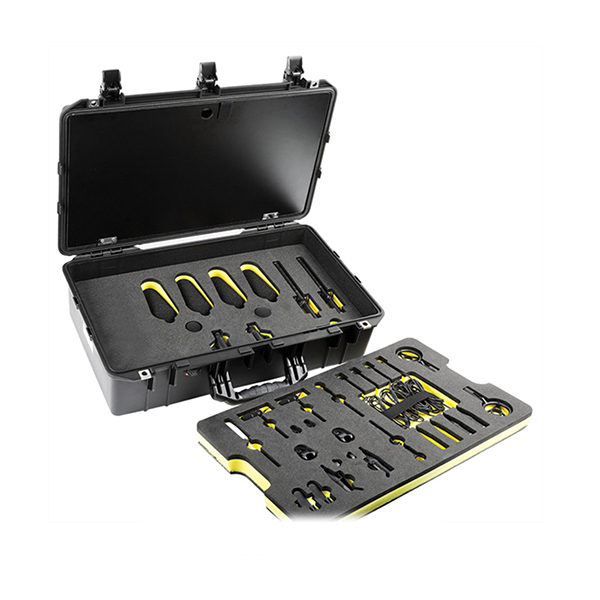

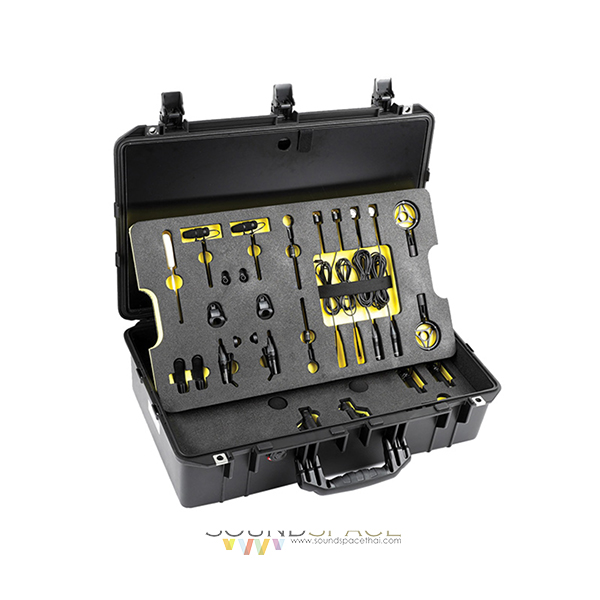

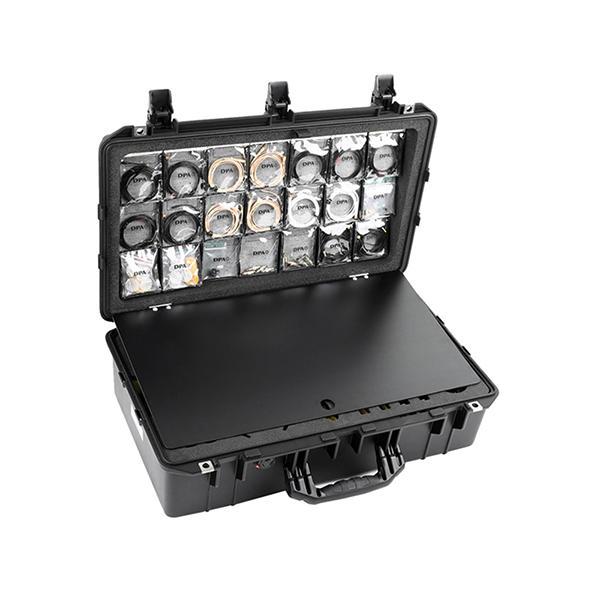

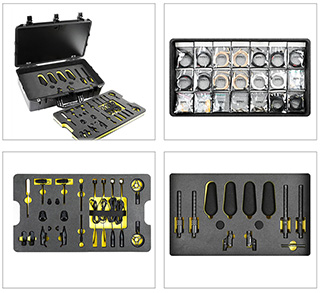

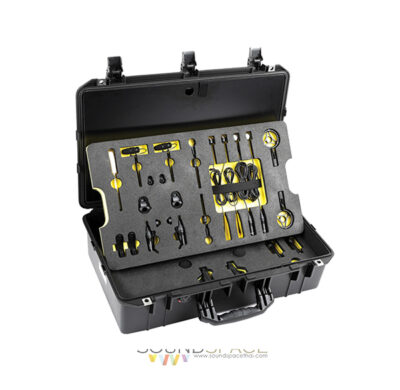

DPA DLS4000 Location Sound Microphone Kit

ไมค์จ่อเครื่องดนตรี DPA DLS4000 Location Sound Microphone Kit, Complete Set of Location Mics, 4 Shotgun Mics, 2 Compact Mics, 1 Gooseneck Mic, 13 Lav Mics, Various Colors/Sensitivity, 4 Preamps, Cables, Holders, Conceaters Adapters, Clips, and More

DPA DLS4000 DPA’s Location Sound Microphone Kit has the crucial mics needed for all your standard location recording needs. It includes shotguns for booming, micro shotguns for discreet plant miking and a range of lavaliers for close miking the talent.

Each condenser microphone in the kit has been chosen based on the input of professional sound engineers working within film and broadcast.

In addition to the mics, the kit includes 20+ extra cables, holders, concealers, adapters, clips and more. As soon as you open this massive location sound kit, you’re ready to roll.

ในชุดประกอบด้วย :

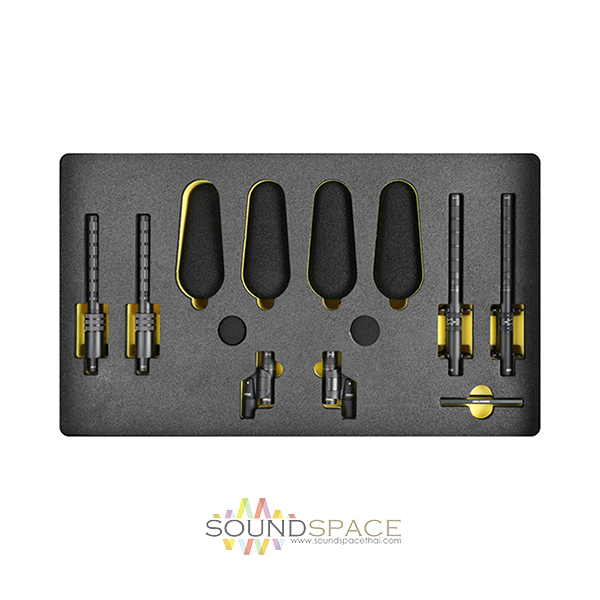

Microphones

  • 2 x 4097 CORE Micro Shotgun Microphone
  • 1 x 4098 CORE Supercardioid Mic, White, MicroDot, 16 cm (6 in) Boom, full Gooseneck
  • 2 x 4060 CORE Omni Mic, Normal SPL, Beige, MicroDot
  • 2 x 4061 CORE Omni Mic, Loud SPL, Black, MicroDot
  • 2 x 4071 CORE Omni Mic, Presence Boost, Loud SPL, Black, MicroDot
  • 1 x 4661 CORE Heavy Duty Omni Mic, Loud SPL, Black, MicroDot
  • 2 x 6060 CORE Omni Submini Mic, Normal SPL, White, MicroDot
  • 2 x 6060 CORE Omni Submini Mic, Normal SPL, Beige, MicroDot
  • 2 x 6061 CORE Omni Submini Mic, Loud SPL, Black, MicroDot
  • 2 x 2017 Shotgun Microphone
  • 2 x 4017B Shotgun Mic
  • 2 x 4018C Compact Supercardioid Mic

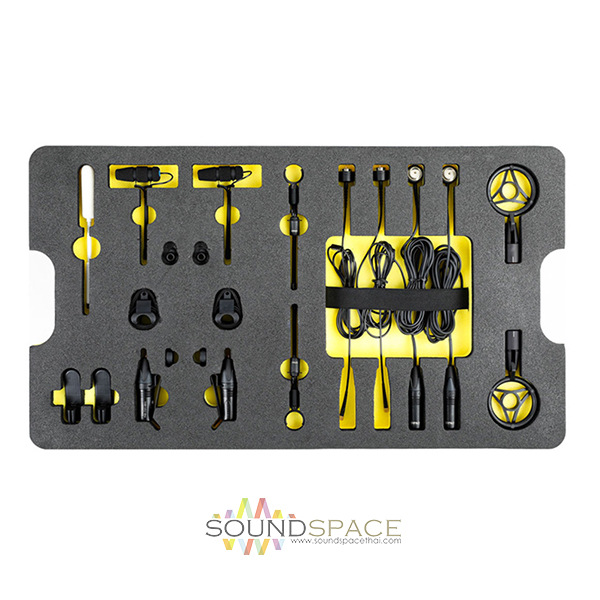

Accessories

  • 2 x MMP-ES Preamp with Modular Active Cable, XLR, Side, 3 m (9.8 ft)
  • 2 x MMP-GR Preamp with Modular Active MicroDot Cable, Rear, 1.8 m (5.9 ft)
  • 4 x DUA0073 Foam Windscreen for 4017
  • 2 x DUA0041 Foam Windscreen for Pencil Mics with Active Cable
  • 1 x DUA6004 High Boost Grid for 4060 Series Lavalier and 4066/4266 Headset, beige, 5 pieces
  • 1 x DUA6002 High Boost Grid for 4060 Series Lavalier and 4066/4266 Headset, black, 5 pieces
  • 2 x DMM0011-B Magnet Mount
  • 1 x DMM0521 Concealer for Lavalier Microphone, 5 pieces
  • 1 x DMM0522 Concealer for 4660 Heavy Duty Lavalier Microphone, 5 pieces
  • 2 x CM1618B00 MicroDot Extension Cable, 1.6 mm
  • 2 x CM2218B00 MicroDot Extension Cable, 2.2 mm
  • 4 x DAD6003 Adapter for Sennheiser SK
  • 4 x DAD3056 Adapter for Lectrosonics LM, SM, UM Series (for Low DC Microphone)
  • 1 x DUA9302 Paintable Cap, 3 pieces
  • 2 x GSM4000 Gooseneck Shock Mount for Pencil Microphones
  • 2 x CSM4000 Compact Shock Mount
  • 2 x CM4099 Clamp Mount
  • 2 x UC4099 Universal Clip
  • 2 x DAD6001-BC Adapter MicroDot to 3-pin XLR
  • 2 x DUA9002 Shock Mount for Pencil Microphones

Specifications

DPA Microphones 4097

Microphone
Form Factor
Stand/Boom Mount
Sound Field
Mono
Element Type
1x Electret Condenser
Polar Pattern
Supercardioid
Performance
Frequency Range
20 Hz to 20 kHz
80 Hz to 15 kHz (at 7.9″ / 20.07 cm)
Maximum SPL
135 dB SPL Peak
Sensitivity
16 mV/Pa
Dynamic Range
110 dB
Signal-to-Noise Ratio
71 dB A-Weighted
Connectivity
Output Connector 1x Microdot Coaxial
Power
Power Sources
Phantom Power, Plug-In Power
Operating Voltage
12 to 48 V (Phantom Power)
5 to 10 V
Physical
Color
Black
Weight
0.35 oz / 10 g

DPA Microphones 4098

Microphone
Form Factor
Gooseneck / Plug-In Mount
Intended Sound Sources
Vocals
Sound Field
Mono
Operating Principle
Pressure Gradient
Element Type
1x Electret Condenser
Polar Pattern
Supercardioid
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
133 dB SPL Peak
Sensitivity
-36 dB
Dynamic Range
110 dB
CMRR
60 dB
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V (Plug-In Power)
Operating Current Consumption
1.5 mA
Physical
Color
White
Included Case
No
Included Filters
No
Operating Temperature
-40 to 113°F / -40 to 45°C
Operating Humidity
90%

DPA Microphones 4060

Microphone
Form Factor
Lavalier
Intended Sound Sources
Double Bass, Acoustic Guitar, Cello, Flute, Ukelele, Viola, Violin
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
129 dB SPL Peak (Plug-In Power, 1% THD)
134 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
20 mV/Pa at 1 Hz
Dynamic Range
106 dB A-Weighted
Signal-to-Noise Ratio
71 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Beige
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Weight
0.26 oz / 7.5 g (with Cable)

DPA Microphones 4061

Microphone
Form Factor
Lavalier
Intended Sound Sources
Double Bass, Acoustic Guitar, Cello, Flute, Ukelele, Viola, Violin
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
137 dB SPL RMS (Plug-In Power, 1% THD)
144 dB SPL RMS (Plug-In Power, 10% THD)
Sensitivity
6 mV/Pa at 1 Hz
Dynamic Range
111 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Black
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.2 x L: 0.5″ / ø: 5.4 x L: 12.7 mm
Weight
0.26 oz / 7.5 g

DPA Microphones 4071

Microphone
Form Factor
Lavalier
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
100 Hz to 15 kHz
Maximum SPL
137 dB SPL Peak (Plug-In Power, 1% THD)
144 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
6 mV/Pa at 1 Hz
Dynamic Range
111 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Black
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.2 x L: 0.7″ / ø: 5.4 x L: 17.6 mm
Weight
0.26 oz / 7.5 g (with Cable)

DPA Microphones 4661

Microphone
Form Factor
Lavalier
Sound Field
Mono
Polar Pattern
Omnidirectional
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
137 dB SPL Peak (Plug-In Power, 1% THD)
144 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
6 mV/Pa at 1 Hz
Dynamic Range
97 dB (Typical)
Connectivity
Output Connector
1x Microdot 1-Pin Male (Locking)
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Black
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.2 x L: 0.7″ / ø: 5.4 x L: 17.6 mm
Weight
0.5 oz / 13 g (with Cable)

DPA Microphones 6060

Microphone
Form Factor
Lavalier
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
40 Hz to 20 kHz
Maximum SPL
126 dB SPL Peak (Plug-In Power, 1% THD)
134 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
20 mV/Pa at 1 Hz
Dynamic Range
102 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
White
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.1 x L: 0.6″ / ø: 3.4 x L: 14.4 mm (Microphone)
Weight
0.3 oz / 8 g (with Cable)

DPA Microphones 6060

Microphone
Form Factor
Lavalier
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
40 Hz to 20 kHz
Maximum SPL
126 dB SPL Peak (Plug-In Power, 1% THD)
134 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
20 mV/Pa at 1 Hz
Dynamic Range
102 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Beige
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.1 x L: 0.6″ / ø: 3.4 x L: 14.4 mm (Microphone)
Weight
0.3 oz / 8 g (with Cable)

DPA Microphones 6061

Microphone
Form Factor
Lavalier
Sound Field
Mono
Element Type
Electret Condenser
Polar Pattern
Omnidirectional
Performance
Frequency Range
40 Hz to 20 kHz
Maximum SPL
128 dB SPL Peak (Plug-In Power, 1% THD)
144 dB SPL Peak (Plug-In Power, 10% THD)
Sensitivity
6 mV/Pa at 1 Hz
Dynamic Range
102 dB A-Weighted
Connectivity
Output Connector
1x Microdot Coaxial Male
Cable Length
5.9′ / 1.8 m
Power
Power Sources
Plug-In Power
Operating Voltage
5 to 10 V
Physical
Color
Black
Environmental Protection
Dust/Water-Resistant to 3.28′ / 1 m (IP58)
Dimensions
ø: 0.1 x L: 0.6″ / ø: 3.4 x L: 14.4 mm (Microphone)
Weight
0.3 oz / 8 g (with Cable)

DPA Microphones 4017B

Microphone
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Supercardioid
Circuitry
Tube
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
138 dB SPL
Sensitivity
-34.4 dB at 1 kHz
Dynamic Range
119 dB
Signal-to-Noise Ratio
80 dB A-Weighted
Connectivity
Output Connector
1x XLR 3-Pin
Power
Power Sources
Phantom Power
Operating Voltage
1.8 V
48 V (Phantom Power)
Physical
Dimensions
ø: 0.75 x L: 8.35″ / ø: 19 x L: 212 mm
Weight
2.4 oz / 68 g

DPA Microphones 4018C

Microphone
Element Type
Condenser
Polar Pattern
Supercardioid
Performance
Frequency Range
20 Hz to 20 kHz
Maximum SPL
150 dB SPL
Sensitivity
-38.4 dB at 1 kHz
Dynamic Range
121 dB
Signal-to-Noise Ratio
78 dB A-Weighted
Connectivity
Output Connector
1x XLR 3-Pin
Power
Power Sources
Phantom Power
Operating Voltage
48 V
Physical
Dimensions
ø: 0.75 x L: 2.52″ / ø: 19 x L: 64 mm
Weight
2.05 oz / 58 g

DPA Microphones MMP-ES

Physical
Output Connector
XLR-3M, pin 1 shield, pin 2 signal + phase, pin 3 – phase
Low-Cut Frequency
-3 dB: 15 Hz
Noise
With Shorted Input, A-weighted: 0.6 µV
Output Voltage
RMS: 2.2 V
Peak: 3.1 V
Type Of Electronic Circuit
Active
Total Harmonic Distortion (THD)
At 1VRMS, 1kHz: < 0.2 %
Dynamic Range
131 dB
Output Impedance
100 Ω
Cable Drive Capability
324′ (100 m)
Minimum Load Impedance
2 kΩ
Common Mode Rejection Ratio
> 40 dB
Power Supply
For Full Specifications: 48 V Phantom power (± 4 V)
Current Consumption
3.5 mA
Output Balance Principle
Impedance balancing
Temperature Range
-40 to 113°F (-40 to 45°C)
Relative Humidity
Up to 90 %
Dimensions
118 x 0.75″ (3000 x 19 mm)
Weight
3.2 oz (91 g)

DPA Microphones MMP-GR

General
Compatibility
DPA Pencil Microphone Capsule
Inputs / Outputs
Audio I/O
1x Microdot Mic Output
Physical
Color
Black
Cable Length
5.9′ / 1.8 m
Dimensions
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer
