Digital Signal Processor SYMETRIX RADIUS 12X8 EX
อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX RADIUS A Powerful General Purpose DSP / A Version with AEC, 12X8 EX 128 Channel (64×64) Redundant Dante, On-board Ethernet and Dante Network Switches, 1 I/O Expansion Card Slot, 12 Analog Inputs / 8 Analog Outputs
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿132,000.00 ฿112,200.00
Description
SYMETRIX RADIUS 12X8 EX Digital Signal Processor
อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX RADIUS A Powerful General Purpose DSP / A Version with AEC, 12X8 EX 128 Channel (64×64) Redundant Dante, On-board Ethernet and Dante Network Switches, 1 I/O Expansion Card Slot, 12 Analog Inputs / 8 Analog Outputs

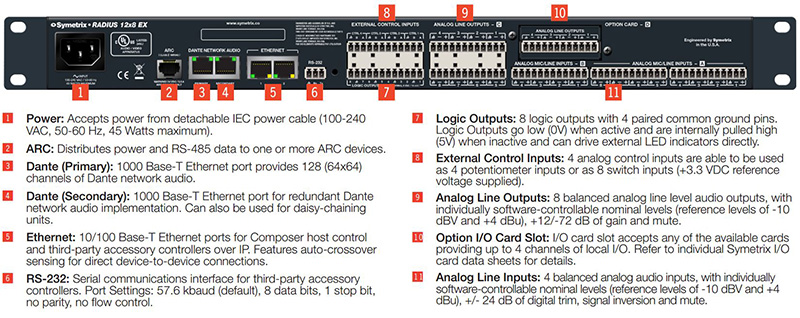

The Radius 12×8 EX featuring a configurable input/output option card slot, is a universal DSP building block with a 64×64 Dante™ network audio port,12 analog mic/line inputs, and 8 analog outputs.
The addition of the versatile option card slot reduces total system costs by maximizing the number of inputs or outputs in a single 1U DSP. For example, adding a Symetrix 4 Channel Analog Input Card creates a 16×8 analog configuration; with a 4 Channel Analog Output Card the result is 12×12.
The expansion slot supports an array of Symetrix audio I/O cards including 4-channel analog, 4-channel digital, 4-channel AEC, 2 line analog telephone, 2 line VoiP, and USB audio
Features:
- A Powerful General Purpose DSP / A Version with AEC
- 128 Channel (64×64) Redundant Dante
- On-board Ethernet and Dante Network Switches
- 1 I/O Expansion Card Slot
- 12 Analog Inputs / 8 Analog Outputs
Specifications
General Specifications
| Processors | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD. |
| Raw processing capacity | 400 MIPS, 1.6 GFLOPS. |
| Sampling rate | 48 kHz, ± 100 ppm. |
| Frequency response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB. |
| Dynamic range (A/D/A) | > 114 dB, A-weighted. |
| Channel separation (A/D/A) | > 108 dB @ 1 kHz, +24 dBu. |
| Latency (A/D/A) | 0.88 mS, inputs routed to outputs. |
| Delay memory | 174 mono seconds. |
| Analog control inputs | 0-3.3 VDC. |
| Recommended external control potentiometer | 10k Ohm, linear. |
| Logic outputs | Low (0V) when active, pulled high (5V) when inactive. |
| Logic output maximum external power supply voltage / current sinking | 24 VDC / 50 mA. |
| Logic output maximum output current | 10 mA. |
| THD + Noise | < -85 dB (unweighted); 1 kHz @ +22 dBu with 0 dB gain. |
| RS-232 accessory serial I/O | 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required. |
| RS-485 serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port. |
| Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters. |
| Dante Cable | Standard CAT6, maximum device to device length = 100 meters. |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. |
| Maximum stored presets | 1000. |
Analog Inputs
| Connectors | 3.81 mm terminal blocks. |
| Number of inputs | Twelve (12) switchable balanced mic or line level. |
| Nominal input level | +4 dBu with 20 dB of headroom. |
| Maximum input level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim. |
| Mic pre-amp EIN | < -127 dB with 150 Ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input impedance | 8 k Ohms balanced, 4 k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 115 dB, A-weighted. |
| THD + Noise | < -94 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
Analog Outputs
| Connectors | 3.81 mm terminal blocks. |
| Number of outputs | Eight (8) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2 k Ohm minimum load). |
| Output impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic range | > 117 dB, A-weighted. |
| THD + Noise | < -95 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
Mechanical Data
| Space Required | 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 100-240 VAC, 50/60 Hz, 45 Watts maximum universal input. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 13 lbs. (5.9 kg). |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
