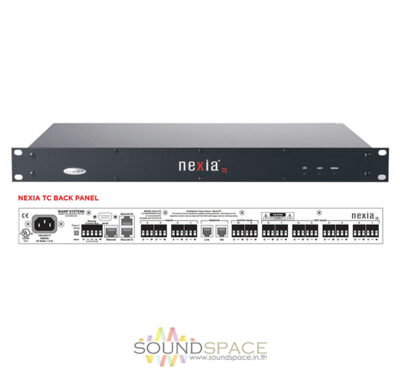

Digital Signal Processor BIAMP Nexia TC

Description

เครื่องปรับแต่งสัญญาณเสียง BIAMP Nexia TC Digital Signal Processor

เครื่องปรับแต่งสัญญาณเสียง BIAMP Nexia TC DSP Processor  2 standard balanced mic/line inputs 4 balanced mic/line outputs Telephone interface, line and set connections

Nexia TC is a digital signal processor featuring Biamp Sona™ AEC — our proprietary wideband acoustic echo cancellation technology. Designed specifically to provide crisp, clear audio in teleconferencing applications, Nexia TC delivers true 20Hz to 20kHz bandwidth during multiple participant conversations, with natural, true-to-life sound and full duplex transmission of speech, including doubletalk. Sona™ AEC also delivers increased tolerance to differing signal levels, plus faster installation and setup.

Nexia TC includes a broad selection of audio components, routing options, and signal processing. The internal system design is completely user definable via PC software, and can be controlled via dedicated software screens, RS-232 control systems, and a variety of optional remote controls. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink.

คุณลักษณะเด่น

• 2 standard balanced mic/line inputs
• 4 balanced mic/line outputs
• Telephone interface, line and set connections
• Ethernet and serial ports for configuration and control

Features:

• 8 wide-band AEC balanced mic/line inputs
• 2 standard balanced mic/line inputs
• 4 balanced mic/line outputs
• telephone interface with line & set connections
• Ethernet port for software configuration/control
• serial port for third-party RS-232 remote control
• remote control bus for dedicated control panels
• NexLink ports for multi-unit system designs
• Nexia software for Windows® 2000/XP Professional
• pre-configured I/O with definable processing
• RoHS compliance and AES grounding practices
• CE marked and UL listed
• covered by Biamp Systems’ five-year warranty
• Ability to select, view, and calibrate: Mixers, Equalizers, Filters, Crossovers, Dynamics, Routers, Delays, Controls, Meters, Generators, Diagnostics.
• Telephone Interface capabilities include:
• initiation of outgoing calls
• detection and answering of incoming calls
• line echo cancellation
• TouchTone™ decoding
• caller ID reception
• call progress detection
• line intrusion detection
• continuous line status and fault monitoring

Nexia TC Manuals & Data Sheets >>http://www.biamp.com/products/nexia/nexia_tc.aspx
