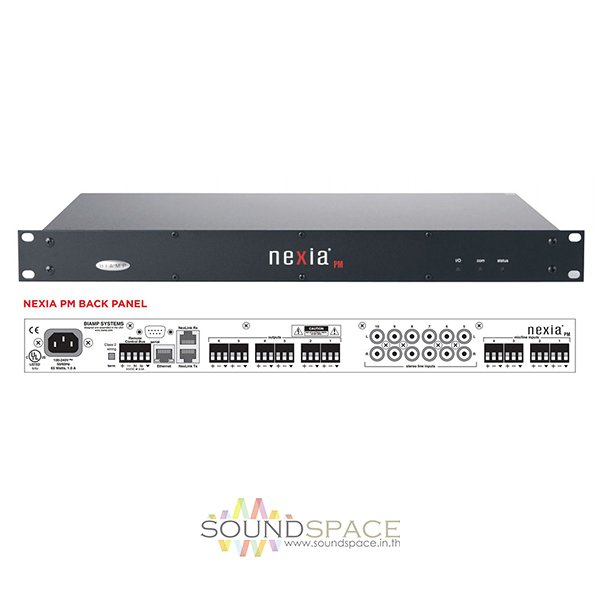

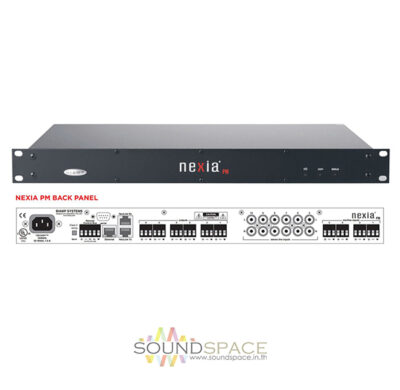

Digital Signal Processor BIAMP Nexia PM

Description

เครื่องปรับแต่งสัญญาณเสียง Nexia PM Digital Signal Processor

เครื่องปรับแต่งสัญญาณเสียง Biamp NEXIA PM DSP Processor 4 mic/line inputs & 6 stereo (12 mono) line inputs 3 stereo (6 mono) balanced line outputs Ethernet port for software

Nexia PM is a digital signal processor with 4 mic/line inputs, 6 stereo line inputs, and 6 line outputs. Intended for multi-media presentation applications requiring both microphone and program content, Nexia PM includes a broad selection of audio components, routing options, and signal processing

The internal system design is completely user definable via PC software, and can be controlled via dedicated software screens, RS-232 control systems, and/or a variety of optional remote control devices. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.

คุณลักษณะเด่น

• 4 mic/line inputs & 6 stereo (12 mono) line inputs
• 3 stereo (6 mono) balanced line outputs
• Ethernet port for software configuration/control
• Serial port for third-party RS-232 remote control

Features:

• 4 mic/line inputs & 6 stereo program line inputs
• 6 line outputs (configurable as stereo pairs)
• Ethernet port for software configuration/control
• serial port for third-party RS-232 remote control
• remote control bus for dedicated control panels
• NexLink ports for multi-unit system designs
• NEXIA software for Windows® 2000/XP
• pre-configured I/O with definable processing
• mix, route, combine, EQ, delay, control, etc.
• CE marked and UL listed
• covered by Biamp Systems’ five-year warranty
• Ability to select, view, and calibrate:
• Mixers: standard, automatic, matrix, combiners
• Equalizers: graphic, parametric, feedback
• Filters: HPF, LPF, high shelf, low shelf, all-pass
• Crossovers: 2-Way, 3-Way and 4-way
• Dynamics: leveler, comp/limiter, ducker, ANC
• Routers: 2×1 ~ 32×32
• Delays: 0 ~ 2000 ms
• Controls: levels, presets, logic, RS-232, etc.
• Meters: signal present, peak, RMS
• Generators: tone, pink-noise, white-noise
• Diagnostics: transfer function

Nexia PM Manuals & Data Sheets >> http://www.biamp.com/products/nexia/nexia_pm.aspx
