Digital Signal Processor BIAMP Nexia CS

Description

เครื่องปรับแต่งสัญญาณเสียง Nexia CS Digital Signal Processor

เครื่องปรับแต่งสัญญาณเสียง Biamp NEXIA CS DSP Processor 10 balanced mic/line inputs 6 balanced mic/line outputs Ethernet port for software

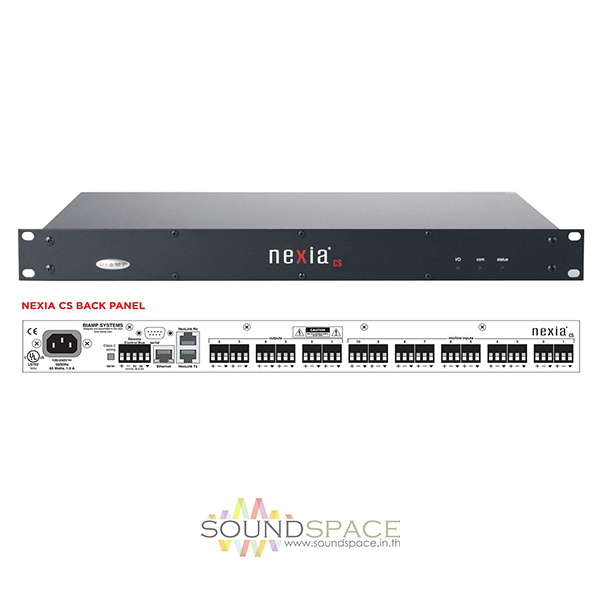

Nexia CS is a digital signal processor with 10 mic/line inputs and 6 mic/line outputs. Intended for a variety of conferencing applications such as boardrooms, courtrooms, and council chambers, Nexia CS includes a broad selection of audio components, routing options, and signal processing.

The internal system design is completely user definable via PC software, and can be controlled via dedicated software screens, RS-232 control systems, and/or a variety of optional remote control devices. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.

คุณลักษณะเด่น

• 10 balanced mic/line inputs on plug-in barrier strips
• 6 balanced mic/line outputs on plug-in barrier strips
• Ethernet port for software configuration/control
• Serial port for third-party RS-232 remote control

Features:

• 10 balanced mic/line inputs on plug-in barrier strip
• 6 balanced mic/line outputs on plug-in barrier strip
• Ethernet port for software configuration/control
• serial port for third-party RS-232 remote control
• remote control bus for dedicated control panels
• NexLink ports for multi-unit system designs
• NEXIA software for Windows® 2000/XP
• pre-configured I/O with definable processing
• mix, route, combine, EQ, delay, control, etc.
• Ability to select, view, and calibrate:
• Mixers: standard, automatic, matrix, combiners
• Equalizers: graphic, parametric, feedback
• Filters: HPF, LPF, high shelf, low shelf, all-pass
• Crossovers: 2-Way, 3-Way and 4-way
• Dynamics: leveler, comp/limiter, ducker, ANC
• Routers: 2×1 ~ 32×32
• Delays: 0 ~ 2000 ms
• Controls: levels, presets, logic, RS-232, etc.
• Meters: signal present, peak, RMS
• Generators: tone, pink-noise, white-noise
• Diagnostics: transfer function

Nexia CS Manuals & Data Sheets >>http://www.biamp.com/products/nexia/nexia_cs.aspx
