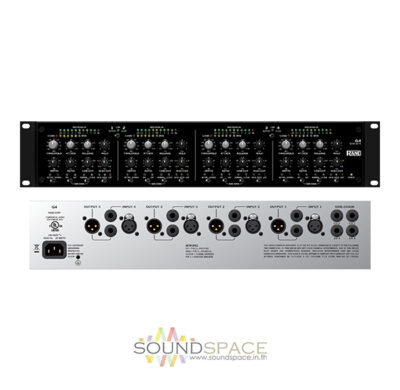

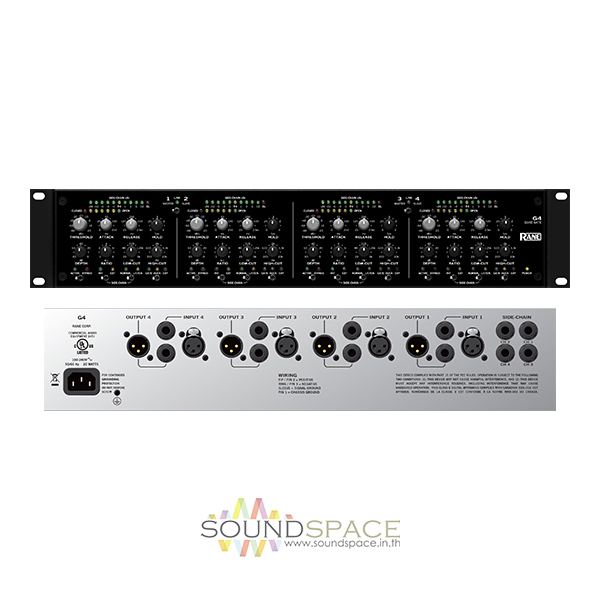

Quad Gate RANE G4 Four Channel Gate

เกทแบบ 4 ชาแนล RANE G4 Four channel processor with independent gate, expand and duck modes per channel

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿57,600.00 ฿46,000.00

สอบถามและสั่งซื้อสินค้า

Description

Rane G4  Four Channel Analog-Controlled Digital Gate, Ducker and Expander

เกทแบบ 4 ชาแนล RANE G4 Four channel processor with independent gate, expand and duck modes per channel

The G4 from Rane is a four channel gate that combines familiar front panel analog controls with the accuracy and performance of digital signal processing. Analog-controlled digital processing allows a sound engineer to make precise adjustments, in real time using analog controls, while digital signal processing provides a degree of accuracy, consistency and flexibility that simply cannot be matched with a traditional analog design.

The G4 Quad Gate is an ideal tool for front of house, monitor, instrument and voice processing, broadcast and recording, providing a variety of dynamics applications including gating, ducking and downward expansion. Internal or external side-chain key input, built-in side-chain filtering, side-chain listen, look-ahead signal detection and advanced metering combine with properly defined threshold, attack, decay, hold, and depth controls to provide the necessary tools for unsurpassed flexibility and performance.

Features:

  • Four channel processor with independent gate, expand and duck modes per channel
  • Analog control of digital processing
  • Look-ahead gating
  • Adjustable threshold, attack, release, hold, depth and ratio
  • Stereo Link between channels 1/2 and 3/4
  • Side-chain processing includes internal low and high cut filters
  • Listen switch
  • Universal internal switching power supply
  • Exceptional immunity to RF and electromagnetic interference





Specifications

Function Gate/Ducker/Expander
Number of Channels 4
Inputs 4 x XLR
4 x 1/4″ TRS phone
4 x 1/4″ TRS phone Insert
Outputs 4 x XLR
4 x 1/4″ TRS phone
Maximum Input Level +22dBu
Compression Threshold Not applicable
Compression Ratio Not applicable
Attack Time Not applicable
Release Time Not applicable
Gate Threshold +20dB to -60dB
Gate Rate Attack: 0 mSec to 250 mSec (settle to 85% of final value)
Release: 0.025 Sec to 2.0 Sec (for 10dB step)
Hold: 0 Sec to 3 Sec (Gate and Duck modes only)
Depth: 0dB to 80dB (Gate and Duck modes only)
Ratio: 1:1 to 8:1
Maximum Output Level +22dBu
Make-up Gain Not applicable
Frequency Response 15Hz to 20kHz, +0/-3dB
Dynamic Range 106dB, A-weighted
Noise Not specified by manufacturer
Dimensions (WxDxH) 19″ x 8 1/4″ x 3 1/2″
Weight 7.3 lbs
Specialties Internal high and low cut filters
