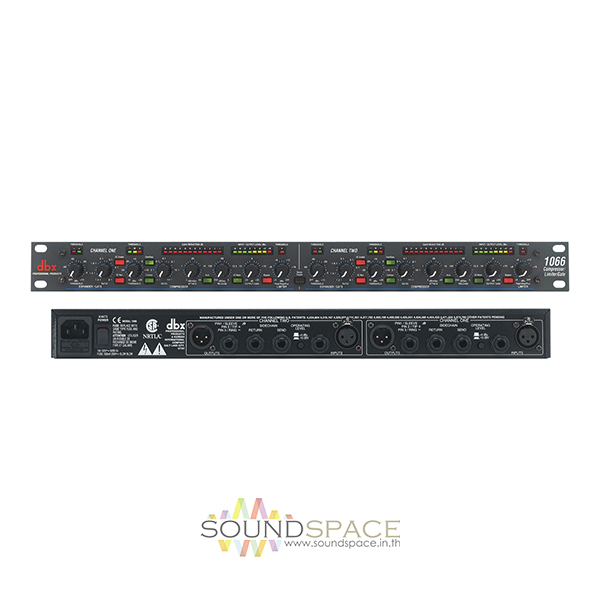

คอมเพรสเซอร์ dbx 1066V Compressor Gate
อุปกรณ์ปรับแต่งเสียง DBX 1066V dual mono/stereo compressor/limiter with gate, Selectable auto (classic dbx®) or manual (variable Attack and Release) compression
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿30,800.00 ฿17,900.00
Description
คอมเพรสเซอร ลิมิตเตอร์ dbx 1066V Compressor/Limiter/Gate
อุปกรณ์ปรับแต่งเสียง DBX 1066V dual mono/stereo compressor/limiter with gate, Selectable auto (classic dbx®) or manual (variable Attack and Release) compression
Based on a new VCA, the 1066, a dual mono/stereo compressor/limiter with gate, carries both the classic dbx response, in addition to full manual control over the attack and release characteristics. Frequency dependent gain control is easy to set up and execute with the side chain, and the Side Chain Monitor button helps with setting up the required EQ.
The contour switch allows entire mixes to be easily smoothed with soft compression, while keeping low frequencies from punching holes in the overall mix. Selectable input and output metering provides information to help match equipment level-wise, maximizing signal-to-noise ratio. For overall speaker protection, PeakStopPlus represses unwanted transients that could blow drivers, while minimizing the distortion common to many other hard-limiters. Selectable Hard-Knee or OverEasy characteristics make the 1066 ideal for gain control needs, whether for “heavy” almost-special-effects compression or soft, smooth gain leveling.
In the studio, broadcast facility, or on the road with a P.A. system, the 1066 is designed for simple operation. It allows the user to eliminate unwanted signals, control overall signal gain, and guard the overall mix in dual mono or stereo operations.
Features:
- Selectable auto (classic dbx®) or manual (variable Attack and Release) compression
- Contour switch removes unwanted low frequency information from detector circuit
- Selectable Overeasy® or Hard Knee compression modes
- PeakStopPlus™ limiting for setting maximum allowable level with minimal distortion
- SC Ext and SC Mon for setting up and monitoring external devices for gating function
- True differentially balanced gold-plated XLR and 1/4″ inputs and outputs
- True RMS level detection
- Precision metering of input level, output level, and gain reduction
- True stereo or dual mono operation
- Switchable +4dBu or -10dBV operation per channel
Specifications
| Input Connectors | XLR and 1/4″ TRS (Pin 2 and tip hot) |
| Input Type | Electronically balanced/unbalanced, RF filtered |
| Input Impedance | Balanced > 50 kOhm, unbalanced >25 kOhm |
| Max Input | > +24 dBu balanced or unbalanced |
| CMRR | Typically >50 dB at 1 kHz |
| Output Connectors | XLR and 1/4″ TRS (Pin 2 and tip hot) |
| Output Type | Servo-balanced/unbalanced, RF filtered |
| Output Impedance | Balanced 120 Ohm, unbalanced 60 Ohm |
| Max Output | > +21 dBm balanced, > +20 dBm unbalanced |
| Sidechain Input Connector | 1/4″ Unbalanced (Tip-Sleeve) |
| Sidechain Input Type | Unbalanced, RF filtered |
| Sidechain Impedance | >10 kOhm |
| Sidechain Max Input Level | >+24 dBu |
| Sidechain Output Connector | 1/4″ Balanced TRS (tip hot) |
| Sidechain Output Type | Impedance balanced, RF filtered |
| Sidechain Output Impedance | Balanced 2 kOhm, unbalanced 1 kOhm |
| Sidechain Max Output Level | >+21 dBu balanced or unbalanced |
| Bandwidth | 20 Hz to 20 kHz, +0/0.5 dB |
| Frequency Response | 0.35 Hz to 90 kHz, +0/-3 dB |
| Noise | < -95 dBu, unweighted, 22 kHz measurement bandwidth |
| Dynamic Range | > 118dB, unweighted |
| THD+Noise | 0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz |
| IMD | < 0.1% SMPTE |
| Interchannel Crosstalk | < -80 dB 20Hz to 20 kHz |
| Stereo Coupling | True RMS Power Summing |
| Compressor Threshold Range | -40 dBu to +20 dBu |
| Compressor Ratio | 1:1 to infinity:1 |
| Compressor Threshold Characteristic | Selectable OverEasy® or hard knee |
| Compressor Attack/Release Characteristic | AutoDynamic™ |
| Compressor Attack/Release Modes | Selectable Manual or Auto |
| Compressor Manual Attack Time | Scalable program-dependent |
| Compressor Manual Release Time | Scalable program-dependent |
| Compressor Auto Attack Time | Program-dependent |
| Compressor Auto Release Time | Program-dependent |
| Compressor Output Gain | -20 to +20 dB |
| Limiter Threshold Range | +4 dBu to +24 dBu (off) |
| Limiter Ratio | infinity:1 |
| Limiter Type | PeakStopPlus® two-stage limiter |
| Limiter Stage 1 | PeakStop® brickwall limiter |
| Limiter Stage 1 Attack Time | Zero |
| Limiter Stage 1 Release Time | Zero |
| Limiter Stage 2 | Predictive intelligent program limiter |
| Limiter Stage 2 Attack Time | Program-dependent |
| Limiter Stage 2 Release Time | Program-dependent |
| Expander/Gate Threshold Range | Off to +15dBu |
| Expander/Gate Ratio | 1:1 to 30:1 |
| Expander/Gate Attack Time | < 100 µsec |
| Expander/Gate Release Time | Program-dependent |
| SC Ext. Switch | Routes the external sidechain input signal to the detector |
| SC Mon. Switch | Routes the sidechain signal to the output, interrupting the normal audio |
| OverEasy® Switch | Activates the OverEasy compression function |
| Countour Switch | Activates the frequency-dependent detector function |
| Auto Switch | Activates automatic program-dependent attack and release times, disabling the manual Attack and Release controls |
| I/O Meter Switch | Switches between monitoring input and output levels on the Input/Output Level meter |
| Bypass Switch | Activates the direct input-to-output hard-wire relay bypass. Relay automatically hard-wire bypasses unit at power-down and provides a power-on delay of 1.5 sec. |
| Operating Level Switch | (rear panel) Switches the nominal operating level between -10 dBV and +4 dBu simultaneoulsy for both input and output levels |
| ST Link Switch | Link both channels for stereo operation. Channel One becomes the master |
| Gain Reduction Meter | 12-segment LED bar graph at 1, 2, 4, 6, 9, 12, 15, 18, 21, 24, 27 and 30 dB |
| I/O Meter | 8-segment LED bar graph at -24, -18, -12, -6, 0, +6, +12, and +18 dBu |
| Compressor Threshold Meter | 3-segment LED bar graph at Below (-), OverEasy and Above (+) |
| Expander/Gate Threshold Meter | 2-segment LED bar graph at Below (-) and Above (+) |
| Limiter Threshold Meter | 1 LED to indicate PeakStopPlus™ limiting |
| Function Switches | LED indicator for each front-panel switch |
| Output Transformer Options | Jensen® JT-123-dbx or JT-11-dbx, BCI RE-123-dbx or RE-11-dbx |
| Operating Voltage | 100-120 VAC 50/60 Hz 200-240 VAC 50/60 Hz |
| Power Consumption | 20 Watts |
| Fuse | 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T |
| Power Connector | IEC receptacle |
| Dimensions | 1.75″Hx19″Wx9″D (4.4cmx48.3cmx20.1cm) |
| Unit Weight | 5.1 lbs. (2.3 kg) |
| Shipping Weight | 7.5 lbs. (3.4 kg) |
