ลำโพง d&b audiotechnik xS-Series 8S Loudspeaker 8″

Description

d&b audiotechnik 8S 2-Way Compact Coaxial Loudspeaker 8″ 150/800W

ลำโพง d&b audiotechnik xS-Series 8S 2-Way Compact Coaxial ขนาดดอกลำโพง8″ driver with neodymium magnet 1″ compression driver coaxially mounted, passive crossover network, ทนกำลังขับ 150 วัตต์ RMS/800 วัตต์ /peak 10 ms) Nominal impedance 16 Ω, Dispersion Angle (h x v) 100° Conical, Max SPL 127 dB

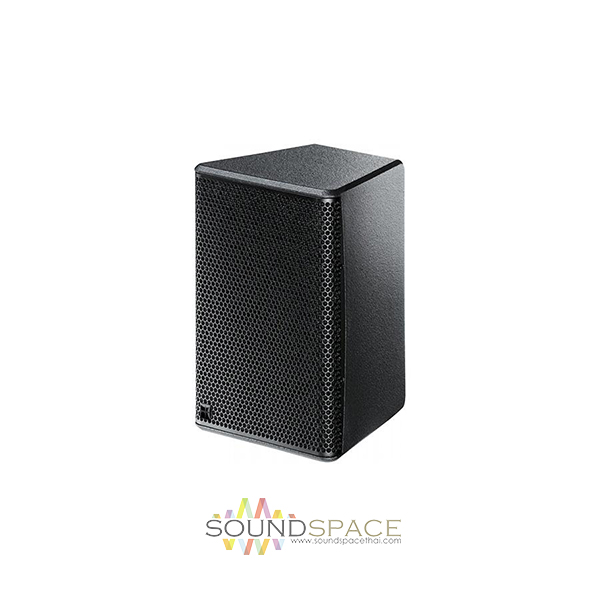

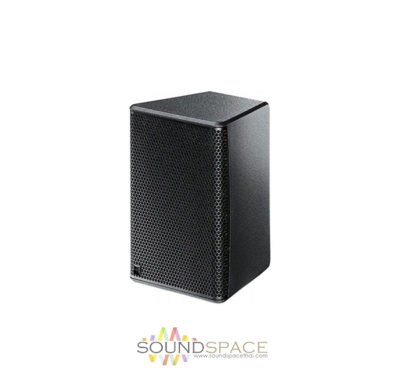

The d&b 8S is a full range, 2-way loudspeaker in a bass-reflex enclosure, utilizing an 8″/1″ coaxial driver combination with a passive crossover. The coaxial design offers a symmetrical dispersion pattern in the horizontal and vertical plane while the cabinet may be mounted in either attitude. With its frequency response from 70 Hz to 20 kHz the 8S can be used as a full range system and also be supplemented by subwoofers from the xS-Series.

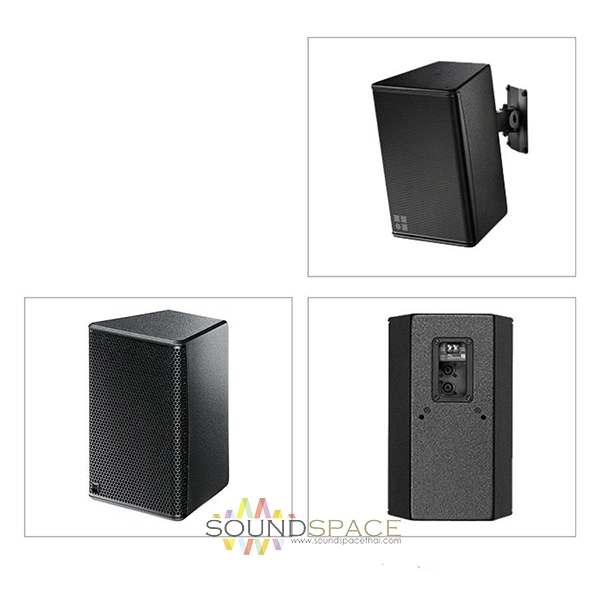

The enclosure is constructed from marine plywood with an impact resistant black or white paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam and the top and bottom panels incorporate an M8 threaded insert. The rear panel incorporates two M8 threaded inserts, two NL4 connectors and a two pole screw terminal block.

The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific 2-way compact coaxial loudspeaker
• 8″ driver with neodymium magnet
• 1″ dome tweeter coaxially mounted passive crossover network
• Power handling capacity (RMS/peak 10 ms) 150/800 W
• dispersion angle (h x v) 100° conical
• Nominal impedance 16 Ω, Max SPL 127 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 8S. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
