ลำโพงซับเบส d&b audiotechnik xS-Series 27S-SUB (1×15″ 1×12″)

Description

d&b audiotechnik 27S-SUB Installation Cardiod Subwoofer (1×15″ 1×12″) 500/2000W

ลำโพงซับเบส d&b audiotechnik สำหรับงานติดตั้ง d&b 27S-SUB ในตระกูล xS-Series เป็นตู้ซับเบสแบบ Cardiod Subwoofer ที่มีขนาดดอกลำโพง 18″ 1 ดอก และ 12. 1 ดอก, ทนกำลังขับ 500/2000 W (RMS/peak 10 ms) impedance 6 Ω, Max SPL 131 dB ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz

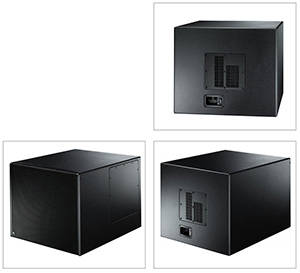

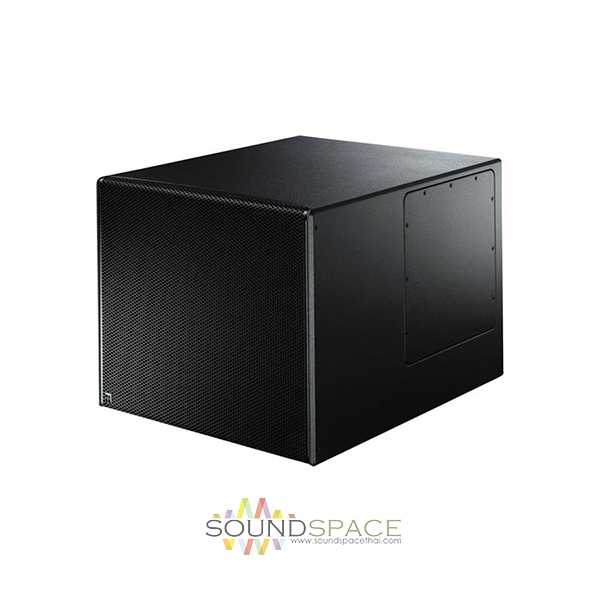

The d&b 27S-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. It can be used stand-alone, stacked or individually flown.

The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

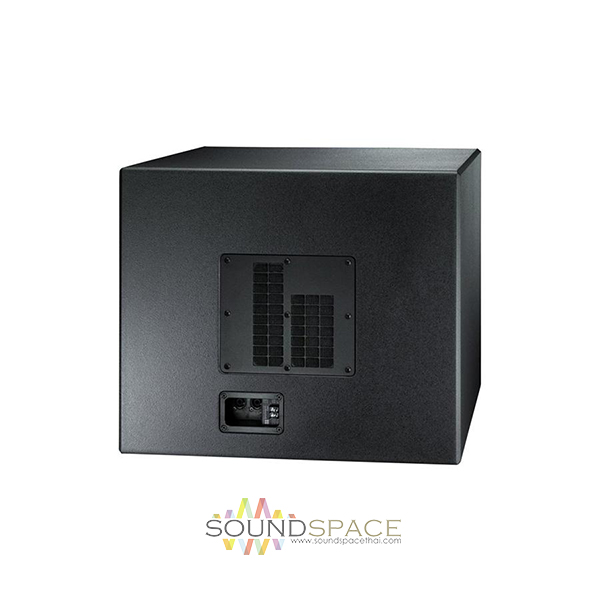

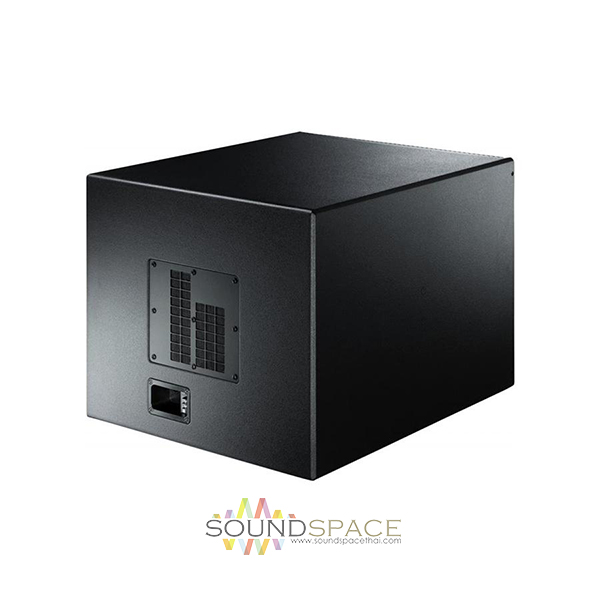

Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific cardioid subwoofer
• 15″ driver with neodymium magnet front
• 12″ driver with neodymium magnet rear
• Power Handling Capacity (RMS/Peak 10 Ms) 500/2000 W
• ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz
• Nominal impedance 6 Ω, Max SPL 131 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 27S-SUB. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
