ลำโพง d&b audiotechnik xS-Series 12S-D Loudspeaker 12″

Description

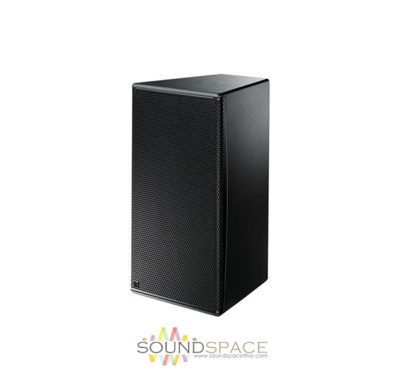

d&b audiotechnik 12S-D 2-Way Installation Loudspeaker/wide dispersion 12″ 300/1600W

ลำโพง d&b audiotechnik xS-Series 12S-D 2-Way/Wide Dispersion ขนาดดอกลำโพง 12″ driver with neodymium magnet 1.4″ compression driver with CD horn, passive crossover network, ทนกำลังขับ 300 วัตต์ RMS/1600 วัตต์ /peak 10 ms) Nominal impedance  8Ω, Dispersion Angle (h x v) 110° x 55° rotatable, Max SPL 133 dB

The biaxial d&b 12S/12S-D are high performance 2-way loudspeakers that house a single 12” driver in a bass-reflex enclosure and different HF sections for a wide range of installed sound applications. Both versions are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. Both loudspeakers are equipped with a 1.4” exit compression driver. With their extended frequency response from 48 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers of the xS-Series.

The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts and the rear panel incorporates two M8 threaded inserts, two NL4 connectors as well as a two pole screw terminal block.

The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation high performance 2-way loudspeaker/Wide Dispersion
• 12″ driver with neodymium magnet
• 1.4″ compression driver with CD horn
• Power handling capacity (RMS/peak 10 ms) 300/1600 W
• dispersion angle (h x v) 110° x 55° rotatable
• Nominal impedance 8 Ω, Max SPL 133 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 12S. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
