ลำโพง d&b audiotechnik xS-Series 10S Loudspeaker 10″

Description

d&b audiotechnik 10S 2-Way Installation Loudspeaker 10″ 200/1200W

ลำโพง d&b audiotechnik xS-Series 10S 2-Way ขนาดดอกลำโพง 10″ driver with neodymium magnet 1.4″ compression driver with CD horn, passive crossover network, ทนกำลังขับ 200 วัตต์ RMS/1200 วัตต์ /peak 10 ms) Nominal impedance 12 Ω, Dispersion Angle (h x v) 75° x 50° rotatable, Max SPL 130 dB

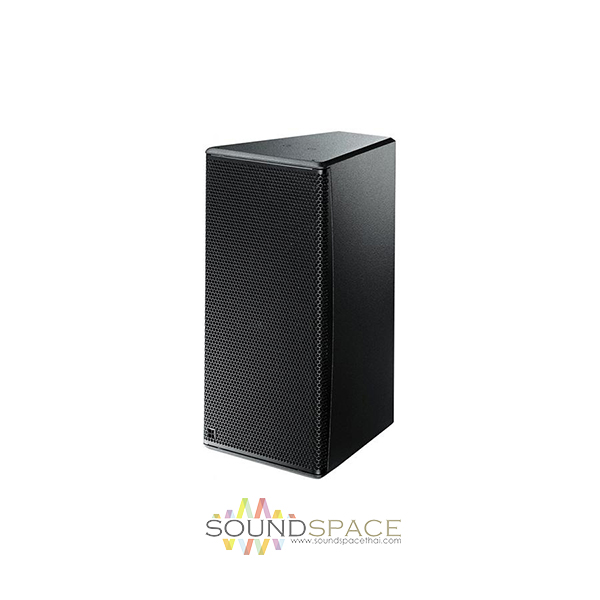

The biaxial d&b 10S/10S-D are high performance 2-way loudspeakers housing a single 10″ driver in a bass-reflex enclosure and different HF sections. They are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. With their frequency response from 60 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers from the xS-Series.

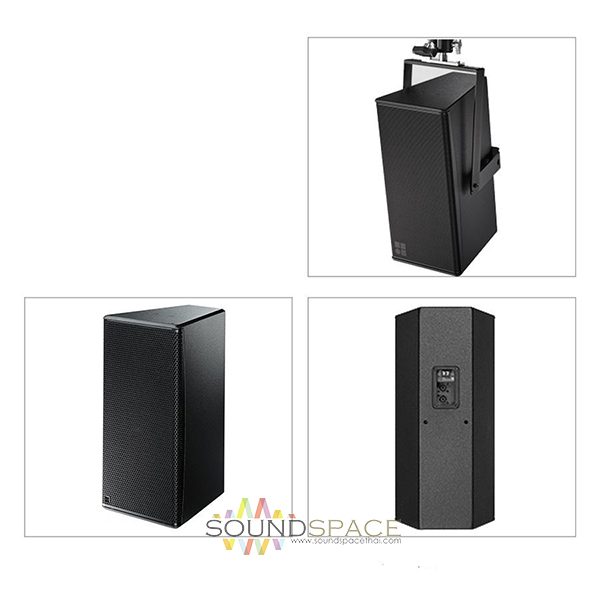

The enclosures are constructed from marine plywood with an impact resistant black paint finish and are Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts, and the rear panel incorporates two M8 threaded inserts, two NL4 connectors as well as a two pole screw terminal block.

The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific 2-way compact coaxial loudspeaker
• 10″ driver with neodymium magnet
• 4″ compression driver with CD horn passive crossover network
• Power handling capacity (RMS/peak 10 ms) 200/1200 W
• dispersion angle (h x v) 75° x 50° rotatable
• Nominal impedance 12 Ω, Max SPL 130 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

**The d&b 30D amplifier is recommended to drive the 10S. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
