ลำโพงซับเบส d&b audiotechnik xA-Series 27A-SUB 1×15″ 1×12″

Description

d&b audiotechnik 27A-SUB Flyable Cardiod Subwoofer (1×15″ 1×12″) 500/2000W

ลำโพงซับเบสแบบแขวน d&b audiotechnik สำหรับงานติดตั้ง d&b audiotechnik 27A ในตระกูล xA-Series เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 15″และ 12″ อย่างละ 1 ดอก, ทนกำลังขับ 500/2000 W (RMS/peak 10 ms) impedance 6 Ω, Max SPL 131 dB ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz

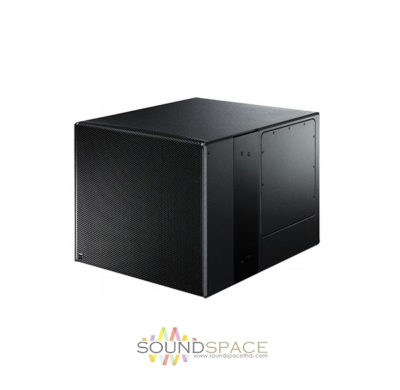

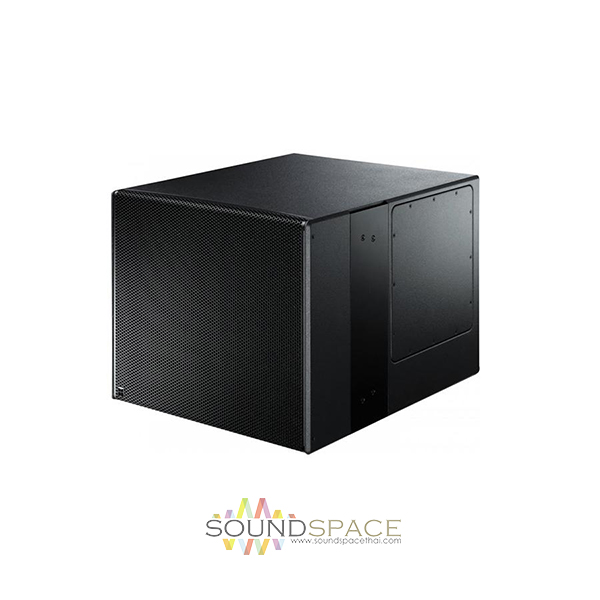

The d&b audiotechnik 27A-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear.

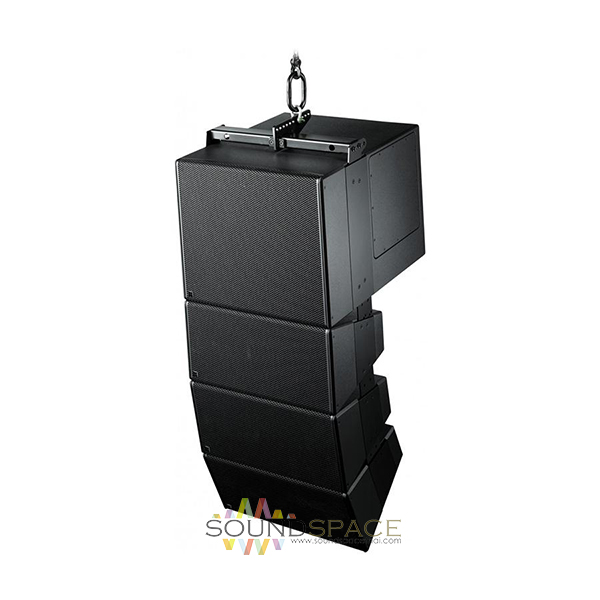

The 27A-SUB can be used stand-alone, stacked or as a base for a mixed ground stack. It can also be combined with 10A and 10AL loudspeakers in vertical flown arrays. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.

The side panels have an integrated rigging system and the rear panel incorporates two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific flyable cardioid subwoofer
• Components 1 x 18″ driver, 1 x 12″ driver
• Power Handling Capacity (RMS/Peak 10 Ms) 500/2000 W
• ตอบสนองความถี่ (–5 dB standard) 40 Hz – 140 Hz
• Nominal impedance 6 Ω
• Max SPL 131 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

The d&b 30D amplifier is recommended to drive the 27A-SUB. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
