ลำโพง d&b audiotechnik xA-Series 10AL-D Line Array Loudspeaker 10″

Description

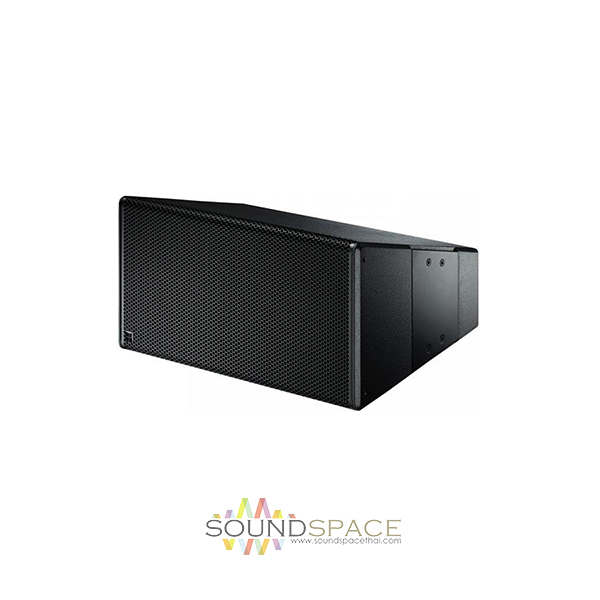

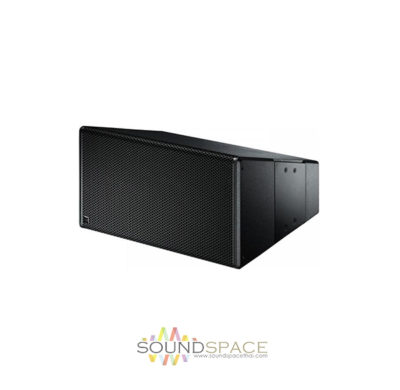

d&b audiotechnik 10AL-D Installation Line Array Loudspeaker 10″ 200W/1200W

ลำโพงแบบแขวนไลน์อาเรย์สำหรับงานติดตั้ง d&b audiotechnik 10AL-D 2-Way Line Array Loudspeaker ขนาดดอกลำโพง 10″ driver with neodymium magnet, 2 x 1″ exit compression drivers with CD horn passive crossover network, ทนกำลังขับ 200/1200 W (RMS/peak 10 ms) impedance 12 Ω, Dispersion 105° Rotatable, Max SPL 132 dB

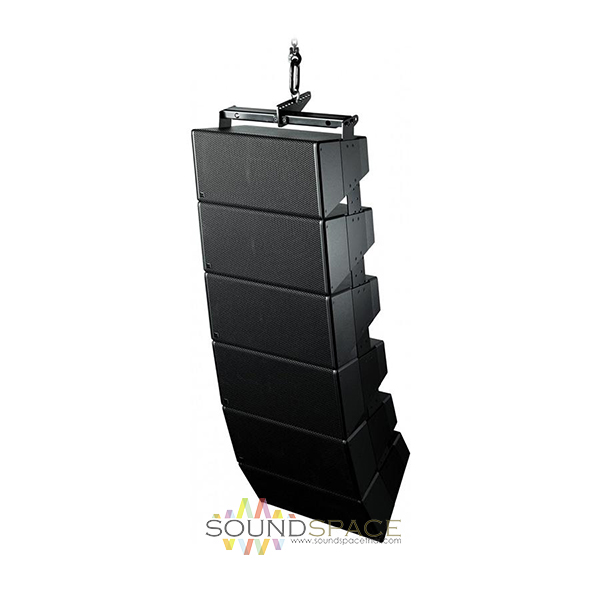

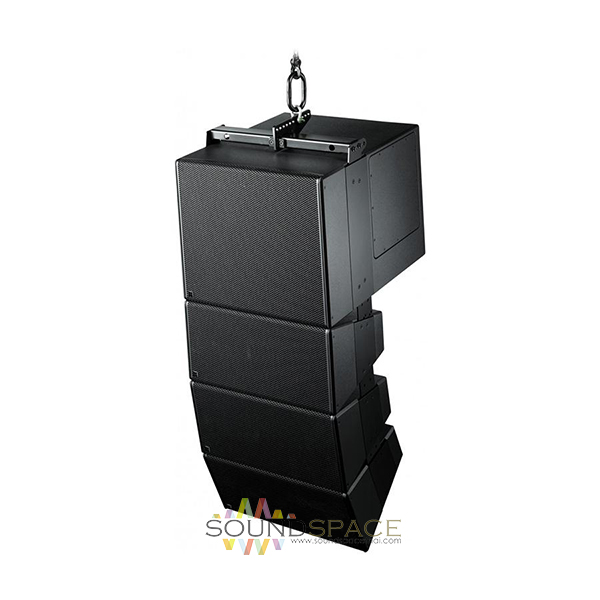

The biaxial d&b audiotechnik 10AL/10AL-D are high performance 2-way line array modules. They employ a single 10” driver in a bass-reflex enclosure and constant directivity HF line sources with either 75° or 105° horizontal coverage respectively using dual 1” exit drivers. They are lightweight passive designs using neodymium drivers and large horns for accurate pattern control. With their frequency response from 60 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by subwoofers from either the xS or xA-Series.

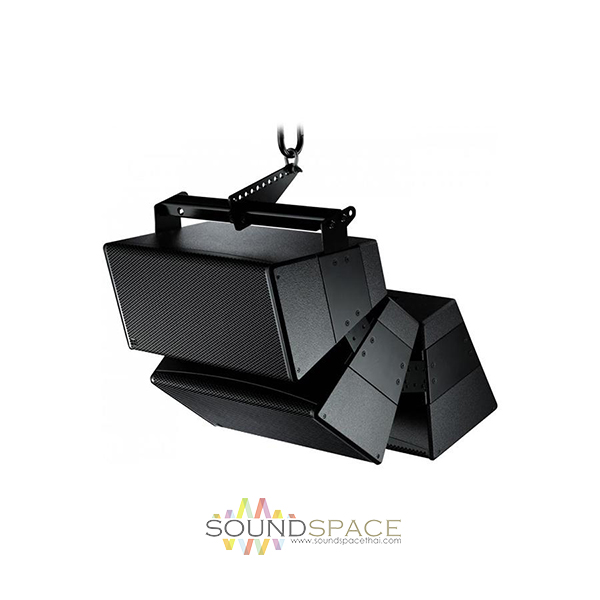

The18A or 27A subwoofers can also be integrated into the array. The enclosures are constructed from marine plywood with an impact resistant black paint finish and are Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The side panels have an integrated rigging system and the rear panel incorporates two NL4 connectors as well as a two pole screw terminal block.

The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP34 rating, and enables operation of loudspeakers in changing ambient conditions.

Features:

• Installation specific 2-way line array loudspeaker with wide dispersion
• 10″ Driver With Neodymium Magnet 2 x 1″ exit compression drivers with CD Horn
• Passive Crossover Network
• Power Handling (RMS/Peak 10 Ms) 200/1200 W
• Dispersion Angle (Horizontal) 105° Rotatable
• Impedance 12 Ω, Max SPL 132 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

The d&b 30D amplifier is recommended to drive the 10AL-D. The d&b 10D, D20, D80 and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
