ลำโพง d&b audiotechnik V8 V-Series Line Array Loudspeaker 2×10″

Description

d&b audiotechnik V8 3-Way Line Array Loudspeaker 2×10″ 500W

ลำโพงแบบแขวนไลน์อาเรย์ d&b audiotechnik V8 3-Way Line Array Loudspeaker ขนาดดอกลำโพง 2 x 10″ driver / 1 x 8″ driver 2 x 1.4″ exit compression driver passive crossover network, ทนกำลังขับ 500/2000 W (RMS/peak 10 ms) impedance 8 Ω, Dispersion 80° Max SPL 142 dB

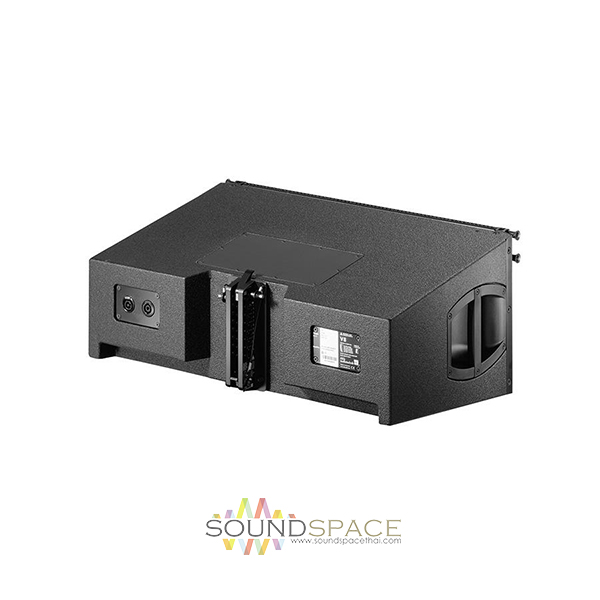

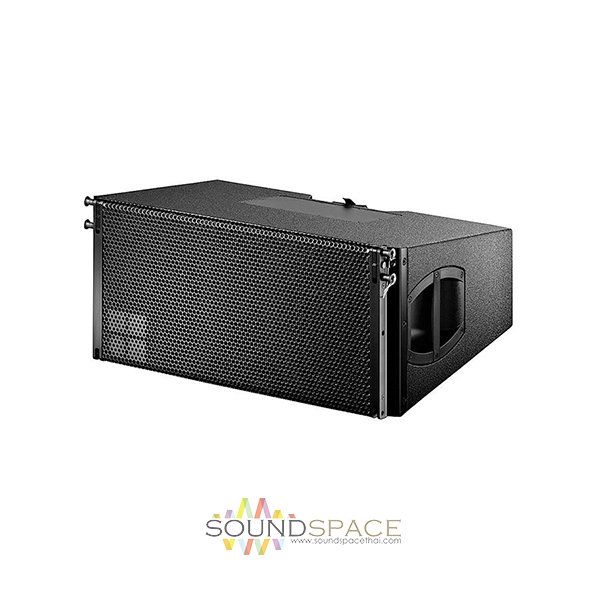

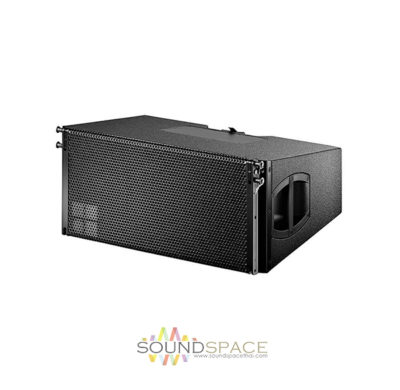

The d&b audiotechnik V8 is a 3-way passive design housing 2 x 10″ LF drivers, one hornloaded 8″ MF driver and two 1.4″ exit HF compression drivers with 2.5″ voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design.

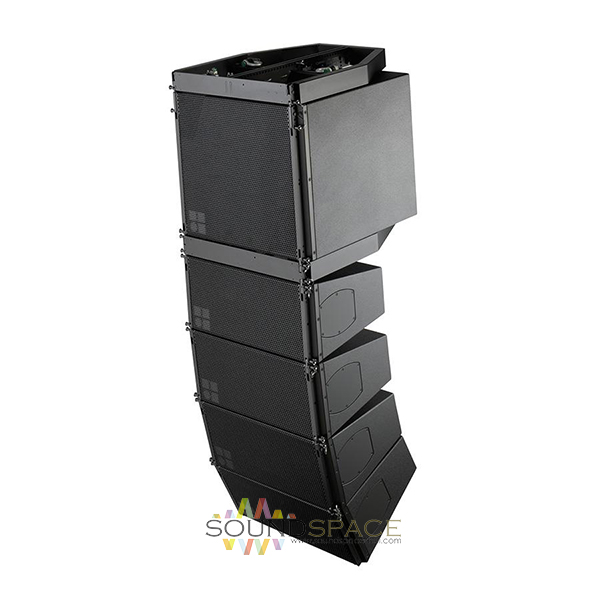

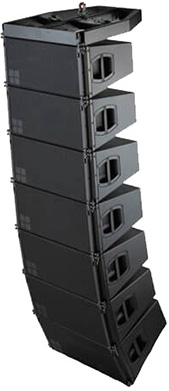

This results in an exceptional 80° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz. The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V8 loudspeakers or combined with V12s and / or with V-SUBs.

The V8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.

Features:

• High performance 3-way passive line array loudspeaker
• 2 x 10″ driver / 1 x 8″ driver 2 x 1.4″ exit compression driver
• Passive Crossover Network
• Power Handling (RMS/peak 10 ms) 500/2000 W
• dispersion angle (horizontal) 80°
• impedance 8 Ω, Max SPL 142 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

The d&b D80 amplifier is recommended to drive the V8. The d&b D20 and 30D amplifiers can also be used with the appropriate loudspeaker configuration selected.
