ลำโพง d&b audiotechnik T10 T-Series Line Array Loudspeaker 2×6.5″

Description

d&b audiotechnik T-Series T10 Line Array Loudspeaker 2×6.5″ 200W

ลำโพงแบบแขวนไลน์อาเรย์ d&b audiotechnik T10 ในตระกูล T-Series เป็นตู้ลำโพงที่มีขนาดดอกลำโพง 2 x 6.5″ driver with neodymium magnet 1.4″ exit compression driver on rotatable waveguide, passive crossover network, ทนกำลังขับ 200/800 W (RMS/peak 10 ms) impedance 16 Ω, Dispersion 90° x 35° Max SPL 132 dB

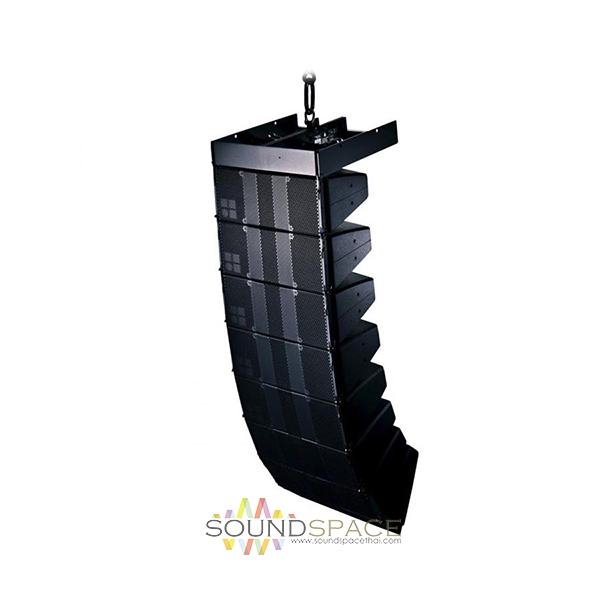

The d&b audiotechnik T10 is a passive 2-way loudspeaker housing two 6.5″ drivers positioned in a dipolar arrangement and a 1.4″ HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz.

An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern.

The T10 cabinet is constructed from polyurethane integral hard foam, incorporates integrated line array rigging hardware and has an impact resistant finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.

Features:

• 2-way loudspeaker with rotatable horn for point and line source operation
• Components 2 x 6.5″ driver with neodymium magnet 1.4″ exit compression driver on rotatable waveguide
• Power handling capacity (RMS/peak 10 ms) 200 /800 W
• Dispersion Angle (Point Source, H X V) 90° X 35°
• Impedance 16 Ω, Max SPL 132 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach. The d&b D20 and 30D amplifiers are recommended to drive the T10. The d&b D80, 10D and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
