ลำโพงซับเบส d&b audiotechnik T-SUB T-Series Line Array Subwoofer 15″

Description

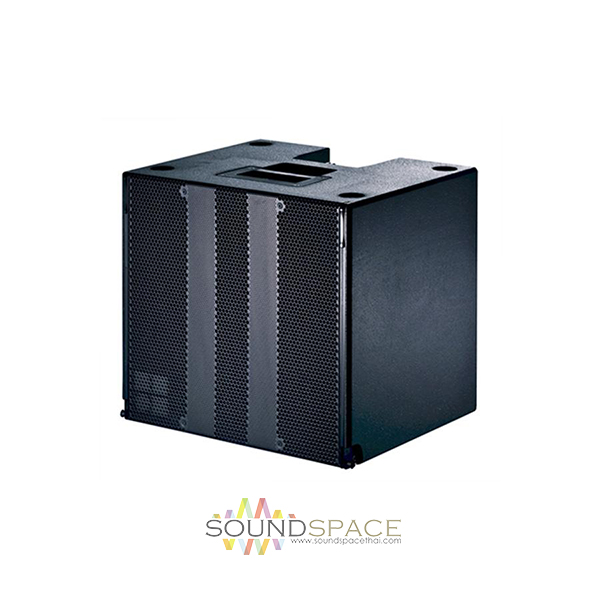

d&b audiotechnik T-SUB Compact Flyable Subwoofer 15″ 300W

ลำโพงซับเบสแบบแขวน d&b audiotechnik T-SUB Compact Flyable Subwoofer เป็นตู้ซับเบสที่มีขนาดดอกลำโพง 15″ driver with neodymium magnet, ทนกำลังขับ 300/1600 W (RMS/peak 10 ms) impedance 8 Ω, ตอบสนองความถี่ (–5 dB standard) 47 – 140 Hz, Max SPL 130dB

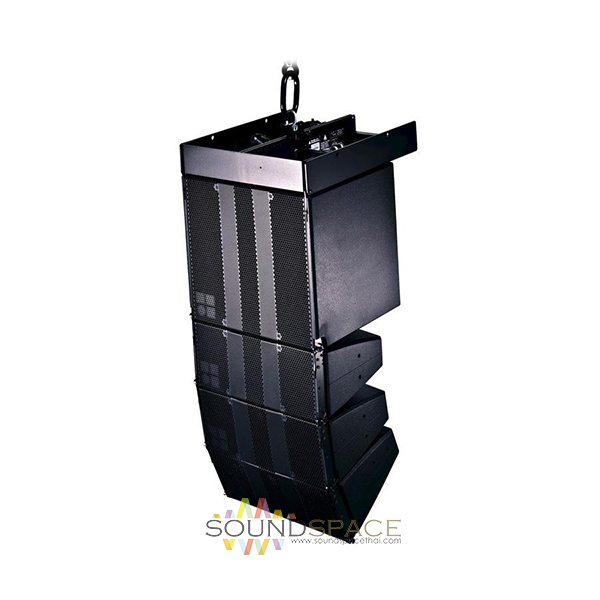

The d&b audiotechnik T-SUB is an actively driven bass-reflex loudspeaker fitted with a high excursion 15″ driver. d&b SenseDrive technology is available when powered by the D12 amplifier. It can be used to supplement the LF headroom of the T10 loudspeaker in various combinations, ground stacked or flown, either integrated on top of a T10 array or as a separate column.

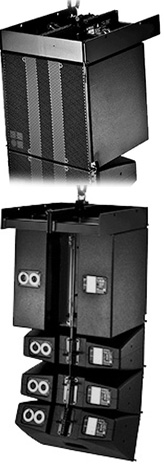

The loudspeakers are mechanically connected using rigging links on both sides of the cabinet front, which slide out when needed, and with a central splay link at the rear of the cabinet. The T-SUB cabinet is constructed from marine plywood with an impact resistant paint finish and a handle in the top panel.

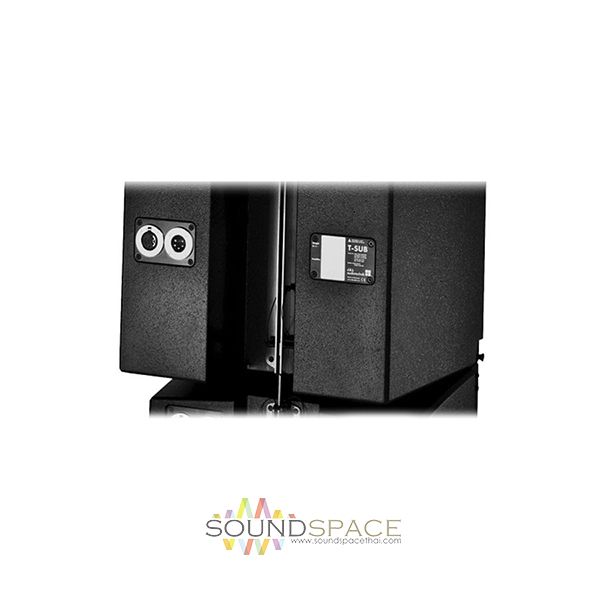

The front of the loudspeaker cabinet is protected by a rigid metal grill in front of an acoustically transparent foam and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.

Features:

• Compact flyable subwoofer
• Components 15″ driver with neodymium magnet
• ตอบสนองความถี่ (–5 dB standard) 47 – 140 Hz
• Power handling capacity (RMS/peak 10 ms) 300 /1600 W
• Impedance 8 Ω
• Max SPL 130 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach.

The d&b D20 and 30D amplifiers are recommended to drive the T-SUB. The d&b D80, 10D and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected.
