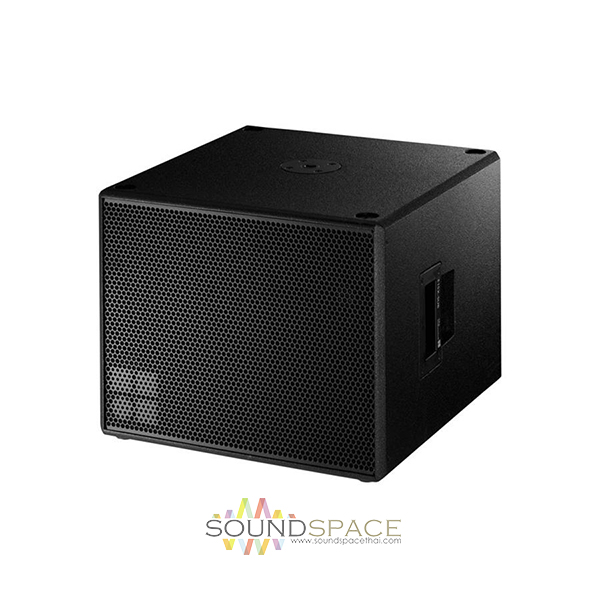

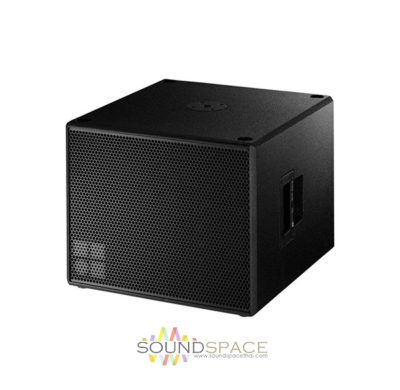

ลำโพงซับเบส d&b audiotechnik E15X-SUB E-Series Subwoofer 15″
ลำโพงซับเบส d&b audiotechnik E15X-SUB Compact Subwoofer ขนาดอดลำโพง 15 นิ้ว driver ทนกำลังขับ 300 วัตต์ RMS/1600 วัตต์ /peak 10 ms) impedance 8 Ω
ปรึกษา-ออกแบบระบบ Contact Us 086-3114142
Description
d&b audiotechnik E15X-SUB Compact Subwoofer 15″ 300W
ลำโพงซับเบส d&b audiotechnik E15X-SUB Compact Subwoofer ขนาดอดลำโพง 15 นิ้ว driver ทนกำลังขับ 300 วัตต์ RMS/1600 วัตต์ /peak 10 ms) impedance 8 Ω, ตอบสนองความถี่ (–5 dB standard) 37 Hz – 140 Hz, Connections 2 x NLT4 F/M optional 2 x EP5 or 2 x NL4
The d&b audiotechnik E15X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E15X-SUB to be operated in parallel to E12 or E12-D loudspeakers on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer.
In Active mode the E15X-SUB can be used to supplement any of the E-Series cabinets. The E15X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a pair of handles and an M20 threaded flange on the top to accept the d&b loudspeaker stand winder. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options.
Features:
- Compact subwoofer 15″ driver
- Dispersion Omni Direction
- Power handling capacity (RMS/peak 10 ms) 300/1600 W
- Nominal impedance 8 Ω
- Max SPL 130 dB
Amplifiers recommended:
The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach. The d&b D20 and 30D amplifiers are recommended to drive the E15X-SUB.
The d&b D80, 10D and D6 amplifiers can also be used with the appropriate loudspeaker configuration selected. When the E12-X configuration is selected an E15X-SUB can be driven passively in parallel with an E12 or E12-D from the same amplifier channel.
Specifications
| System data | |
|---|---|
| Frequency response (–5 dB standard) | 37 – 140 Hz |
| Frequency response (-5 dB 100 Hz mode) | 37 – 100 Hz |
| Max. sound pressure (1m, free field)1 with D6/10D with D20/30D with D80 |
127 dB 130 dB 130 dB |
| Cabinets per amplifier channel | 2 |
| Loudspeaker data | |
|---|---|
| Configuration | Compact subwoofer |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 300/1600 W |
| Components | 15″ driver passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x EP5 or 2 x NL4 |
| Dimensions, weight | |
|---|---|
| Dimensions (H x W x D) | 426 x 530 x 550 mm 16.8 x 20.9 x 21.7″ |
| Weight | 24 kg 53 lb |
1 SPL max peak test signal: pink noise with crest factor 4
Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
