ไมค์ปรีแอมป์ Cranborne Audio Camden EC2 Preamp, Headphone Mixer
ปรีแอมป์ไมค์และ Headphone Mixer, Cranborne Audio Camden EC2, 2-Channel Mic/Line/Instrument Preamp & Headphone Mixer with Highpass Filter and Variable Coloration, C.A.S.T. Out port for connecting Camden EC2 to 500R8/500ADAT
ไม่รวมภาษีมูลค่าเพิ่ม…
฿60,400.00 ฿45,300.00
Description

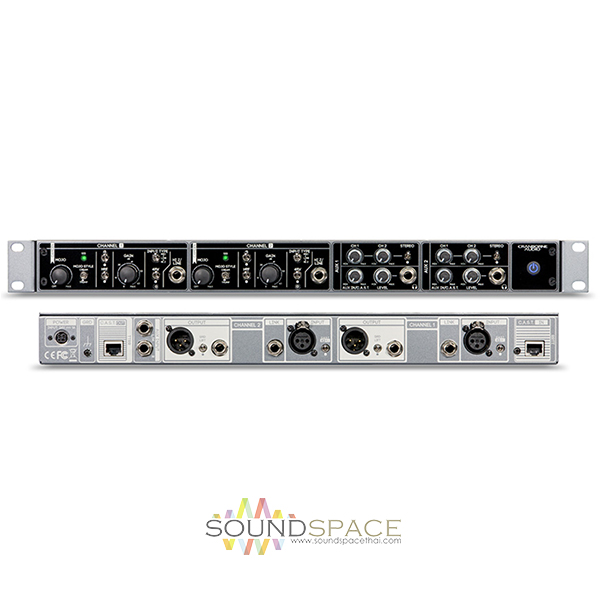

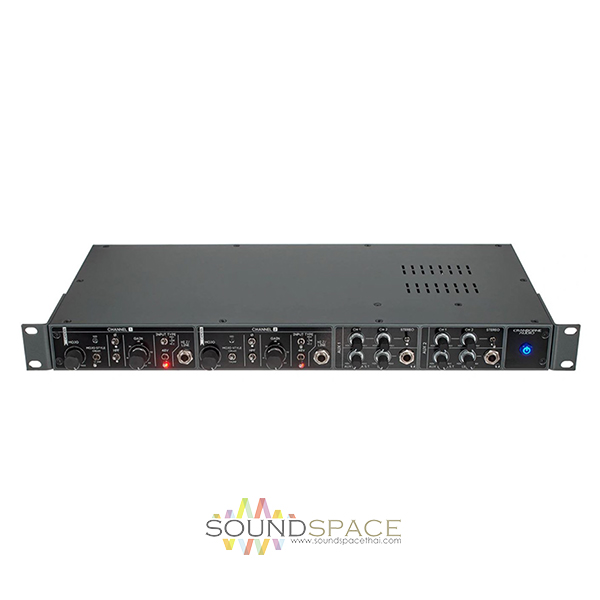

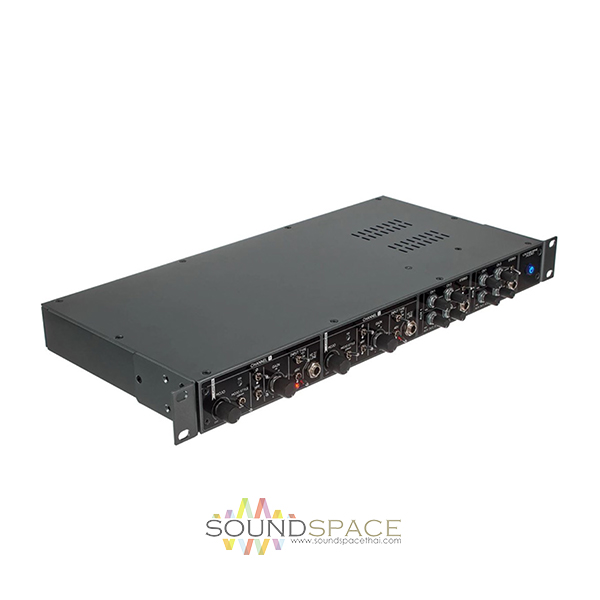

Cranborne Audio Camden EC2 Two Channel Preamp, Signal Processor, and Dual Headphone Mixer
ปรีแอมป์ไมค์และ Headphone Mixer, Cranborne Audio Camden EC2, 2-Channel Mic/Line/Instrument Preamp & Headphone Mixer with Highpass Filter and Variable Coloration, C.A.S.T. Out port for connecting Camden EC2 to 500R8/500ADAT
The Camden EC2 is a 2-channel mic, line, and instrument preamplifier featuring Cranborne Audio acclaimed Camden preamps, Mojo analog saturation circuits, and dual reference-grade headphone amplifiers with discrete line mixers.
The Camden EC2 rocks truly impressive low-noise and low-distortion performance as well as frequency and phase linearity at all gain settings. The net result is a stunningly clean, pristine, and natural-sounding preamp that delivers every source as a neutral canvas you can paint with your choice of analog and digital processing.
But when you want punchy vintage tonal character, that’s where Cranborne’s Mojo circuit comes in.
Features:
- 2 discrete, ultra-clean mic/line/hi-Z preamps with acclaimed Camden topology
- Performance at near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settings
- 2 bypassable Mojo saturation circuits with Thump/Cream analog saturation types
- 2 discrete headphone mixers with independent channel and Aux input level controls
- 2 high-power, reference-grade headphone amplifiers

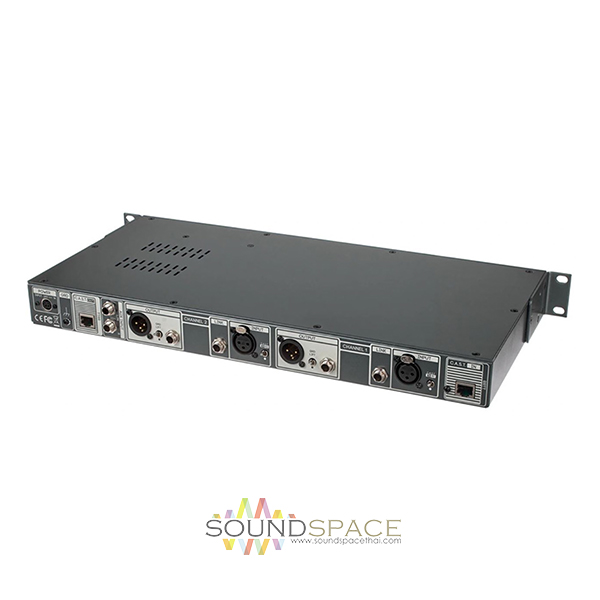

- Balanced XLR outputs plus impedance-balanced 1/4-inch outputs for maximum connectivity
- Dedicated impedance-balanced 1/4-inch Link outputs for splitting instrument DIs to balanced/unbalanced amps and effects
- Selectable 48V phantom power
- C.A.S.T. Out port for connecting Camden EC2 to 500R8/500ADAT
- C.A.S.T. In port for connecting N22/N22H Cat 5 snakes for remote I/O
- External high-current 24V power supply with latching connector
Specifications
| All specifications are typical performance unless otherwise noted. All specifications are subject to change at any time. Tested with Audio Precision APx555. | |
| Preamp | |
| Test Signal Path | APx555 (Line Out) – Input 1 – Line Output – APx555 (Line In) |
| Input Impedance | Mic= 8.9 kOhms 48v Off, 5.4 kOhms 48v ON, Line = 24.3 kOhms, Hi-Z= 1.5 MOhm Unbalanced, 3 MOhm Balanced |
| Max Input Level | Mic = +17.6dBu (<0.003% THD), Line = +26.5dBu (<0.02% THD), Hi-Z = +24dBu (<0.02% THD) |
| Minimum Gain | Mic= 8dB, Line = 0dB, Hi-Z = 3dB |
| Maximum Gain | Mic = 68dB, Line = 60dB, Hi-Z = 63dB |
| Equivalent Input Noise (EIN) | <-129.5dBu (150 Ohm source, unweighted), <-131dBu (150 Ohm source, A-weighted), <-135.5dBu (Inputs common, unweighted) |
| Frequency Response | ±0.7dB (<1 Hz to >1000 kHz, Min Gain), ±0.7dB (<1 Hz to >1000 kHz, 35dB Gain), ±1dB (<1.5 Hz to 900 kHz, 63dB Gain), ±1dB (<5 Hz to >200 kHz, Max Gain) |
| Phase Shift | <2.75° (20Hz to 20kHz, 40dB Gain), <4° (20Hz to 20kHz, 63dB Gain), <6° (20Hz to 20kHz, Max Gain) |
| THD+N | <0.00025% (1kHz, 35dB Gain, +24dBu out) |
| Intermodulation Distortion | <0.0006% (50Hz and 7kHz, 35dB gain, +20dBu out), <0.0005% (50Hz and 7kHz, 35dB gain, +15dBu out) |
| Hi-Pass Filter (HPF) | 80Hz, -3dB, 12dB/Oct |
| CMRR | >70dB, typ >85dB, 35dB gain, 10-20kHz, 100mV Common mode |
| Slew Rate | 20V/uS, 35dB gain, +25dBu out |
| 48v LED Thresholds | Off = 48v Off, voltage fully discharged
Amber = 48v voltage charging/discharging Red = 48v fully charged |
| Signal LED Meter Thresholds | Blue = -20dBu Green = -12dBu Amber = +21dBu Red = +24dBu |
| Max Output Level | Balanced XLR = +27.5dBu (<0.002% THD, 30dB Gain) Impedance Balanced ¼” Jack = +21.5dBu (<0.002% THD, 30dB Gain) |
| Output Impedance | Balanced XLR = 150 Ohm Impedance Balanced 1/4” Jack = 150Ohm Balanced, 75 Ohm Unbalanced |
| Link Max Output Level | Impedance Balanced 1/4” Jack = +21.8dBu (<0.006% THD) |
| Link Output Impedance | Impedance Balanced 1/4” Jack = 75 Ohm Unbalanced, 150 Ohm Balanced (Buffered Output) |
| Headphone Amplifier | |
| Test Signal Path | APx555 (Line Out) – AUX Input – Headphone Output – APx555 (Line In) |
| Frequency Response | -1dB, <1Hz to >70kHz |
| THD | <0.0006% (-104.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load |
| THD+N | <0.00085% (-101.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load |
| Output Impedance | 0.33 Ohms |
| Output Wattage | 250mW x 2 @ 600 Ohms, 1kHz |
| 650mW x 2 @ 220 Ohms, 1kHz | |
| 1.21W x 2 @ 100 Ohms, 1kHz | |
| 500mW x 2 @ 32 Ohms, 1kHz | |
| Dynamic Range | 114.5dB A-weighted, AES17 method, 20Hz – 20kHz, 300 Ohm load |
| Noise Floor | -93.5dBu A-weighted, 20Hz – 20kHz, 300 Ohm load |
| Power | |
| AC Requirements | 100V – 240V AC, 50 – 60 Hz |
| Total Power Consumption | 24v, 1.25A DC, 30W |
| Environmental | |
| Operating Temperature | +1 to 35 degrees Celsius |
| Storage Conditions | -20 to 50 degrees Celsius |
| Dims/Weights | |
| Unit | |
| Width | 481mm (19″) (Rackmount) |
| Height | 44.45mm (1.75″) (1u) |
| Depth | 240mm (9.5″) |
| Unit Weight | 2.8kg (6.2lb) |
| Shipping Carton | |
| Width | 600mm (23.6″) |
| Height | 120mm (4.7″) |
| Depth | 350mm (13.8″) |
| Carton Weight | 4.1kg (9lb) |
