สายสัญญาณ CANARE L-2B2AT Audio Twisted Pair Cable (200 M)
สายสัญญาณเสียง CANARE L-2B2AT Audio Twisted Pair Cable, Internal drain wire eliminates the need for line termination work, 100% foil shield coverage with drain wire, Built-in Dupont Kevlar 29, เหมาะสำหรับงาน Rack Wiring (ม้วน 200 เมตร)
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..เป็นราคาต่อม้วน (200 เมตร)
฿7,800.00
Description

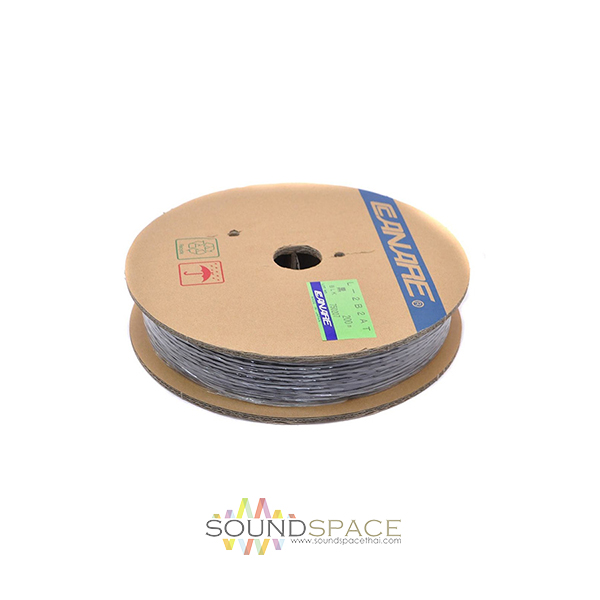

CANARE L-2B2AT Audio Twisted Pair Cable (ม้วน200 เมตร)
สายสัญญาณเสียง CANARE L-2B2AT Audio Twisted Pair Cable, Internal drain wire eliminates the need for line termination work, 100% foil shield coverage with drain wire, Built-in Dupont Kevlar 29, เหมาะสำหรับงาน Rack Wiring (ม้วน 200 เมตร)

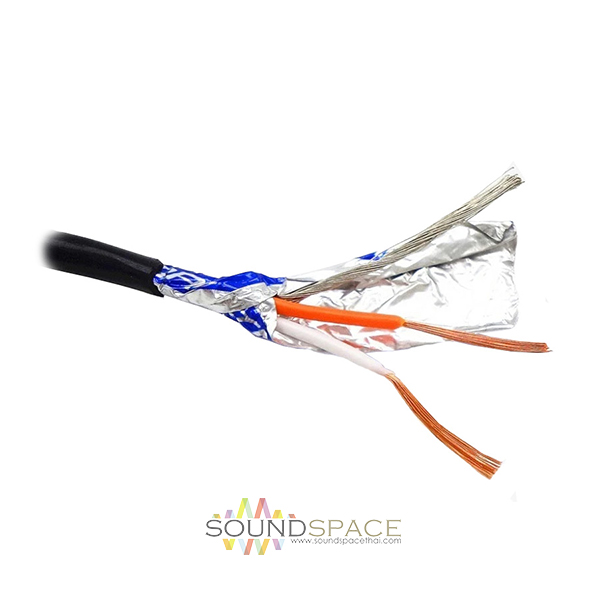

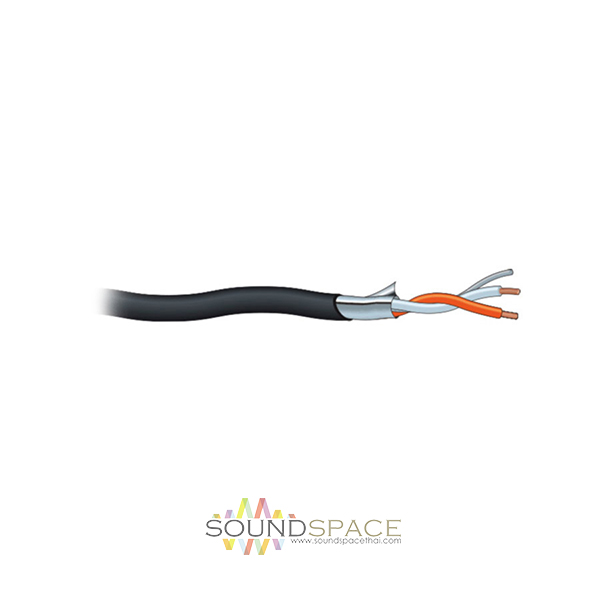

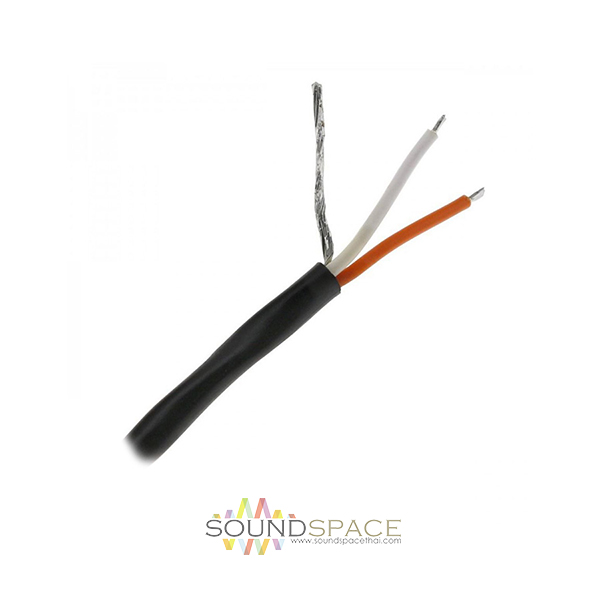

The gray Twisted Pair Microphone Cable from Canare is a thin-profile audio hookup wire that measures 656′ in length. This cable is very flexible and features a 100% foil shield, drain wire, and PVC jacket, which strips easily for rapid assembly.
This microphone cable is suitable for large cable harness bundles, mixing consoles, tape machines, and inner-rack wiring. This is cable belongs to the L-2B2AT Twisted Pair Microphone cable series.
Features:
- Ideal for internal rack wiring
- Internal drain wire eliminates the need for line termination work
- 100% foil shield coverage with drain wire
- Built-in Dupont Kevlar 29
- Cross-linked PE insulation
- Reduced handling noise
- Rejects EMI & RFI
- gray finish
Specifications
| Applications | Microphones, permanent installations, audio patch cords, PA systems, post-production suites, and recording studios |
| Mechanical/Electrical | |
| Outer Diameter | Nominal: 0.126′ (3.2 m) |
| Nominal Jacket Thickness | 0.012′ (0.3 m) |
| Number of Conductors | 2x |
| Conductor | AWG (AC): 25 (16 / 4.73 quantity / mm) Cross-Sectional Area: 279 mm² |
| Pitch Twist Quad | <0.99″ (<25 mm) |
| Shield Coverage | 100% Aluminum tape |
| Conductor D.C.R. | <31.9′ Ω / 1000′ (<10.5 Ω / 100 m) |
| Nominal Capacitance | Between Conductors: 23 pF / 1000 (73 pF / 100 m) Between Conductors to Shield: 37 pF / 1000′ (120 pF / 100 m) |
| Brittle Point | -13°F (-25°C) |
| Length | 656′ (200 m) |
| Weight | 6 lb (3 kg) |
Downloads
ดาวน์โหลด Data Sheet CANARE L-2B2AT
