เพาเวอร์แอมป์ BOSE PowerMatch PM8500N Power Amplifier

Name: เพาเวอร์แอมป์ BOSE PowerMatch PM8500N Power Amplifier
Price: 195690.00 THB
Availability: InStock

เพาเวอร์แอมป์ 8 ชาแนล BOSE PowerMatch PM8500N 8-ch Power Amplifier, 8 x 500W at 4 ohms, Amp with QuadBridge Technology, ControlSpace Designer Software, Dual Voltage, Auto-standby/Wake, and Networking

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม..

฿195,690.00

สอบถามและสั่งซื้อสินค้า

Category: เพาวเวอร์มิกเซอร์ (Power Mixer) Tag: BOSE

Description

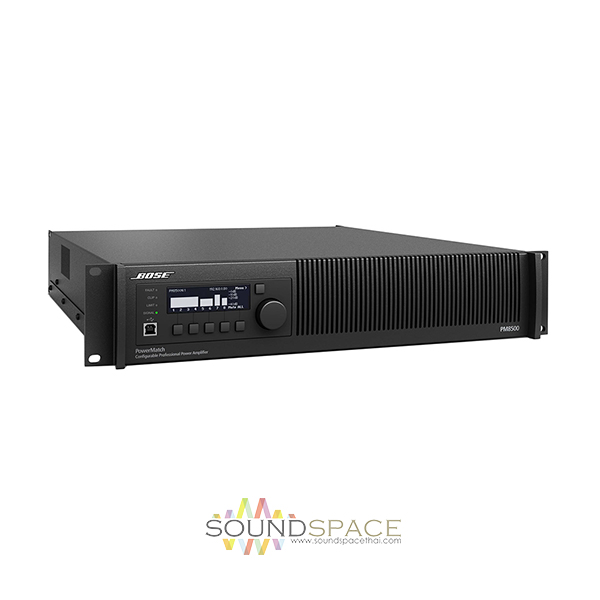

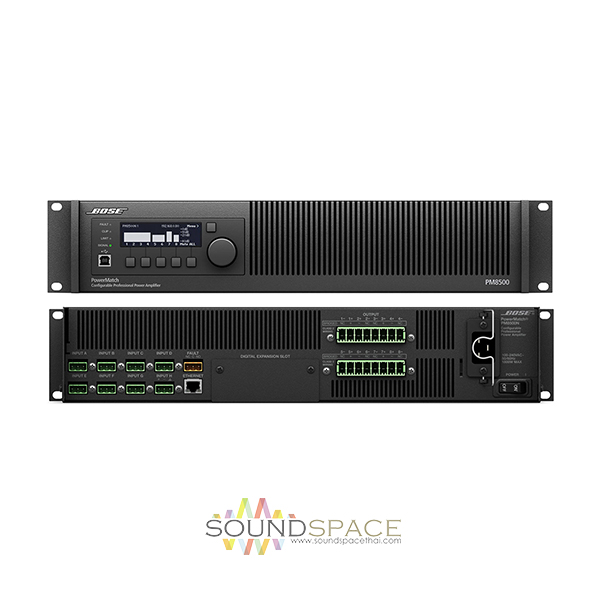

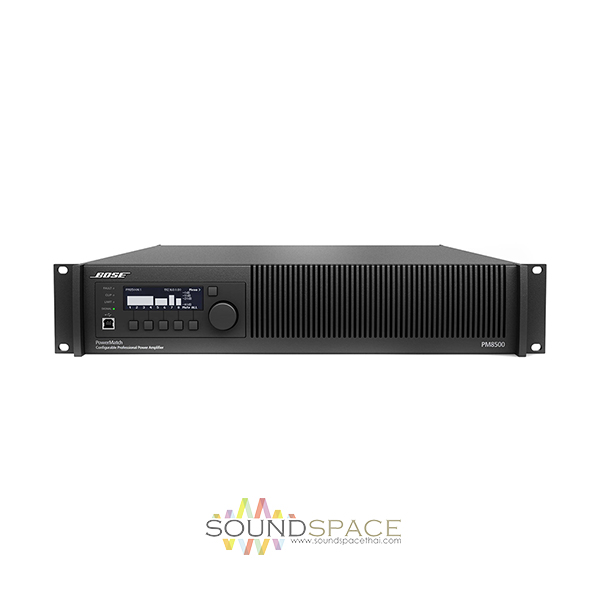

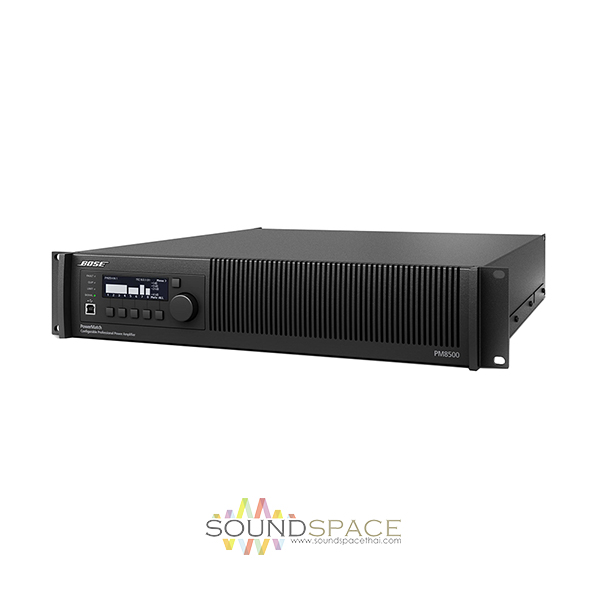

BOSE PowerMatch PM8500N Power Amplifier 8x500W

The Bose® PowerMatch PM8500N configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems.

Ethernet-based networking enables configuration, control and monitoring, and an expansion slot supports input from optional digital audio accessory cards. PowerMatch amplifiers utilize numerous Bose technologies to deliver an unprecedented combination of performance, efficiency and ease of installation all in a reliable, proprietary design.

Features:

QuadBridge technology gives you unbelievable configurability
ControlSpace Designer software provides access to additional features
Dual voltage and current feedback loop delivers remarkable sound quality
PeakBank power supply gives you sustainable low-frequency response
Fast-tracking power factor correction (PFC) tames power fluctuations
Auto-standby/auto-wake function conserves power
Ethernet connectivity for network control and monitoring of multiple N-version amplifiers

Specifications

General

Product Type

Power amplifier

Audio System

Functions	Amplifier
Amplifier Class	D
Audio D/A Converter	24bit / 48kHz
Digital Sound Processor (DSP)	Yes
Audio Specifications	Amplifier – Response Bandwidth – 20 – 20000 Hz – SNR – 102 dB – THD – 0.4%
Output Power / Total	4000 Watt
Amplifier Output Details	450 Watt – 2 Ohm – THD 0.1% – 8 channels 500 Watt – 4 Ohm – THD 0.1% – 8 channels 300 Watt – 8 Ohm – THD 0.1% – 8 channels 1000 Watt – 2 Ohm – THD 0.1% – 4 channels (bridged) 1000 Watt – 4 Ohm – THD 0.1% – 4 channels (bridged) 1000 Watt – 8 Ohm – THD 0.1% – 4 channels (bridged) 800 Watt – THD 1% – 4 channels (70V bridged) 1000 Watt – THD 1% – 4 channels (100V bridged) 1600 Watt – THD 1% – 2 channels (70V quad bridged) 2000 Watt – THD 1% – 2 channels (100V quad bridged)
Features	Thermal protection, short circuit protection, DC protection, over current protection, over voltage protection, high frequency protection, 70V/100V or 2/4/8 Ohm operation
