ตู้ลำโพง BOSE 802 Series V Installed Loudspeaker
ลำโพงติดผนังแบบไม่มีกำลังขยายในตัว BOSE Panaray 802 Series V ในตู้ประกอบด้วยดอกลำโพงขนาด 4.5 นิ้ว full-range drivers 8 ดอก, Power Handling, long-term continuou 240 W Peak 960 W, 120° × 100° coverage pattern
ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ…..
฿38,000.00
Description
BOSE 802 Series V Installed Sound Reinforcement Loudspeaker
ลำโพงติดผนังแบบไม่มีกำลังขยายในตัว BOSE Panaray 802 Series V ในตู้ประกอบด้วยดอกลำโพงขนาด 4.5 นิ้ว full-range drivers 8 ดอก, Power Handling, long-term continuou 240 W Peak 960 W, 120° × 100° coverage pattern, IP55 weather-rated for durability in indoor and outdoor installations
One of the best-selling sound reinforcement loudspeakers of all time returns. The Bose Professional 802 Series V features eight 4.5” full-range drivers that deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency.
The proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers.
The rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations, and flexible mounting options allow for easy, secure installations in various configurations.
Features:
- Eight 4.5-inch full-range drivers deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency
- Proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers
- 52 Hz – 15 kHz frequency range provides full-range audio without the need for subwoofers at moderate sound levels
- High 123 dB peak SPL capacity means powerful sound reinforcement in demanding environments
- Rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations
- Flexible mounting options including threaded inserts for easy, secure installations in various configurations
Specifications
| Single-Loudspeaker Performance | ||
| Frequency Range (-10 dB) 1 | 52 Hz – 15,000 Hz | |
| Nominal Coverage Pattern | 120° Horizontal × 100° Vertical | |
| AES Transducer Test 4 | Bose Professional Extended-Lifecycle Test 5 |
|
| Power Handling, Long-Term Continuous | 300 W | 240 W |
| Power Handling, Peak | 1200 W | 960 W |
| Sensitivity (SPL / 1 W @ 1 M) 2 | 92 dB | 92 dB |
| Calculated Maximum SPL @ 1 M, Continuous 3 | 117 dB | 116 dB |
| Calculated Maximum SPL @ 1 M, Peak | 123 dB | 122 dB |
| Loudspeaker EQ | Active EQ Required For Optimal Performance | |
| Recommended High-Pass Protection | 55 Hz With Minimum 12-Db/Octave Filter | |
| Overload Protection | Power-Limiting Circuit, Non-Fused, Automatic Reset | |
| Transducers | ||
| Drivers | 8 × Bose Professional 4.5-In (114 Mm) Full-Range Cone Transducers | |
| Nominal Impedance | 8 Ω | |
| Physical | ||
| Enclosure Material | Mineral-Reinforced Hdpe | |
| Grille | Powder-Coated Steel | |
| Environmental | Outdoors Or Indoors, IP55 Per IEC 60529:2013+COR.1:2019 | |

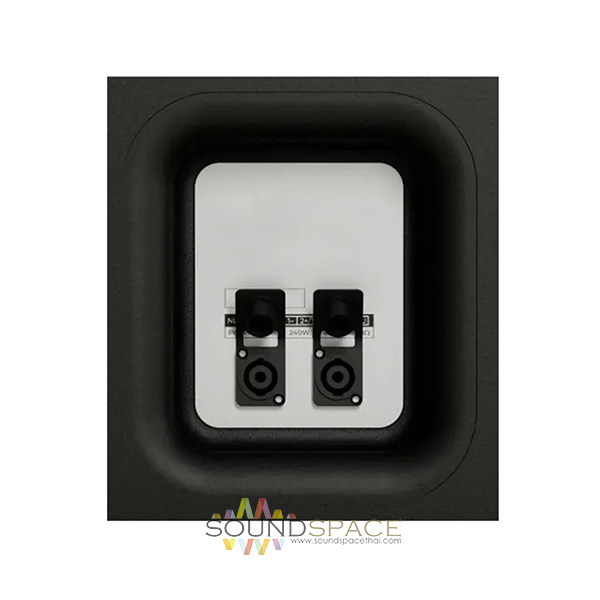

| Connectors | (2) Neutrik® NL4 Wired Parallel | |
| Suspension / Mounting | (8) M8 Threaded Inserts (2 Back, 2 Bottom, 4 Sides) | |
| Product Dimensions (Length × Width × Depth) | 334 Mm × 523 Mm × 318 Mm (13.1 In × 20.5 In × 12.5 In) | |
| Net Weight | 16.7 Kg (36.8 Lb) | |
| Shipping Weight | 19.3 Kg (42.5 Lb) | |
| Package Contents | (1) 802 Series V, (1) Installation Guide | |
| Accessories | 802 U-Bracket, WBP-8 Bi-Pivot Bracket | |
| Product Codes | ||
| 802 Series V, Black | 893554-0100 802 SERIES V OUTDOOR INSTLD LDSPK BLK | |
| 802 U-Bracket | 746686-0110 802 U-BRACKET BLK | |
| WBP-8 Bi-Pivot Bracket | 893802-0100 WBP-8 PAN & TILT WALL BRACKET,BLK | |
Footnotes
1. Frequency range measured on-axis with recommended EQ in an anechoic environment.
2. Sensitivity measured in anechoic acoustic boundary conditions with recommended EQ, referenced to 1 W/m.
3. Maximum SPL calculated from sensitivity and power handling specifications exclusive of power compression.
4. AES component test: pink noise, IEC 268-5 filtered, 6-dB crest factor, 2-hour duration with recommended EQ.
5. Bose extended-lifecycle test: pink noise, IEC 268-5 filtered, 6-dB crest factor, 100-hour duration with recommended EQ.
