ไมค์ประชุมไร้สาย BOSCH DCNM-WD Wireless discussion device
ฐานไมค์ประชุมแบบไร้สายสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล BOSCH DCNM-WD Possible‑to‑speak and request‑to‑speak indication in microphone, Single‑use, dual-use or chairperson can be configured via the web interface
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿59,700.00
Description
BOSCH DCNM-WD Dicentis Wireless Conference Discussion Devices
ฐานไมค์ประชุมไร้สายสำหรับประธานหรือผู้ร่วมประชุมระบบดิจิตอล BOSCH DCNM-WD, Possible‑to‑speak and request‑to‑speak indication in microphone, Single‑use, dual-use or chairperson can be configured via the web interface, Seamless automatic frequency channel switching

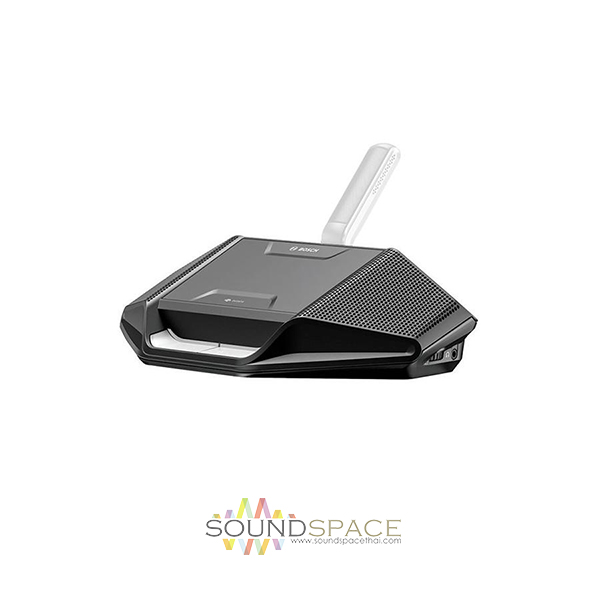

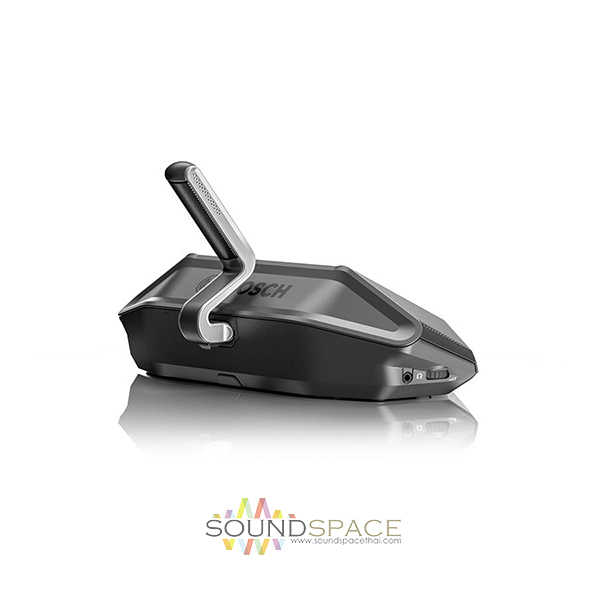

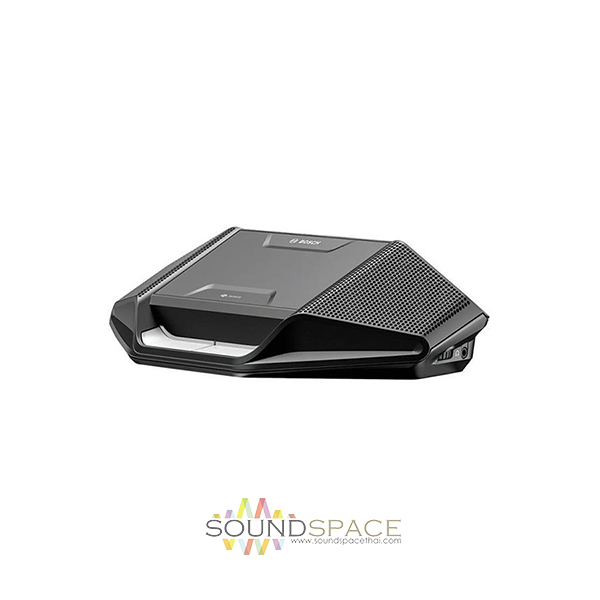

The Bosch DCNM-WD is a wireless device for use with the DICENTIS Wireless Conference System. The DCNMWD enables participants to speak, register a request-to-speak, and listen to the speaker during a meeting via the built in loudspeaker or headphones.
The loudspeaker and microphone can be active at the same time for a face‑to‑face meeting experience. The sound is crystal‑clear due to a very high signal‑to‑noise ratio and smart frequency selection. To prevent acoustic feedback, a feedback suppressor is built‑in. The device can be easily configured as a single-use, dual-use or chairperson Wireless Device via the web interface of the Wireless Access Point (DCNM-WAP).
Features:
- Possible‑to‑speak and request‑to‑speak indication in microphone.
- Single‑use, dual-use or chairperson can be configured via the web interface.
- Audio mute button.
- Operating in the 2.4 GHz and 5 GHz (UNII1, 2 (extended) and 3) (license free)
- Based on standard WiFi.
- Seamless automatic frequency channel switching.
- WiFi coverage area range test, Packet Loss Concealment.
- WPA2 encyption prevents eavesdropping and unauthorized access.
Specifications
| Supply voltage (battery pack) | 7.5 Vdc |
| Power consumption | 4.5 W |
| Operating time DCNM‑WD | > 24 hours (20% speech, 80% listening) |
| Frequency response | 100 Hz – 20 kHz)(-3 dB at nominal level) |
| THD at nominal level | < 0.1 % |
| Dynamic range | > 90 dB |
| Signal‑to‑noise ratio | > 90 dB |
| Headphone load impedance | > 32 ohm <1k ohm |
| Headphone output power | 15 mW |
| WIFI standard | IEEE 802.11n |
| Frequency Range | 2.4 GHz and 5 GHz (ISM license free) |
| Nominal microphone input | 80 dB SPL according IEC60914 |
| Maximum microphone input | 110 dB SPL according IEC60914 |
| Loudspeaker nominal output | 72 dB SPL at 0.5 m |
| Loudspeaker maximum output | 80 dB SPL |
| Headphone nominal output | 0 dBV |
| Headphone maximum output | 3 dBV |
| Mounting | Tabletop |
| Dimensions (H x W x D) without microphone | 72 x 259 x139 mm(2.8 x 10.2 x 5.5 in) |
| Weight:DCNM‑WD DCNM‑WD + Battery Pack | 590 g (1.30 Lb)1051 g (2.32 lb) |
| Color (top and base) | Traffic black (RAL 9017) |
| Operating temperature | 5 ºC to +45 ºC(41 ºF to +113 ºF) |
| Storage and transport temperature | -20 ºC to +70 ºC(-4 ºF to +158 ºF) |
| Relative humidity | < 95 %, > 5% |
