สายสัญญาณเสียง BELDEN 8761 Audio Multi-Pair Cable

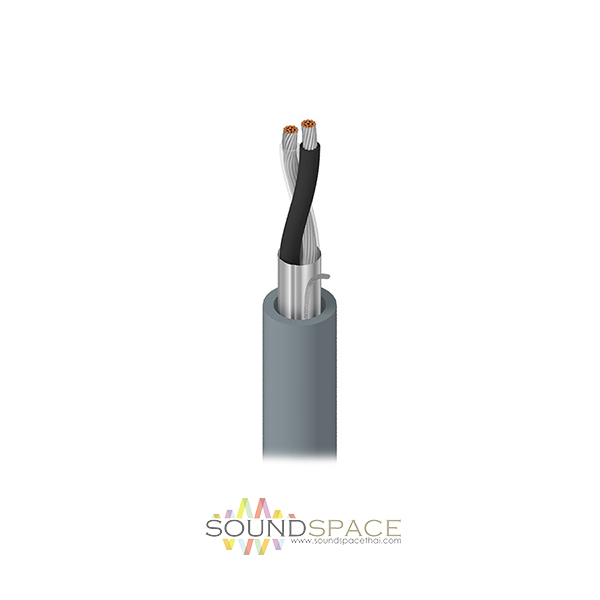

สายสัญญาณออดิโอ BELDEN 8761 เป็นสายสัญญาณเสียงแบบสายชีลด์ 2 ไส้ ขนาด 22AWG (7×30) Tinned Copper, Electronic, 2 Conductor, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM, Applications Audio, Control and Instrumentation

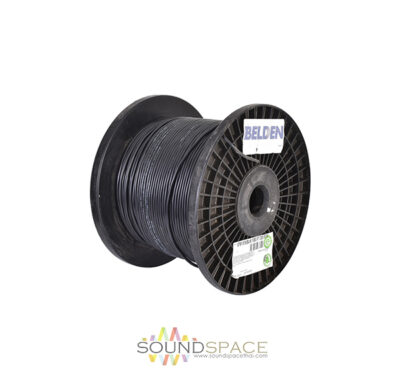

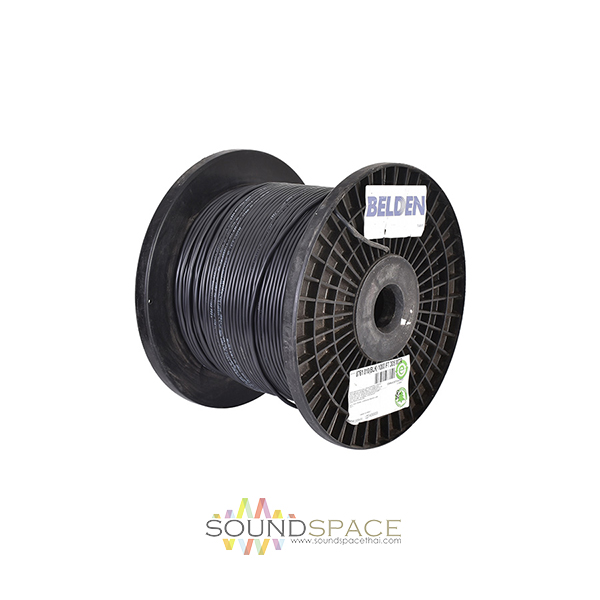

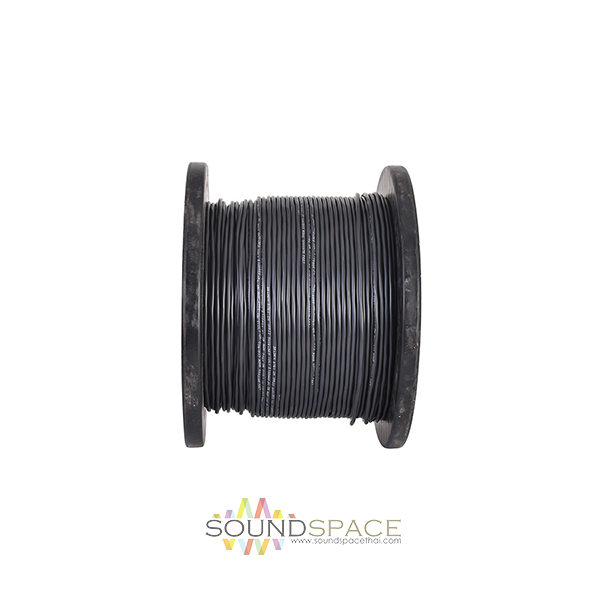

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..เป็นราคาต่อม้วน (305 เมตร)
฿12,000.00
Description
BELDEN 8761 Audio Wiring Multi-Pair Cable
สายสัญญาณออดิโอ BELDEN 8761 เป็นสายสัญญาณเสียงแบบสายชีลด์ 2 ไส้ ขนาด 22AWG (7×30) Tinned Copper, Electronic, 2 Conductor, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM, Applications Audio, Control and Instrumentation
The BELDEN 8761 060U500 from Belden is a multi conductor single pair cable. This cable is UL recognized and CSA certified.
Features:

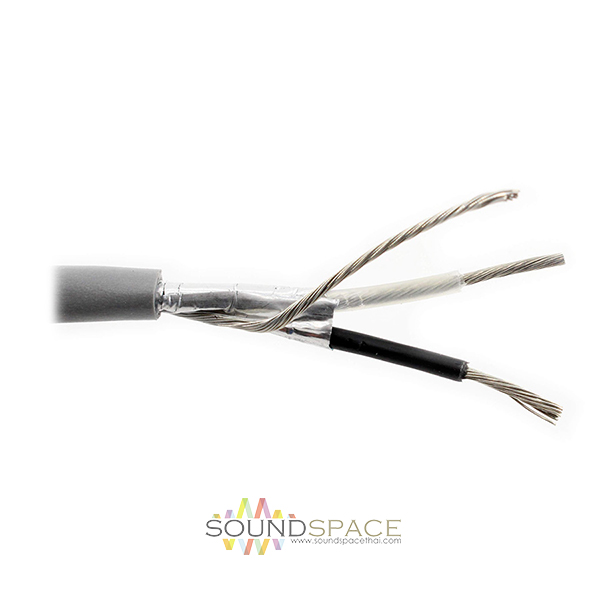

- 22AWG stranded (7×30) tinned copper conductors
- Polyethylene insulation
- Overall Beldfoil shield (100% coverage)
- Polyvinyl chloride (PVC) jacket
- Overall nominal diameter of 0.175inch
- Operating temperature range from -20°C to 60°C
- Nominal characteristic impedance of 64ohm
- Nominal conductor DC resistance of 16ohm/1000ft at 20°C
- Maximum operating voltage of 300Vrms (UL AWM style 2092)
- Maximum recommended current of 2.9A per conductor at 25°C
Specifications
| Temp Range, Operating | -20ºC To +60ºC |
| Temp Rating, Ul | 60ºC (UL AWM Style 2092) |
| Capacitance | 47.000 |
| Capacitance (Metric) | 154.207 |
| Current, Max. Recomm. | 2.9 Amps per conductor @ 25ºC |
| Impedance | 64 |
| Inductance | .200 |
| Inductance (Metric) | 0.6562 |
| Voltage, Max. Operating | 300 V RMS (UL AWM Style 2092) |
| Sku | B-8761-500 |
| Manufacturer | Belden |
| Awm Specification | UL Style 2092 (300 V 60ºC) |
| Cec/C(Ul) Specification | CM |
| Rohs | Yes |
| Eu Ce Mark | Yes |
| Nec/(Ul) Specification | CM |
| Mfr. Part No | 8761 060500 |
| Weight | 9.0000 |
| Type | Paired |
| Conductor Size (Awg) | 22 |
| Conductor Material | TC – Tinned Copper |
| Number Of Pairs | 1 |
| Conductor Stranding | 7×30 |
| Insulation Material | PE – Polyethylene |
| Insulation Wall Thickness | .016 |
| Insulation Wall Thickness (Metric) | 0.4064 |
| Overall Nominal Diameter | 0.175 |
| Outer Jacket Wall Thickness | .025 |
| Outer Jacket Material | PVC – Polyvinyl Chloride |
| Outer Shield Coverage | 100 |
| Outer Shield Material | Aluminum Foil-Polyester Tape |
| Outer Shield Type | Tape |
| Amount | 500 ea |
| Overall Cabling – Overall Nominal Diameter (Metric) | 4.445 |
| Outer Jacket – Nom. Wall Thickness (Metric) | 0.635 |
Downloads
ดาวน์โหลด Data Sheet BELDEN 8761
