อนาล็อคมิกเซอร์แบบเข้าแร็ค Behringer Ultrazone ZMX2600, 2-input 6-bus Rackmount Zone Mixer, Separate 5-segment LED meters for each zone, Stereo/mono switch on each zone sums left and right signal into mono mode
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿6,000.00
อนาล็อคมิกเซอร์แบบเข้าแร็ค Behringer Ultrazone ZMX2600, 2-input 6-bus Rackmount Zone Mixer, Separate 5-segment LED meters for each zone, Stereo/mono switch on each zone sums left and right signal into mono mode

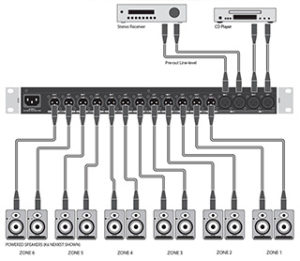

The Behringer ULTRAZONE ZMX2600 rackmount zone mixer is the easy way to pipe audio throughout your facility. It can tackle two inputs, then distribute both signals into six zones, so you can deliver both music programming and announcements into up to six different rooms or locations.
Each line input features level controls for both stereo and mono sources, and each zone output channel possesses separate level controls for each input source.
Sum both channels into mono mode with a Stereo/Mono switch. Keep an eye on your levels with a five-segment LED meter on each zone channel.
The Behringer ULTRAZONE ZMX2600 is an ideal rackmount zone mixer for houses of worship, restaurants, offices, health clubs, and more
Inputs 1 – 2 | |
Type | XLR Balanced, L/R |
Impedance | 44 Kω Balanced / 22 Kω Unbalanced |
Max. Input Level | + 21 Dbu |
Max. Gain | +10 Db |
Crosstalk | > 80 Db @ 1 Khz |
Common-Mode Rejection Ratio (CMRR) | > 40 Db @ 1 Khz, 22 Hz – 22 Khz |
Input Controls | Stereo Input Level Knob |
Input Display | -24 Db, 0 Db, Clip Leds |
Outputs 1 – 6 | |
Type | XLR Servo Balanced, L/R |
Max. Gain | 0 Db |
Max. Gain (Input/Output) | +10 Db |
Impedance | 50 Ω Balanced And Unbalanced |
Maximum Output Level | + 21 Dbu Balanced And Unbalanced |
Crosstalk (L/R) | > 80 Db @ 1 Khz |
Noise (All Level Controls Down) | -104 Dbu A-Weighted |
Signal-To-Noise Ratio | 97 Db @ 0 Db A-Weighted |
Output Controls | Stereo Output Level Knob X2
Mono/Stereo Switch |
Output Display | -24 Db, -6 Db, 0 Db, +6 Db, Clip Leds |
System Data | |
Frequency Response | <10 Hz – 25 Khz ± 0.5 Db |
Distortion (THD+N) | < 0.008 % |
Power Supply | |
Type | Switch-Mode Power Supply |
Voltage | 100-240 VAC, 50/60 Hz |
Power Consumption | 15 W |
Mains Connection | Standard IEC Connector |
Dimensions / Weight | |
Dimensions (H X W X D) | 44 X 483 X 145 Mm (1.7 X 19.0 X 5.7″) |
Weight | 1.7 Kg (3.75 Lbs) |
