อีควอไลเซอร์ BEHRINGER T1951 Graphic Equalizer
เอฟเฟ็ก T19514 band stereo parametric equalizer with hand-selected 12AX7 tubes UTC Ultra Tube Circuitry adds precise dosage of desired tube effect Parallel
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿12,700.00 ฿11,430.00
Description

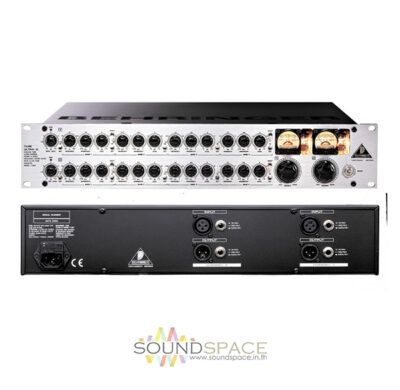

อีควอไลเซอร์ BEHRINGER T1951
เอฟเฟ็ก T19514 band stereo parametric equalizer with hand-selected 12AX7 tubes UTC Ultra Tube Circuitry adds precise dosage of desired tube effect Parallel
The Behringer T1951 Tube Ultra-Q yields absolute control over audio signals, adding liveliness and presence to your music. Its 4 bands have an adjustable width from 0.03 to 2 octaves allowing easy attenuation of problem frequencies as well as creative sound design. Each Ultra Tube circuit features a 12AX7A to lend added warmth to the signal. The lo- and hi-frequency bands can also be used as shelving filters, allowing you to eliminate low-frequency disturbances and high-frequency noise. The Q principal filters ensure that level, frequency, and bandwidth settings do not affect each other, and its parallel filter architecture minimizes phase-shifting problems.
Features:
- 4-band stereo parametric equalizer with hand-selected 12AX7 tubes
- UTC – Ultra Tube Circuitry adds precise dosage of desired tube effect *
- Parallel filter architecture ensures minimal phase shift
- Precision state-variable filters with constant-Q characteristic
- Switchable shelving filter functions remove unwanted frequencies
- Each band can be bypassed and is fully adjustable from notch filter to broadband equalization
- Broad frequency band overlapping allows extreme boost/attenuation
- Relay-controlled hard bypass with auto bypass function in case of power failure
- Servo-balanced inputs and outputs on gold-plated XLR and TRS connectors for highest signal integrity
- Shielded toroidal power transformer for ultra low-noise performance
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
Specifications
Audio input
Connectors XLR and 1/4″ TRS jack
Type RF filtered, servo-balanced input
Impedance 50 kOhm balanced, 25 kOhm unbalanced
Max. input level +21 dBu balanced and unbalanced
CMRR typ. 40 dB, >55 dB @ 1 kHz
Audio output
Connectors XLR and TRS 1/4″ jack
Type electronically servo-balanced output stage
Impedance 60 Ohm balanced, 30 Ohm unbalanced
Max. output level +21 dBu, +20 dBm balanced and unbalanced
System specifications
Bandwidth 18 Hz to 30 kHz, +/- 3 dB
Signal-to-noise ratio >100 dB, unweighted, 22 Hz to 22 kHz
THD 0.002 % typ. @ +4 dBu, 1 kHz, unity gain
IMD 0.01 % typ. SMPTE
Filter section
Type state-variable parametric filter
Level variable (-15 dB to + 15 dB)
Frequency band 1: 20 Hz to 300 kHz
band 2: 60 Hz to 1.2 kHz
band 3: 250 Hz to 5 kHz
band 4: 1 kHz to 20 kHz
Bandwidth variable (0.03 to 2 Octaves)
Function switches/indicators
Audio In/Out relay-controlled hard-wire bypass
Shelf/Peak switches outer bands from shelving to parametric
In/Out activates each filter bank
Peak LED LED indicator of input overload
Warmth variable (+10 dB to +60 dB)
Power supply
Mains voltages USA/Canada 120 V ~, 60 Hz
U.K./Australia 240 V ~, 50 Hz
Europe 230 V ~, 50 Hz
General export model 100 – 120 V ~, 200 – 240 V ~, 50 – 60 Hz
Power consumption max. 35 Watts, Fuse 100 – 120 V ~: T 1 A H, 200 – 240 V ~: T 500 mA H
Mains connection standard IEC receptacle
Physical
Dimension app. 3 1/2″ (89.5 mm) * 19″ (482.6 mm) * 8 1/2″ (217 mm)
Net weight app. 8.0 kg
Shipping weight app. 10 kg
