สเตจบ๊อก BEHRINGER SD16 I/O Stage Box with 8 Preamps

Name: สเตจบ๊อก BEHRINGER SD16 I/O Stage Box with 8 Preamps
Price: 31000.00 THB
Availability: InStock

สเตจบ๊อก BEHRINGER SD16 Stage Box, 16x Remote-Controlled Preamps, 8x Servo-Balanced XLR Outputs, AES50 Networking, Ultranet Personal Monitoring Hub, Dual AES50 Ports for Cascading Units, USB Connector For System Updates, Up to 328′ (100m)

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿31,000.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: BEHRINGER

Description

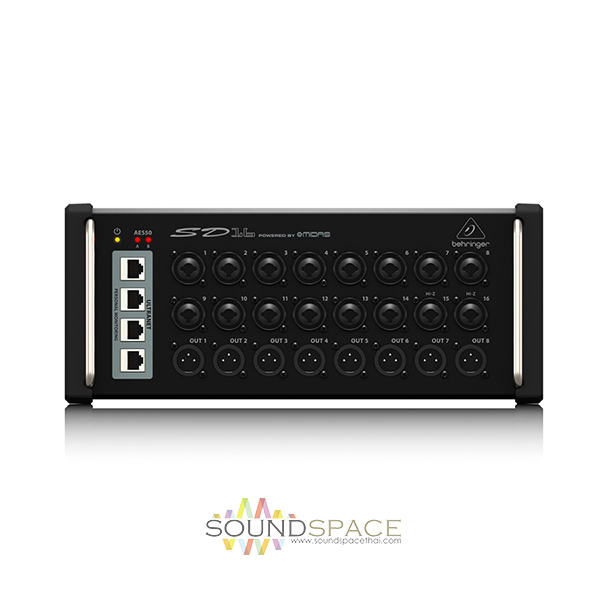

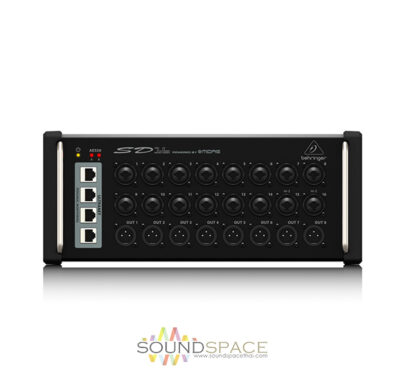

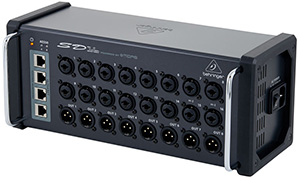

BEHRINGER SD16 I/O Stage Box with 8 Preamps

The Behringer SD16 – I/O Stage Box with 1a6 Preamps is designed to connect the onstage talent to the Front of House (FOH) console. The stagebox provides 16 remote-controlled Midas-designed preamplifiers as well as eight servo-balanced analog XLR outputs. Two of the programmable inputs are compatible with Hi-Z sources so you can connect keyboards, acoustic, and bass guitars, etc. A USB port is included for fast and easy system updates via your PC.

An integrated 2-port Ultranet distribution hub is included for direct connection to the company’s P16-M personal monitor mixers without the need for any additional hard wire. The compact unit features rugged protective bumpers and the option to be rack mounted using the included rack ears.

A single Cat 5e cable connects the stagebox, and up to three stageboxes can be cascaded together for a total of 48 inputs and 24 balanced outputs. An onboard Ultranet distribution hub provides power and 16 channels of audio to two of the company’s Powerplay P16-M personal monitor mixers.

Features:

16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
8 analog, servo-balanced XLR outputs
AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
4-port ULTRANET distribution hub for powered connection of 4 BEHRINGER P16-M personal monitoring mixers
Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
Rack ears and protection bumpers included for installed and mobile applications
Dual AES50 ports for cascading multiple units—no merger or router required
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
USB connector for system updates via PC
Ultra-compact and roadworthy, all-steel chassis
Designed and engineered in Germany

Specifications

Processing
A/D and D/A Conversion	24-bit at 44.1/48 kHz, 114 dB dynamic range
Latency	1.1 ms

Connectors
Preamps	16 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo)
Line Outputs	8 (balanced XLR)
Networking	AES50 SuperMac Networking, Neutrik etherCON: 2
USB	1x type B port (for system updates)
Inputs	48
Outputs	24
RJ45 Connector	Ultranet: 4x

Microphone
Design	Midas
THD + N	<0.005%, A-weighted (20 dB gain, 0 dBu out)
Phantom Power	+48 V, switchable per input
Equivalent Input Noise	-128 dB, A-weighted, XLR (input shorted)
CMRR	At 20 dB gain (typical): >60 dB At 40 dB gain: >65 dB

I/O
Frequency Range	10 to 22,000 Hz
Dynamic Range	Analog mic in to analog out (typical): 105 dB A/D Dynamic range, mic preamp to converter (typical): 109 dB D/A Dynamic range, converter and output: 108 dB
Crosstalk	90 dB at 1 kHz, adjacent channels
Impedance	Mic input XLR jack, unbalanced/balanced: 5 kOhms Hi-Z input TRS jack, unbalanced/balanced: 1 MOhm Line input impedance TRS jack, unbalanced/balanced: 20 kOhms
Input Level	Non clip maximum level, TRS: +21 dBu

Output
Output Impedance	50 ohms, XLR, unbalanced/balanced
Output Level	+4 dBu, XLR, nominal/maximum
Residual Noise	XLR: -88 dBu, A-weighted

Digital Audio I/O
Networking	AES50 SuperMac networking at 48 or 44.1 kHz, 24-bit PCM: 2x 48 channels, bidirectional AES50 SuperMac Cable Length: Up to 328′ (100 m) Ultranet networking at 48 or 44.1 kHz, 16-bit PCM: 1x 16 channels, unidirectional Ultranet Cable Length: up to 246′ (75 m) Ultranet Phantom power for P16-M personal mixers: 2x powered outputs
