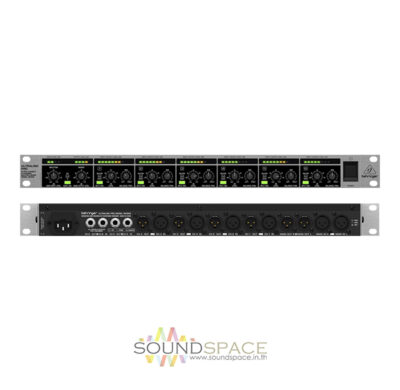

Splitter BEHRINGER MX882 Splitter/Mixer
เครื่องปรับแต่งสัญญาณเสียง BEHRINGER MX882 8 in/2 out line mixer and 2 in/8 out line splitter 6 mono in, 6 mono out, 2 main inputs and 2 outputs
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿6,000.00
Description
เครื่องปรับแต่งสัญญาณเสียง BEHRINGER MX882 Splitter/Mixer
ULTRALINK PRO 8-Channel Splitter/Mixer
The Behringer MX882 ULTRALINK PRO 8-Channel Splitter/Mixer boasts a variety of flexible features, making the unit flexible enough for use in homes, theaters, conference rooms, houses of worship, P.A. monitoring, live sound reinforcement, and recording.
The MX882 multi-function audio signal router features 6 inputs and outputs which allowing dual usage as a mixer or signal splitter. The signal splitter function allows users to route incoming audio signal, via the main stereo inputs, to any of the available 6 outputs. Servo-balanced, gold-plated XLR and 1/4″ TRS inputs and outputs assure quiet, high-quality audio signal. You can use the MX882 as a DI-Box, or as a multi-channel line matching transformer. Every channel features comprehensive 8-segment metering of input gain, with 4-segment metering provided on main in and main output channels.
Features:
- Ultra-low noise 8 in/2 out line mixer and 2 in/8 out line splitter
- Each channel can operate independently in mixer or splitter mode
- Usable as 6 in/6 out level matching amplifier or direct injection box
- Converts levels between -10 dBV and +4 dBu
- Extremely wide bandwidth from 5 Hz to 200 kHz for highest signal integrity
- 6 mono in, 6 mono out, 2 main inputs and 2 outputs
- 4/8-segment input/output level meters for all channels
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
Specifications
BEHRINGER MX882
| Total # Of Inputs | 8 Inputs / 8 Outputs |
| Mic/Line Inputs | 8 – 1/4″ Phone & XLR line level only |
| Stereo Line Inputs | Main: L/R 1/4″ Phone |
| In-Line Inputs/Returns | No |
| AUX Sends | No |
| AUX Returns | No |
| Inserts | No |
| BUS (Group) Outputs | 8 – 1/4″ Phone & XLR output provided for every input channel-for use in “splitter” mode |
| 2 Trk Master I/O | L/R 1/4″ Phone & XLR |
| ALT I/O | No |
| Monitor Outputs | Main: L/R 1/4″ Phone |
| EQ Section | No |
| Solo/Mute | Yes |
| Channel Level Control | Rotary Potentiometers (POTS) |
| Trim/Gain Control | Rotary Potentiometers (POTS) |
| Phantom Power | not applicable – no microphone inputs |
| Metering | LED Indicators:
Input Level (main): 4-digit LED -24/-12/0/+6dB Output Level (main): 4-digit LED -24/-12/0/+6dB Input/Output Level: 8-digit LED -24/-18/-12/-6/0/+6/+12/+18dB |
| Frequency Response | 5Hz to 200kHz +/13dB |
| Dynamic Range | not specified by manufacturer |
| Signal-to-Noise Ratio | > 95 dBu, unweighted, 22Hz to 22kHz |
| Total Harmonic Distortion (THD) | 0.002 % typ. @ +4 dBu, 1kHz, gain 1 |
| Power Supply | Standard IEC
Power Consumption: max.35 Watts 120V -, 60Hz (USA/Canada) |
| Dimensions | 1.75 x 19 x 8.54″ (44.5 x 482.6 x 217mm) |
| Weight | 6.61 lbs (3.0kg) |
