เพาเวอร์แอมป์ BEHRINGER iNUKE NU4 6000 Power Amp
เครื่องขยายเสียง BEHRINGER iNUKE NU 4 6000 4 x 1500W at 2Ω 2 x 3000W at 4Ω High-Density Class-D Amplifier Built-In Subwoofer-Satellite Crossover DC, LF
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿15,000.00
Description
เครื่องขยายเสียง Behringer iNUKE NU4 6000
เครื่องขยายเสียง BEHRINGER iNUKE NU 4 6000 4 x 1500W at 2Ω 2 x 3000W at 4Ω High-Density Class-D Amplifier Built-In Subwoofer-Satellite Crossover DC, LF
The Behringer iNUKE NU4-6000 4-Channel Power Amplifier features four 1,500W amplifiers in a 2RU rackmountable chassis. You can run your stereo full-range mains plus two separate monitor mixes. You may also operate your subwoofers in bridge mode (3,000W) and run mid and high packs in mono biamp mode (2 x 1,500W). The unit utilizes a high-density Class-D technology amplifier design combined with an efficient switch-mode power supply and a back-to-front ventilation system to keep cool while operating. For additional protection the amplifier also includes DC, LF, and thermal overload circuits.

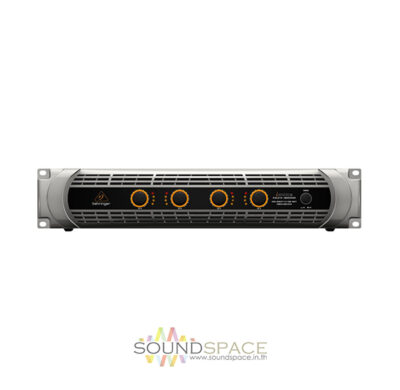

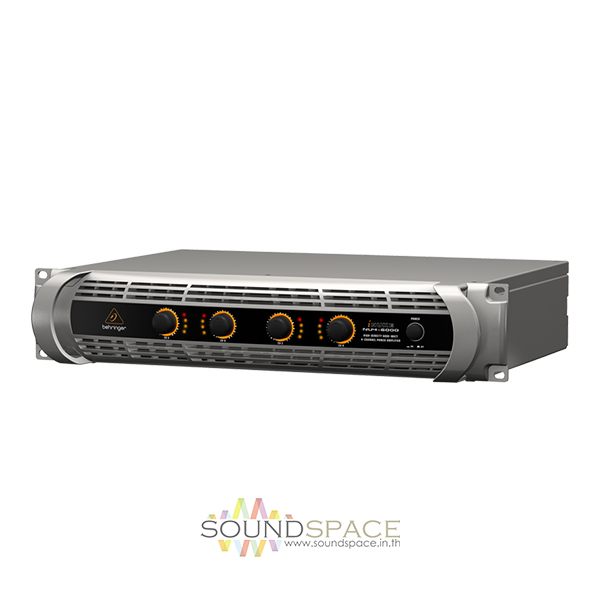

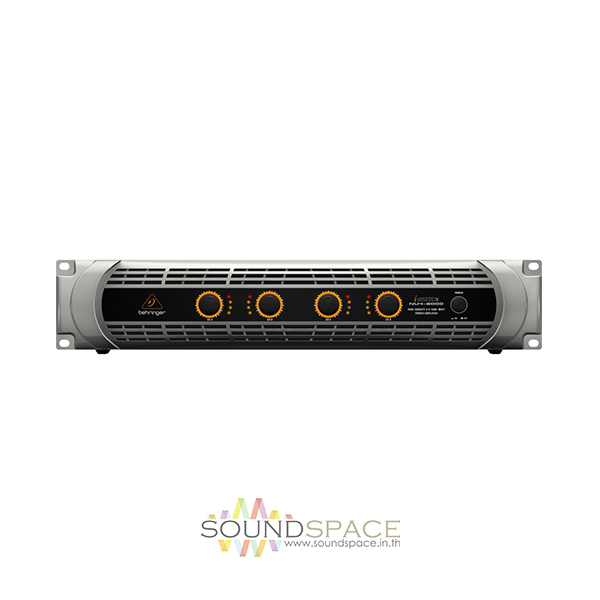

All channels on the front panel feature positive-detent gain controls with signal LEDs that light when a signal is present, as well as clip LEDs to indicate when the signal is distorted and you need to reduce the input signal.

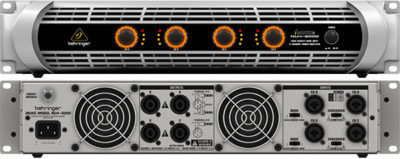

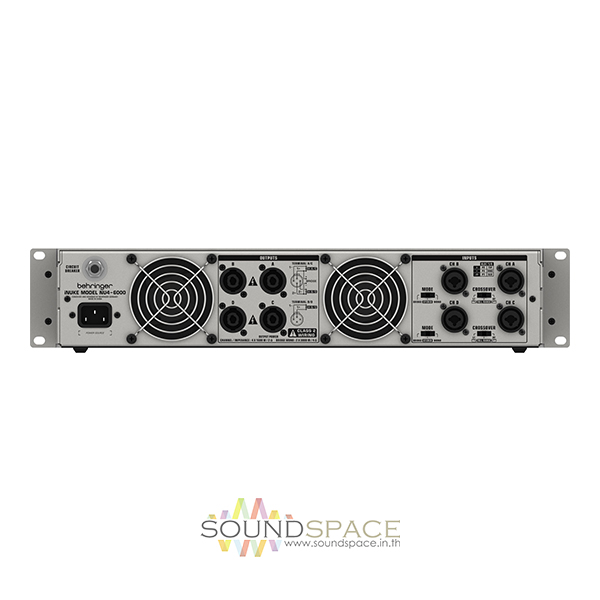

The rear panel features combo XLR and 1/4″ TRS input connectors making the unit compatible with a variety of balanced and unbalanced sources. Professional twist-lock speaker sockets are provided to ensure that efficient transfer of power to your speakers. The rear panel also has the switches that enable the amplifier to work in Quad Mono, Dual Stereo, or Dual Mono Bridge mode. A built-in crossover switch enables the amplifier to operate in biamp mode, sending low-frequency content to passive subwoofers, while the high-frequency output is channeled to full-range loudspeakers.
Power Rating
Delivers 4 x 1,500W at 2Ω, 2 x 3,000W at 4 Ω, and weighs less than 12 lb (5.5kg)
Amplifier Design
Features cool-running high-density Class-D technology with near-zero thermal buildup
Power Supply
Utilizes efficient switch-mode power supply for low-noise audio, enhanced transient response, and lower power consumption
Zero-attack limiters
Enable maximum output level with reliable overload protection
Crossover
Separates subwoofer and full range signal for bi-amp operation
Gain Controls
Feature detented knobs and LED illuminated levels
LED Indicator Lights
Features 4-segment signal and limit LEDs to indicate signal presence and clipping
Inputs
Utilizes XLR and 1/4″ TRS combination input connectors for compatibility with different sources
Outputs
Features professional twist-lock speaker connectors for reliable connections
Protection
Includes independent DC, LF, and thermal overload protection on each channel to automatically protect the amplifier and speakers without shutting down the system
Cooling
Includes back-to-front ventilation system prevents thermal buildup for reliable operation
Features
- Delivers 4 x 1600 Watts into 2 Ohms, 2 x 3000 Watts into 4 Ohms and weighs less than 12 lbs / 5.5 kg
- Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
- Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- “Zero-Attack” limiters offer maximum output level with reliable overload protection
- Built-in stereo crossover with low-cut, high-cut and full range mode
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4” TRS combination input connectors for compatibility with any source
- Professional twist-lock speaker connectors for ultimate reliability
- Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
- “Back-to-front” ventilation system prevents thermal buildup for reliable operation
- Conceived and designed by BEHRINGER Germany
Specifications
BEHRINGER iNUKE NU 4 6000
| Power | ||
| Maximum Output Power | 4-channel
8 Ω per channel: 4 x 440 W 4 Ω per channel: 4 x 860 W 2 Ω per channel: 4 x 1,600 W |
|
| Bridge | Connection
8 Ω per bridged pair: 2 x 1,600 W 4 Ω per bridged pair: 2 x 3,000 W |
|
| System | ||
| Controls | Front: Power switch gain controls (channels 1, 2, 3, and 4)
Rear: 2 x Mode switch (bridge / stereo / mono) 2 x Crossover switch (full-range / 100 Hz) |
|
| Power | Amber backlit illuminated gain controls | |
| Indicator Lights | Limit (per channel): Red LED (0 dB, full scale)
Signal (per channel): Amber LED (-24 dB, -12 dB, -6 dB) |
|
| Connectors | ||
| Inputs | 4 x combo jacks | |
| Input Impedance | 10 kΩ unbalanced, 20 kΩ balanced | |
| Outputs | 4 x locking-style professional speaker connectors | |
| Output Circuit | Type: Class-D | |
| Distortion | <0.2% | |
| Frequency Response | 20 Hz to 20 kHz, +0 / -2 dB | |
| Damping Factor | >120 at 8 Ω | |
| Signal-to-Noise Ratio | >100 dB | |
| Cooling | Continuously variable speed fan
Back-to-front air flow |
|
| Amplifier | Protection: Thermal and DC protection, stable into reactive or mismatched loads | |
| Protection | Load Protection: On / off muting, DC-fault power supply shutdown | |
| General | ||
| Power Supply | USA / Canada: 120 V~, 60 Hz, (25 A, 250 VAC) | |
| Power Consumption | At 1/8 Maximum Non-Clipped Output at 2 Ω: 620 W
At Maximum Attainable Output at 2 Ω: 4,800 W |
|
| Main Connector | Standard IEC receptacle | |
| Dimensions (H x W x D) | Approximately 3.7 x 19.0 x 12.2″ (93.9 x 482.6 x 309.8 mm) | |
| Weight | Approximately 12.4 lb (5.6 kg) | |
