แอมป์ขยายหูฟัง BEHRINGER HA8000 Headphone Amp
เครื่องขยายสัญญานหูฟัง BEHRINGER HA8000 2 x St Main Inputs, 8 x Independent Stereo Mixes, 16 x Total Headphone Outputs เหมาะสำหรับห้องบันทึกเสียง
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿7,500.00
Description
Behringer HA8000 8-Ch High-Power Headphones Mixing and Distribution Amplifier
เครื่องขยายสัญญานหูฟัง BEHRINGER HA8000 2 x St Main Inputs, 8 x Independent Stereo Mixes, 16 x Total Headphone Outputs เหมาะสำหรับห้องบันทึกเสียง

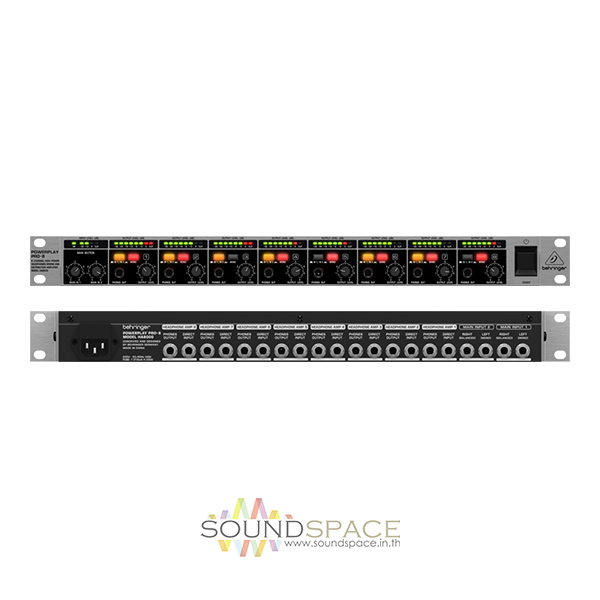

The Behringer POWERPLAY HA8000 is an 8-channel high-power headphones mixing and distribution amplifier designed for stage and studio recording applications. With two independent stereo main inputs as well as a dedicated direct input on each channel, the unit allows the engineer to prepare a customized monitoring mix for each musician.
Each of the unit’s amplifiers can drive loads down to 8 ohms and each features its own 8-digit LED output level meter, Main in 1/Main in 2 select switch, a stereo or dual mono select switch, and a 1/4″ direct input for integrating an additional sound source. The front panel of each section gives one 1/4″ phones out jack per channel. The main section includes a dedicated 5-segment LED input meter, plus Main in 1, and Main in 2 level dials.
The back of the unit features an additional 1/4″ phones output per channel, which allows a total of 16 pairs of headphones to listen to 8 separate mixes at once.
Features:
- Professional multi-purpose headphones amplifier system for stage and studio applications
- Highest sonic quality with virtually all types of headphones even at maximum volume
- 8 totally independent stereo high-power amplifier sections in one rack space
- 2 stereo Main inputs for two independent mixes, accessible from all 8 output channels
- 8 independent Direct inputs provide up to 8 individual stereo mixes
- Output level control and accurate 8-digit LED output meter per channel
- Mono/stereo switch per channel for more flexibility
- 1 front and 1 rear TRS phones connector per channel
- Direct input connector on each channel for easy connection of any sound source
- Parallel Main outputs allow cascading of several headphones amplifiers
- Toroidal transformer for noiseless operation and low magnetic interference
Specifications
| Number of Channels | 8 |
| Input Connections | 2 x 1/4″ TRS Phone(L/Mono, R) Main Input 1, Balanced 2 x 1/4″ TRS Phone(L/Mono, R) Main Input 2, Balanced 8 x 1/4″ Stereo Phone Direct Ins |
| Output Connectors | 16 x 1/4″ Stereo Phone |
| Maximum Output Level | +24 dBm (load impedance 100 ohms) |
| Function Controls | 1 x Main In 1 Level Control Knob 1 x Main In 2 Level Control Knob 8 x Channel Output Level Control Knobs 8 x Main In 1/Main In 2 Channel Monitoring Switches 8 x Mono Channel Monitoring Switches |
| Frequency Response | 10 Hz – 150 kHz, +/-3 dB |
| THD + N | 0.006% typ. @ +4 dBu, 1 kHz, Gain 1 |
| Noise | 22 Hz – 22 kHz >90 dB @ 0 dBu |
| Display | Input Level: 4-digit LED: -30, -12, 0 dB, CLIP Output Level: 8-digit LED: -30, -24, -18, -12, -6, -3, 0 dB, CLIP |
| Dimensions | 1.75 x 19 x 8.5″ (44.5 x 482.6 x 217 mm) |
| Weight | 5.2 lb (2.35 kg) |
| Specialties | Up to 150 kHz Frequency Response Individual Output Level Displays Individual Direct Inputs Per Channel |
