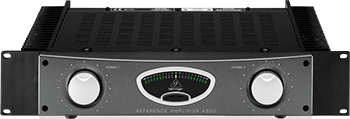

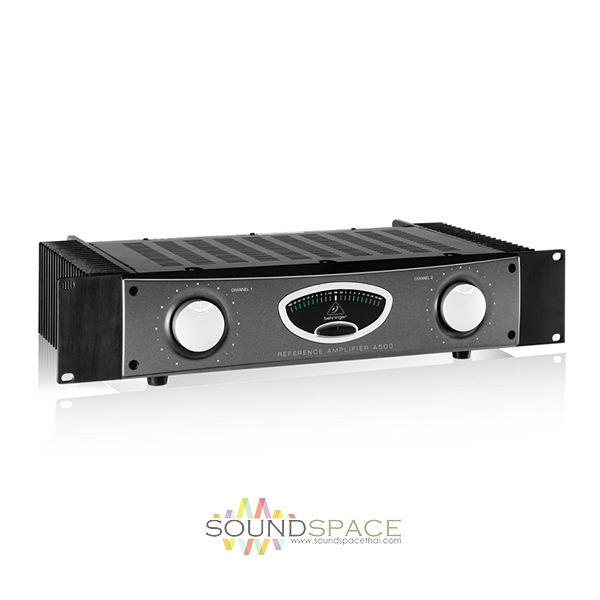

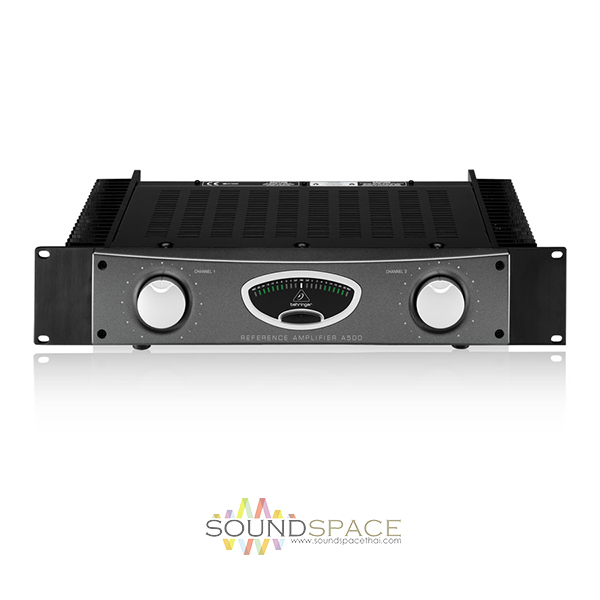

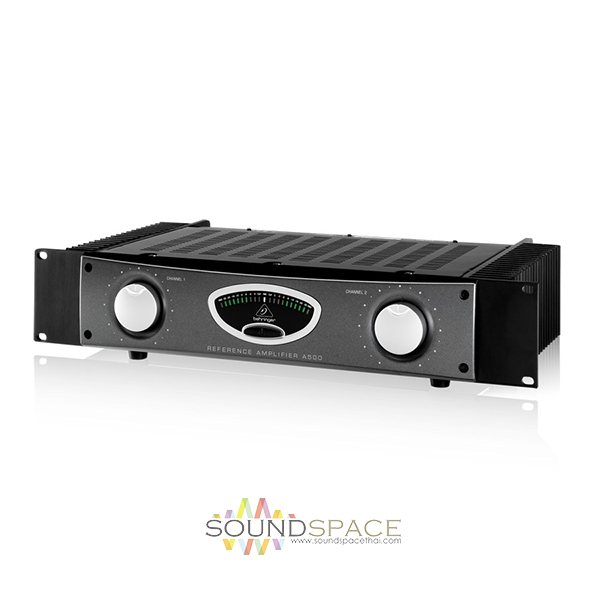

เพาเวอร์แอมป์ BEHRINGER A500 Power Amplifier
เพาเวอร์แอมป์ BEHRINGER A500 Ultra-linear power amplifier for recording studios post-production live sound and HiFi application 2 x 300 Watts into 4 Ohms, 600 Watts
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿9,900.00
Description
BEHRINGER A500 Power Amplifier 2 x 300 W
เพาเวอร์แอมป์ BEHRINGER A500 Ultra-linear power amplifier for recording studios post-production live sound and HiFi application 2 x 300 Watts into 4 Ohms, 600 Watts
The Behringer A500 is an inexpensive professional reference power amplifier, targeted primarily toward recording studio applications, but viable as an installation solution as well. The unit features bar-graph level metering, independent thermal overload protection for each channel, 230 Watts of power output per side at 4 Ohms, and fan-free convection cooling for minimal operating noise.
- 2-channel ultra-linear rackmount power amplifier for studio and installation applications with 230W output per side at 4 Ohms
- Servo-controlled design, fan-free convection cooling for quiet operation
- Bar graph level metering with clip and protection indicators
- High-power Toshiba/Fairchild transistors, high-current, low-noise toroidal transformer
- Independent thermal overload protection for each channel for automatic speaker and amplifier protection
- Full complement of input connectors with balanced XLR, 1/4″, unbalanced RCA
Features:
- Ultra-linear power amplifier for recording studios, post-production, live sound and HiFi application
- 2 x 300 Watts into 4 Ohms, 600 Watts into 8 Ohms in bridged mono operation
- Servo-controlled design can drive virtually any passive speaker such as studio monitors, etc.
- Advanced convection-cooling for absolutely noise-free and stable operation (no fan)
- Precise level meter and clip indicators for accurate performance monitoring

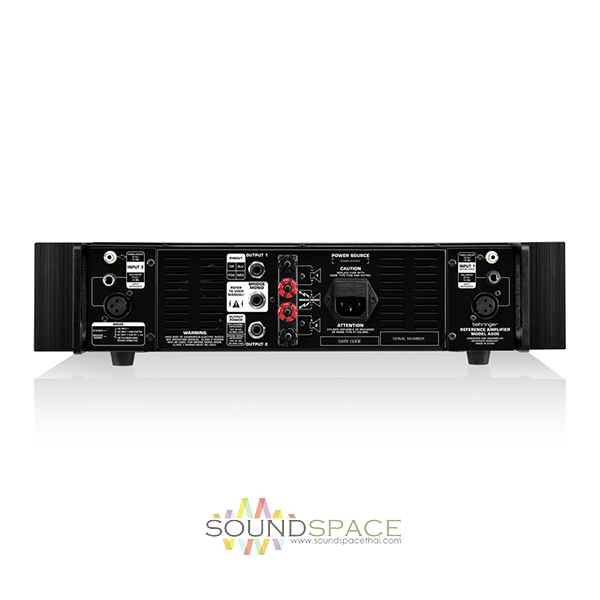

- Input connections on balanced XLR, 1/4” TRS and RCA connectors
- Speaker outputs on professional ”touch-proof” binding posts and 1/4” TS connectors
- Ultra-reliable Toshiba* / Fairchild* power transistors
- Independent thermal overload protection with LED indicator for each channel automatically protects amplifier and speakers
- High-current toroidal transformer for absolute reliability and lowest noise interference
- Conceived and designed by BEHRINGER Germany
Specifications
Behringer A500
| Power Rating | Stereo @ 8 Ohms: 160 Watts
Stereo @ 4 Ohms: 230 Watts Bridged Mono @ 8 Ohms: 500 Watts |
| Damping Factor | Not Specified by Manufacturer |
| Input Sensitivity | 1.3V (+4.5dBu, VRMS @ 4 Ohms) |
| Input Impedance | 10 kOhms, Unbalanced
10 kOhms, Balanced |
| Gain | 28 dB |
| Frequency Response | 10 Hz – 25 kHz, +0/-1dB |
| Signal-to-Noise Ratio | -100dB, unweighted, 20Hz – 20kHz |
| Total Harmonic Distortion (THD) | <0.01% |
| Input Connections | 2 x 3-pin XLR, Balanced
2 x 1/4″ TRS Phone, Balanced 2 x RCA Phono, Unbalanced |
| Output Connectors | 2 x 1/4″ TS Phone(Output 1,2)
1 x 1/4″ TS Phone(Bridged Mono) 4 x Touch-Proof Binding Posts |
| Controls Front Panel | 2 x Rotary Volume Controls
1 x Power Switch |
| Controls (Rear) | 1 x Stereo/Bridge Mono Switch |
| Indicators | 1 x Yellow Protection LED
1 x Red Clip LED 1 x White Power on LED |
| Cooling | Convection-cooled |
| Power Consumption | 6.5A (120VAC, 60 Hz)
3.6A(230VAC, 50Hz) |
| Dimensions | 19 x 10.8 x 4″ (482.6 x 257.5 x 101.6mm) |
| Weight | 18.5 lb (8.4 g) |
| Specialties | Convection-cooled
LED Bar Metering |
