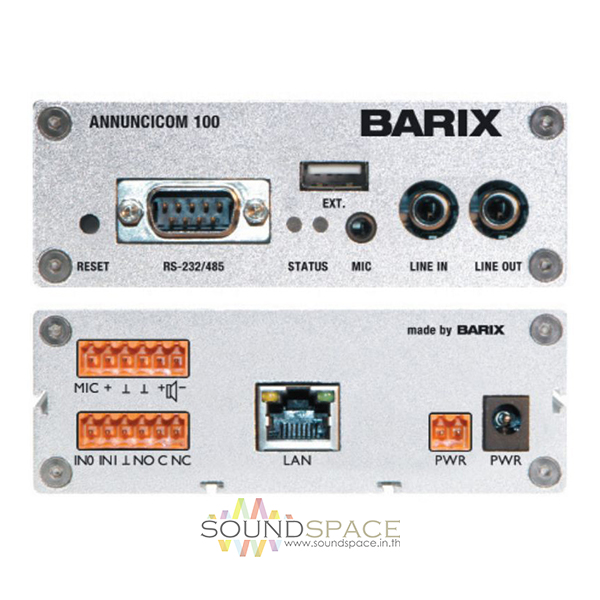

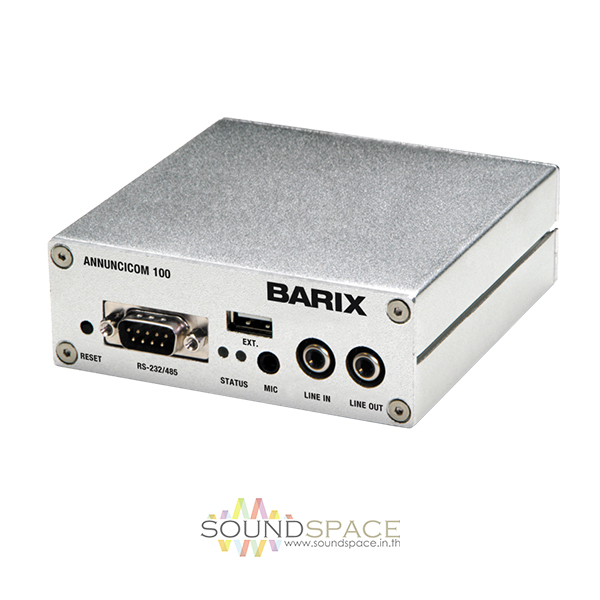

BARIX Annuncicom 100 Audio Network
Annuncicom 100 อุปกรณ์รับสัญญานและถอดรหัสเสียงผ่านเน็ตเวิร์ค สามารถรับได้ทั้งสัญญาณ Analog และ Digital ในระยะไกลผ่านทางระบบ LAN หรือ Network Audio Encoder, IP Audio Encoding
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿22,600.00
Description
อุปกรณ์รับ-ส่งสัญญานเสียงผ่านเน็ตเวิร์ค BARIX Annuncicom 100 Encoding Audio over IP
Annuncicom 100 อุปกรณ์รับสัญญานและถอดรหัสเสียงผ่านเน็ตเวิร์ค สามารถรับได้ทั้งสัญญาณ Analog และ Digital ในระยะไกลผ่านทางระบบ LAN หรือ Network Audio Encoder, IP Audio Encoding
The Barix Annuncicom 100 is an interface that bridges audio to Ethernet to allow people to communicate with each other and to inform others. You could call it an IP intercom and IP paging system.
Features:
- Transmits voice, pre-recorded announcements, alarm messages and music over the network to any specific location
- Two way communication is possible just like an ordinary intercom
- Communicates over a standard network connection (10/100 Mbit/s) and supports TCP/IP-Protocol
- Incorporates an integrated web server for control and configuration
- Works in combination with other Barix Annuncicoms as an autonomous IP Intercom, IP Paging system or can be used by itself with a PC controlled solution
Applications:
- IP paging, IP intercom and IP alarm system
- Commercial IP audio distribution
- Residential IP audio distribution
Specifications
| Electrical • 9 to 30 VDC, 12 to 24 VAC, 8 Watt max. on screw terminal block and 2.1mm barrel connector Ethernet • 10/100Mbps auto, • RJ-45 connector with integrated Link/Activity LED • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast capableMicrophone Input • On detachable screw terminal block and 3.5 mm (1/8″) Jack • 3 pin TRS, with bias power 2.7VDCAnalog Line Input (mono) • Line level input, 2k Ohm input impedance on RCA 2.2 VPP max, adjustable in sensitivity • Frequency response 20 Hz .. 20 kHz (-3dB)* • Dynamic range 87 dB, SNR -87 dB, THD <0.01% (-3dBFS)*RS-232 and RS-485 Interfaces • On 9-pin Sub-D connector • 300..230’400 Baud asynchronous, tunneling or local controlMTBF • calculation 560 000h (according to MIL217F at 25°C)Mechanical • Aluminum case, 390 g • Dimensions 108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch) • rack and wall mountable using accessories* depends on used codec, best results @48kHz PCM |
Analog Line Output (mono) • Line level output, 40..60 Ohm output impedance on RCA • Output level software controllable • Full scale output voltage: 3 dBu, 3 VPP • Frequency response 20 Hz .. 20 kHz (-3dB)* • Dynamic range 94 dB, SNR -94 dB, THD <0.03 % (-3dBFS)* Speaker out • On detachable screw terminal block • Suggested speaker impedance 4 to 32 Ohm • 1 Watt max @ 8 Ohm (2 W max @ 4 Ohm) • Frequency response 20 Hz .. 20 kHz (-3dB)*, • Dynamic range 80dB, SNR -80dB, THD <0.15% (-3dBFS)*Audio formats • MP3, encoding/decoding up to 192/320 kbps • PCM 16 bit and 8 bit (uLaw, aLaw) @ 8..48 kHz • MP3, VBR, CBR* / VBR, CBR* encoding/decoding • PCM, G.711, G.722* encoding/decodingModel comparison • Model 60 (48 VDC) , PoE, 5 Watt • Model 100 (9..30 VDC 12..24 VAC) USB 2 Watt • Model 155 (24..48 VDC) 5.5 Watt • Model 200 (16..30 VDC, 48 VDC, 16..24 VAC) PoE, USB, Aipohne 8 Watt • Model 1000 (24..48 VDC)Discrete I/O • On detachable screw terminal block • 1 relay output with normally closed and open contacts, • 30V 0.5A (AC & DC) • 2 discrete / dry contact inputs* Hardware revision 2 only |
