มิกเซอร์ AUSTRALIAN-MONITOR AMIS60 Mixer Amplifier
เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 60W. Mixer Amplifier, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿17,500.00 ฿14,800.00
Description

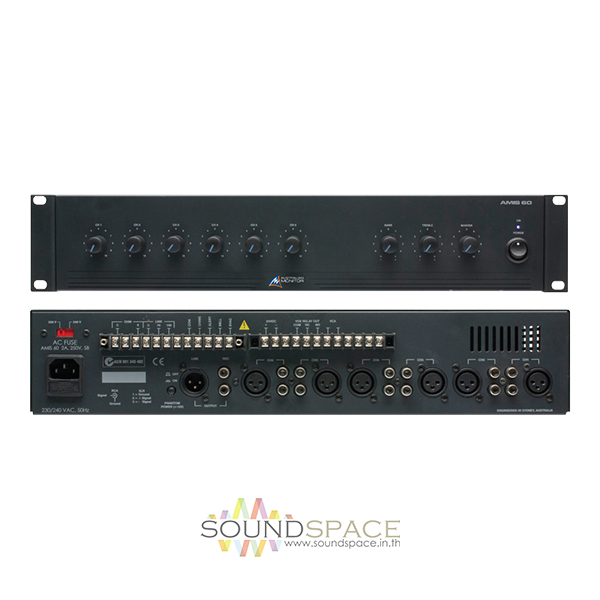

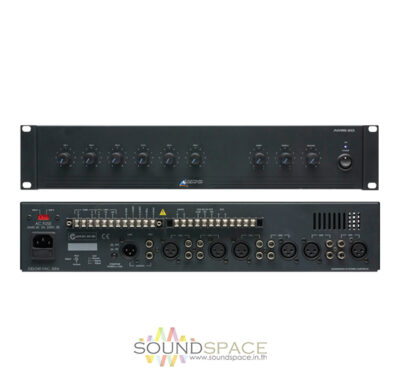

Australian MonitorAMIS60 60 watts Mixer Amplifier
เครื่องขยายเสียงระบบเสียงประกาศ AUSMON 60W. Mixer Amplifier, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU
The AMIS60 has been the most successful and reliable amplifiers from Australian Monitor for over 6 years. We have now made our most popular amplifiers even more contractor friendly with the addition of two extra balanced XLR microphone/dual RCA line inputs.
The AMIS60 still boasts the same reliability and excellent feature set including vox muting on channels 1 and 2 (defeat able), Bell, Pre Announce, Evac and Alert tones on board, Vox triggered output relay, VCA master level control, 15 VDC phantom power and mains or 24DVC operation. Now with more inputs available they offer even greater flexibility for commercial audio installations.
Features:
- 60 watt
- 2 RU
- Vox muting on channels 1 and 2 (defeat able)
- Bell, Pre Announce, Evac and Alert tones on board
- Vox triggered output relay
- VCA master level control
- 15 VDC phantom power
- Mains or 24DVC operation
- 100 volt, 70 volt 4 or 8 ohm operatio
Specifications
AUSMON AMIS60
| Output Power | 60 watt |
| Damping Factor | Not Specified by Manufacturer |
| Input Sensitivity | Mic: 1mV @ 200 ohms
Aux: 150mV @ 47 k ohms |
| Input Impedance | Mic: 200 ohms
Aux: 47 k ohms |
| Maximum Load | 80 ohms @ 70V |
| Frequency Response | 60Hz – 23kHz |
| Signal-to-Noise Ratio | -74dB |
| Total Harmonic Distortion (THD) | 0.5% |
| Input Connections | 4 x Mic/Aux Universal Inputs with XLR Female and Dual RCA Jacks
1 x 600 ohm Transformer Balanced Telephone Paging Input |
| Output Connectors | 70V, 8 ohm Speaker
350mV Tape Balanced 700mV Line |
| Controls Front Panel | 4 x Channel Gain Controls
1 x Bass Control 1 x Treble Control 1 x Master Gain Control 1 x 6 Speaker Zone Selector 1 x All Call Selector 1 x Pre-Announce Defeat Switch |
| Controls (Rear) | Phantom Power Switch |
| Indicators | Front-Panel LED |
| Cooling | Not Specified by Manufacturer |
| Power Consumption | 125W |
| Dimensions (HxWxD) | 3.5 x 19 x 13″ (89 x 483 x 330 mm) |
| Weight | 22 lbs (10 kg) |
| Specialties | Built-In 4 Tone Generator, VOX Muting |
