ไมโครโฟน AUDIX TM1 PLUS Test & Measurement Microphone

Description

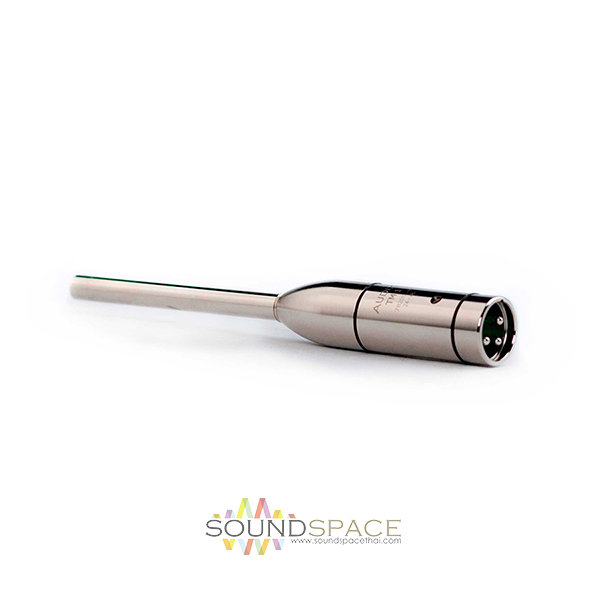

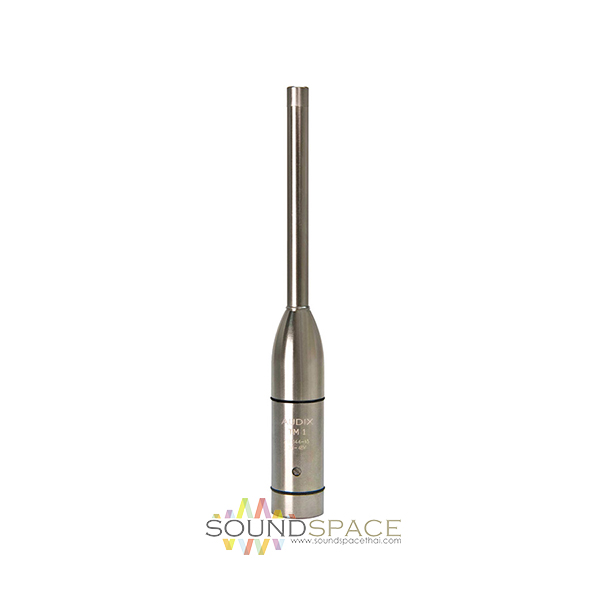

AUDIX TM1 PLUS Test & Measurement Microphone

ไมโครโฟนสำหรับวัดเสียง AUDIX TM1 PLUS เป็นไมค์แบบคอนเด็นเซอร์ คุณสมบัติเหมือน AUDIX TM1 เพียงแต่มาพร้อม calibration data file, threaded acoustic windscreen, shockmount clip, and calibration adapter, ใช้สำหรับการตรวจวัดค่าการตอบสนองความถี่ทางด้านเสียงภายในห้อง, งานบันทึกเสียง, งานแสดง โดยผ่านซอฟต์แวร์คอมพิวเตอร์

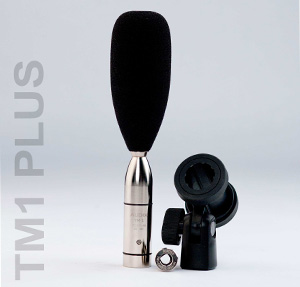

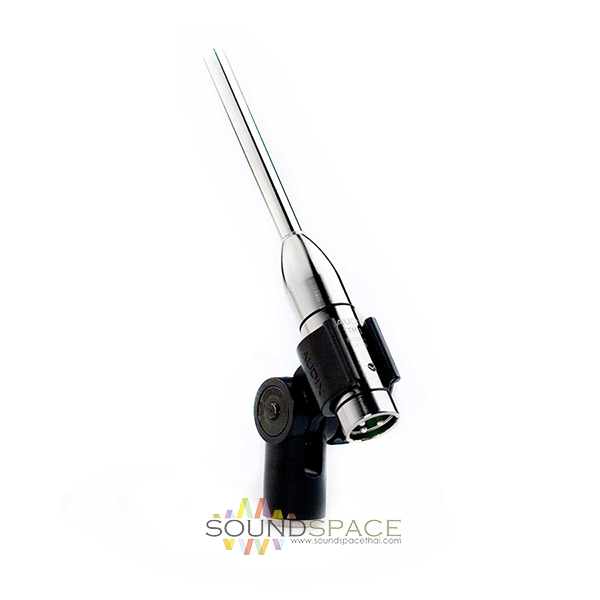

The TM1PLUS is a combination kit which includes the TM1 measurement  microphone, threaded acoustic windscreen, shock mount clip, ½ inch calibrator  adaptor and microphone calibration data on CD. The data files are a numeric  representation of the TM1 frequency response. These, along with the provided  sensitivity of the microphone, can be used with a variety of popular software  measurement systems to correct the response curve of the microphone.

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. Known for its linearity, the TM1 is very consistent and has a particularly accurate response. The TM1Plus is not complicated to use and with the additional supplied accessories is great value.

Characterized with a uniformly controlled omni-directional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz – 25 kHz, the TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts.

Requiring 18 – 52 V phantom power for operation, the TM1 features a precision machined four stage brass body and capsule housing, nickel plate finish, Switchcraft® or Audix XLR and shock absorbent O-ring.

Features:

• Precision 6mm pre-polarized condenser microphone
• Captures acoustic measurements for room analysis software programs
• Excellent tool for sound engineers, sound companies and recording enthusiasts
• Uniformly controlled omnidirectional polar pattern
• Precision-machined 4-stage brass body and capsule housing
• Low noise SMT circuit, nickel plate finish, field replaceable parts
• Switchraft XLR connector; shock-absorbent O rings
• Designed, machined, assembled and tested by Audix in Wilsonville, OR, USA
• Includes calibration data file, threaded acoustic windscreen, shockmount clip, and calibration adapter
• Requires +48V phantom power
