ไมโครโฟนไร้สายติดกล้อง audio-technica ATW1701/MT830CW

Name: ไมโครโฟนไร้สายติดกล้อง audio-technica ATW1701/MT830CW
Price: 16900.00 THB
Availability: InStock

ชุดไมค์ลอยสำหรับติดกล้องพร้อมไมค์แบบหนีบปกเสื้อรับ-ส่งด้วยคลื่นความถี่ดิจิตอล 2.4 GHz ให้สัญญาณที่ชัดเจน มีให้เลือก 8 ช่องสัญญาณ สามารถต่อ Audio บันทึกเข้ากับตัวกล้องได้เลย และยังมีช่องสำหรับต่อ Headphone Monitor ได้อีกด้วย ติดตั้งง่าย สะดวกต่อการใช้งาน

ราคาไม่รวมภาษีมูลค่าเพิ่มเป็นราคาชุดละ…..

~~฿19,900.00~~ ฿16,900.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: audio-technica

Description

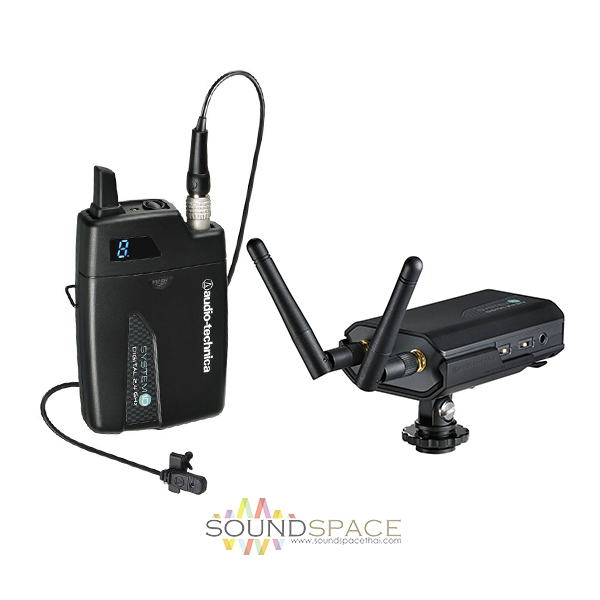

Audio-Technica ATW1701 / MT830 CW Camera-Mount Digital Wireless System with Omni Lavalier Mic

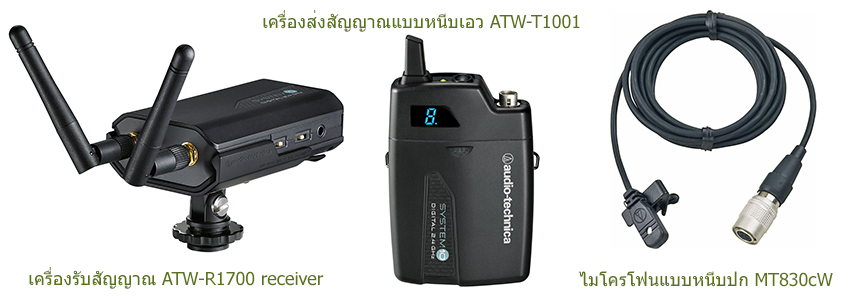

ชุดไมโครโฟนไร้สายแบบหนีบปก ATW 1701/L System 10 ประกอบด้วย

เครื่องรับสัญญาณ ATW-R1700 receiver 1 เครื่อง

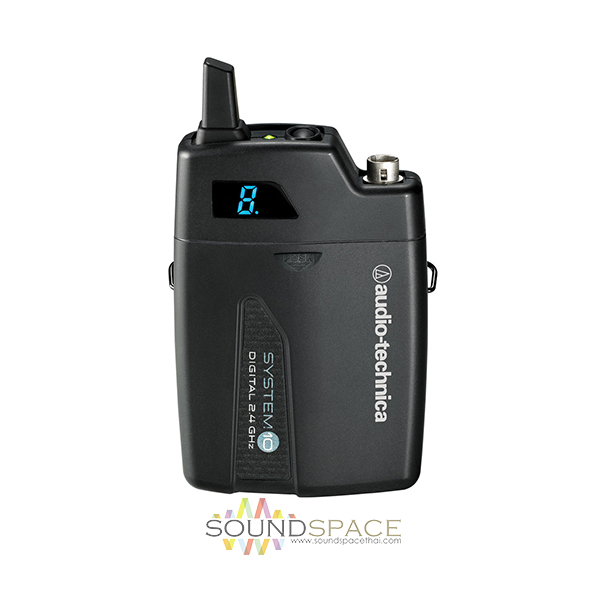

เครื่องส่งสัญญาณแบบหนีบเอว ATW-T1001 UniPak® transmitter 1 เครื่อง

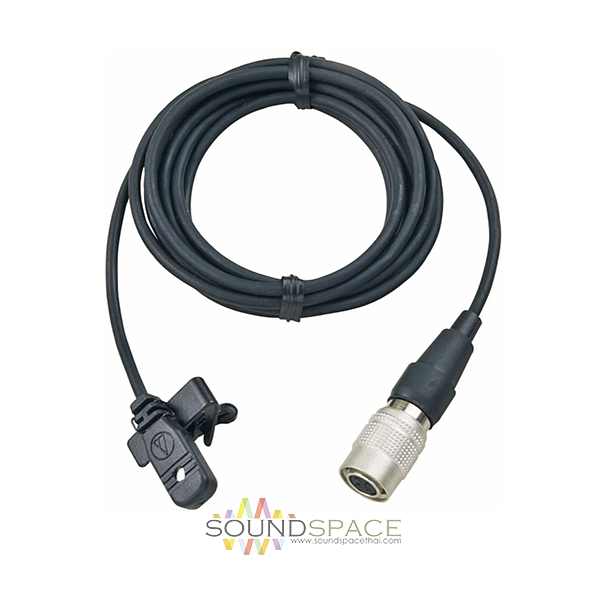

ไมโครโฟนแบบหนีบปก MT830cW omnidirectional lavalier microphone 1 ตัว

audio-technica_atw1701-mt830cw_wireless-camera_6

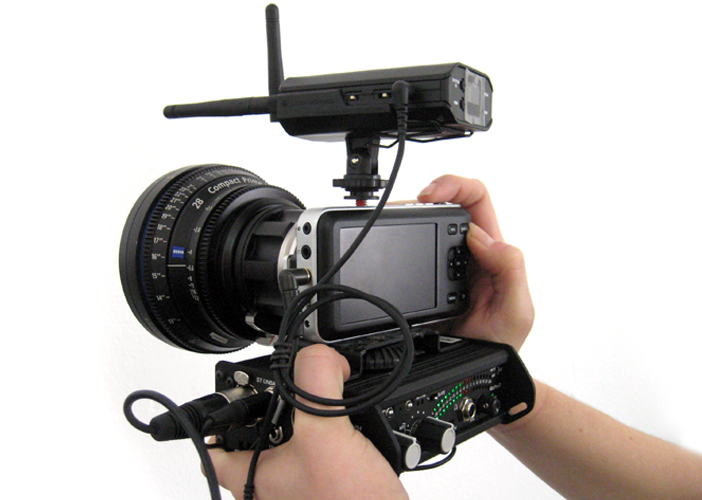

The Audio-Technica ATW-1701/L System 10 Camera-Mount Digital Wireless Lavalier Microphone System is designed to be placed in the cold shoe or hot shoe of a video camera, DSLR, mirrorless, or other similar camera for digital film making and electronic news gathering (ENG) applications.

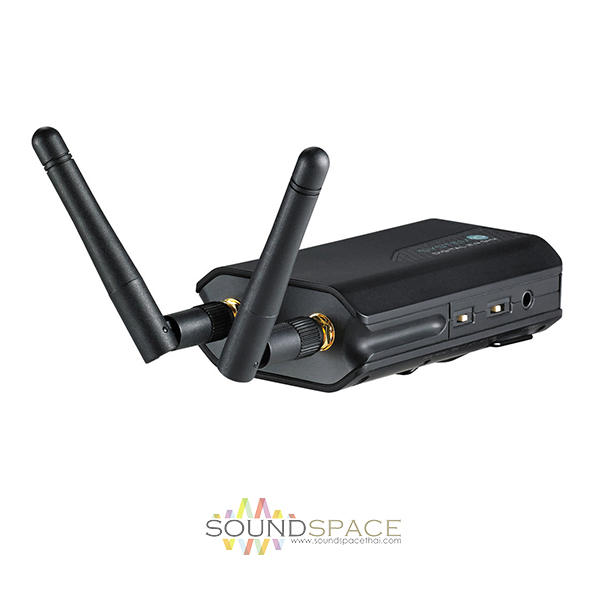

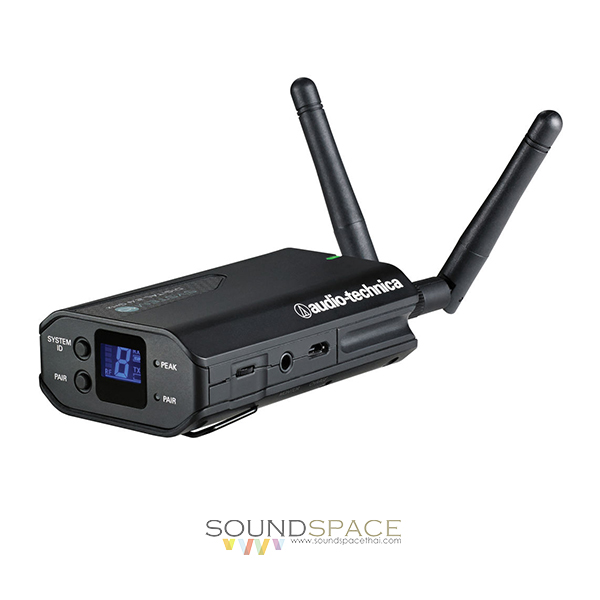

The compact camera-mountable ATW-R1700 receiver features an independent headphone monitor output, and selectable balanced or unbalanced audio outputs on 3.5mm mini-jack connectors. The unit is powered by an internal rechargeable Li-Ion battery, and both the receiver and bodypack transmitter battery life indicators are displayed on the receiver. This system comes with a wearable bodypack transmitter with 10 mW RF output powered by two 1.5V AA batteries (not included) for an effective operating range of approximately 100′. Additionally, the MT830cW omnidirectional lavalier microphone is included for connection to the bodypack transmitter.

ที่ 5

The ATW-1701/L system operates in the 2.4 GHz range and is immune to both TV and DTV interference. For reception the receiver implements time, frequency, and space diversity processing with instantaneous channel selection, sync, and setup.

Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver to maintain signal integrity.

Features:

MT830cW Omnidirectional Lavalier Mic
Immune to TV and Digital TV Interference
Independent Headphone Monitor Output
Includes Bodypack Transmitter
Hot- or Cold-Shoe Mountable Receiver
2.4 GHz Operation
Frequency, Time, and Space Diversity
Selected Balanced or Unbalanced 3.mm Out
Rechargeable Li-Ion Battery
Dual Antennas Improve Reception

Specifications

System Specifications
Operating Frequencies	2.4 GHz ISM band
Dynamic Range	>109 dB (A-weighted), typical
Total Harmonic Distortion	<0.05% typical
Operating Range	100′ (30 m) typical in open range environment with no interfering signals
Operating Temperature	32 to 104° F (0 to 40° C)
Frequency Response	20 to 20,000 Hz

Receiver
System	Diversity (frequency, time, space)
Antennas	2
Power Supply	Internal Li-Ion battery
Dimensions	Not specified by the manufacturer
Weight	Not specified by the manufacturer

Bodypack Transmitter
RF Power Output	10 mW
Spurious Emission	Following federal and national regulations
Input Connections	Four-pin locking connector Pin 1: GND, Pin 2: INST INPUT Pin 3: MIC INPUT, DC BIAS +9 V
Batteries	2x 1.5V AA (not included)
Battery Life	>7 hours (alkaline), depending on battery type and use pattern
Dimensions (W x H x D)	2.76 x 4.21 x 0.98″ (70.2 x 107.0 x 24.9 mm)
Weight	3.50 oz (100 g) without batteries
