ชุดไวเลสอินเอียร์มอนิเตอร์ Audio-Technica ATW-3255 เป็นชุดอินเอียร์แบบไร้สายย่าน UHF ประกอบด้วยเครื่องส่ง ATW-T3205 1/2-Rack Transmitter, เครื่องรับ ATW-R3250 Bodypack Receiver, หูฟัง ATH-E40 Stereo Earphones, Control via Free Wireless Manager App
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿35,600.00
ชุดไวเลสอินเอียร์มอนิเตอร์ Audio-Technica ATW-3255 เป็นชุดอินเอียร์แบบไร้สายย่าน UHF ประกอบด้วยเครื่องส่ง ATW-T3205 1/2-Rack Transmitter, เครื่องรับ ATW-R3250 Bodypack Receiver, หูฟัง ATH-E40 Stereo Earphones, Control via Free Wireless Manager App
Enjoy freedom of movement on stage, hear a more consistent sound than with monitor wedges, and perform better with the Audio-Technica ATW-3255 3000 Series In-Ear Wireless Monitor System, a durable IEM system that delivers professional-quality sound with dependable wireless performance for musicians rehearsing or performing live in concerts or in houses of worship.

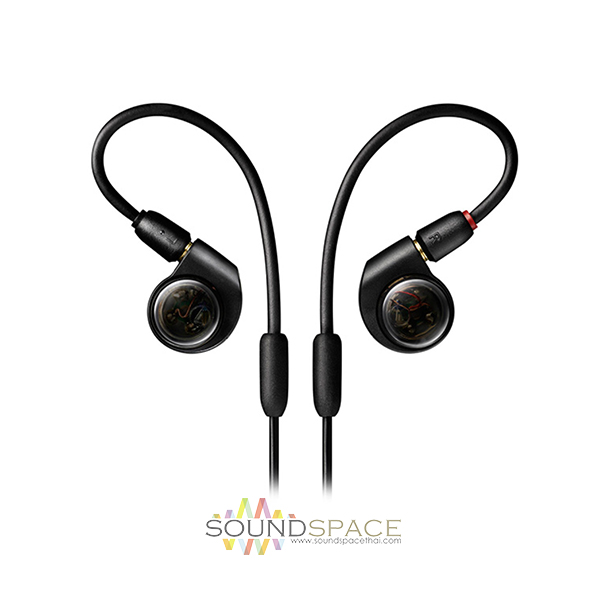

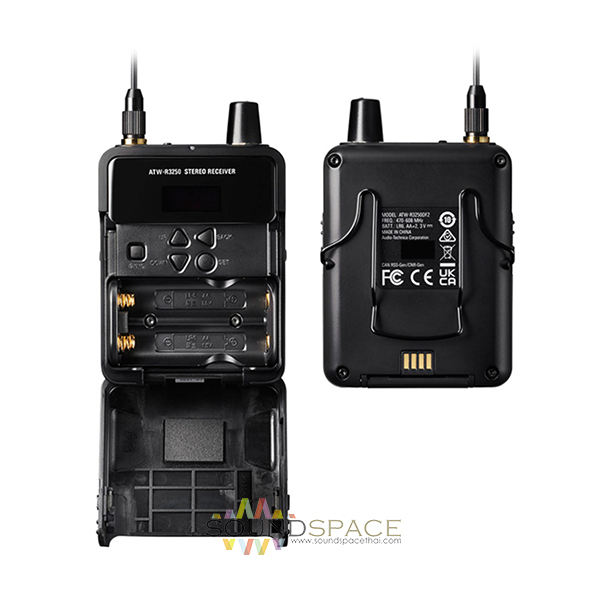

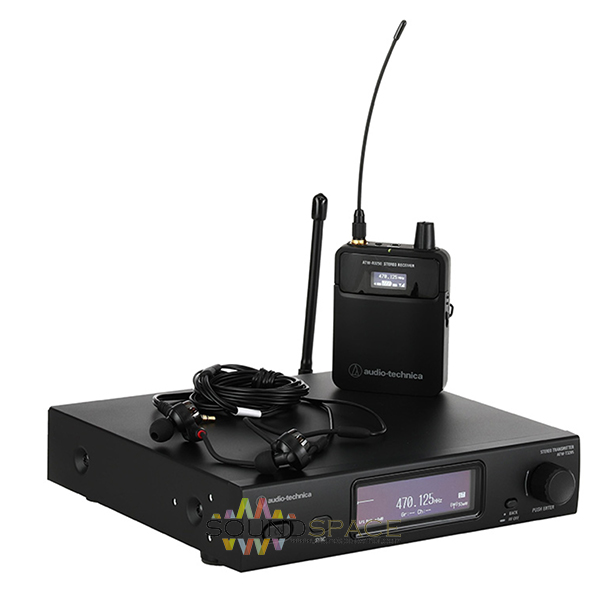

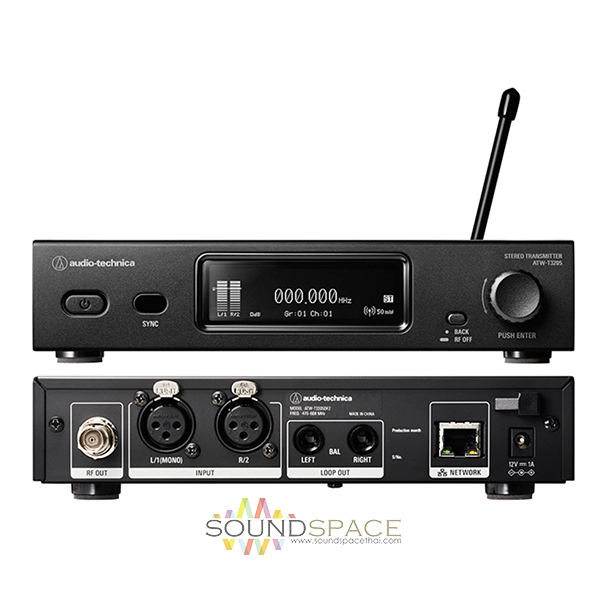

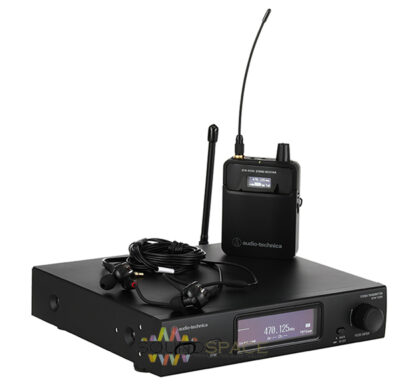

The all-in-one ATW-3255 system includes the ATW-T3205 1/2-rack stereo transmitter with front-panel controls and large OLED display, ATW-R3250 stereo bodypack receiver with stereo/mono operation and pan/personal mix controls, ATH-E40 professional in-ear headphones, external power supply, and a rackmount kit.
The system provides up to 6 hours of continuous use with two AA batteries in the receiver—at a range up to 300′. The transmitter can send signal to as many receivers as you want (additional receivers available separately). Up to 49 transmitters can operate simultaneously in the same frequency band.
Operating Frequencies |
DF2: 470.125 to 607.875 MHz
|
Frequency Step Size |
25 kHz
|
Modulation Mode |
FM
|
Nominal/Peak Deviation |
±34 kHz Nominal / ±45 kHz Peak
|
Dynamic Range |
>90 dB, A-Weighted, Typical
|
Total Harmonic Distortion |
<0.2% (at 1 kHz, +4 dBu Input)
|
Operating Range |
300′ / 90 m
|
Frequency Response |
40 Hz to 14.1 kHz
|
Stereo Separation |
75 dB
|
Max Transmitters per Band |
49
|
RF Output Power |
High: 50 mW, Low: 10 mW, (Switchable) at 50 Ohms
|
Input Connections |
2 x XLR-F Balanced (Pin1: GND, Pin2: Hot, Pin3: Cold)
|
Output Connection |
2 x 1/4″ / 6.3 mm TRS Balanced (Tip: Hot, Ring: Cold, Sleeve: Ground)
|
Network |
100BASE-T, RJ45 Connector
|
Antenna Output |
BNC-Type, 50 Ohms
|
Power Supply |
100 to 240 VAC (50/60 Hz) to 12 VDC, 1 A (Center Positive) Switched Mode External Power Supply (Included)
|
Dimensions (W x D x H) |
8.3 x 7.5 x 1.7″ / 210 x 191 x 43.4 mm
|
Weight |
39 oz / 1.1 kg
|
Receiving System |
Antenna Diversity (Earphone Cable Performs as Secondary Antenna)
|
Image Rejection |
>80 dB, Typical
|
RF Sensitivity |
20 dBuV at 60 dBA S/N Ratio (50 Ohms Termination)
|
Headphone Connector |
1/8″ / 3.5 mm TRS Stereo Mini-Jack
|
Headphone Output |
40 mW (at 12 Ohms)
|
Equalizer |
Low: 80, 160, 320 Hz / ±9 dB in 3 dB Steps
High: 6, 8, 10 kHz / ±9 dB in 3 dB Steps |
Limiter |
Selectable: -30 dB to OFF (0 dB) in 6 dB Steps
|
Antenna Input |
SMA Type, 50 Ohms
|
Batteries |
2 x AA, 3 VDC (Not Included)
|
Battery Life |
4 to 6 Hours (Alkaline)
5 to 7 Hours (Ni-MH, 1900 mAh) 11 to 13 Hours (Lithium) |
Operating Temperature Range |
2 to 113°F / -5 to 45°C
|
Dimensions (W x D x H) |
2.5 x 0.91 x 3.2″ / 64 x 23 x 82 mm
|
Weight |
3.6 oz / 102 g (Without Batteries)
|
