ออโออินเตอร์เฟส Audient EVO8 USB Audio Interface
ออโออินเตอร์เฟส Audient iD4 EVO8 USB-C Audio Interface, 4-in/4-out, 24-bit/96kHz, with 4 EVO Mic Pres, 1 JFET Instrument Input, 2 Headphone Outputs, Loopback, USB Bus Power, EVO Control App, and Bundled Software Mac/Win
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿9,900.00
Description

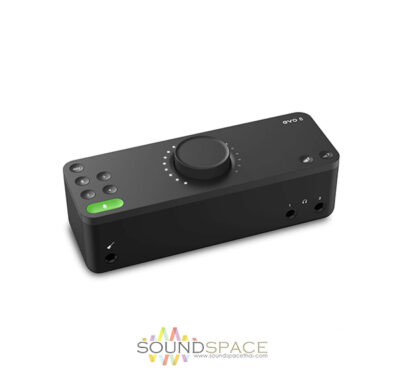

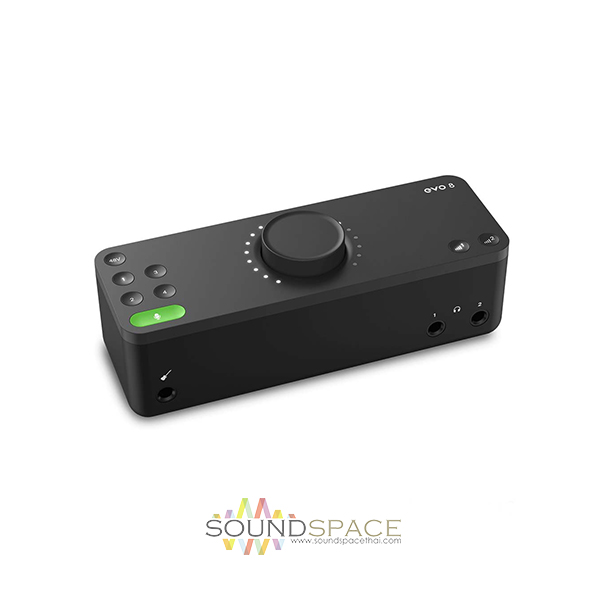

Audient EVO 8 Desktop 4×4 USB Type-C Audio Interface
ออโออินเตอร์เฟส Audient iD4 EVO8 USB-C Audio Interface, 4-in/4-out, 24-bit/96kHz, with 4 EVO Mic Pres, 1 JFET Instrument Input, 2 Headphone Outputs, Loopback, USB Bus Power, EVO Control App, and Bundled Software Mac/Win

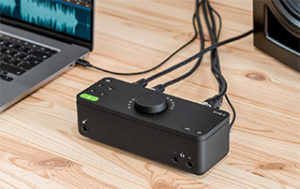

Podcasters, musicians, producers, and content creators can benefit from the Audient EVO 8, a desktop 4×4 USB audio interface that makes capturing high-quality audio effortless.
It features four warm EVO mic preamps, a JFET Hi-Z input for instruments, and Smartgain automatic gain control. Plus, its four 1/4″ line outputs and two headphone outs are perfect for hooking up multiple sets of speakers and headphones.

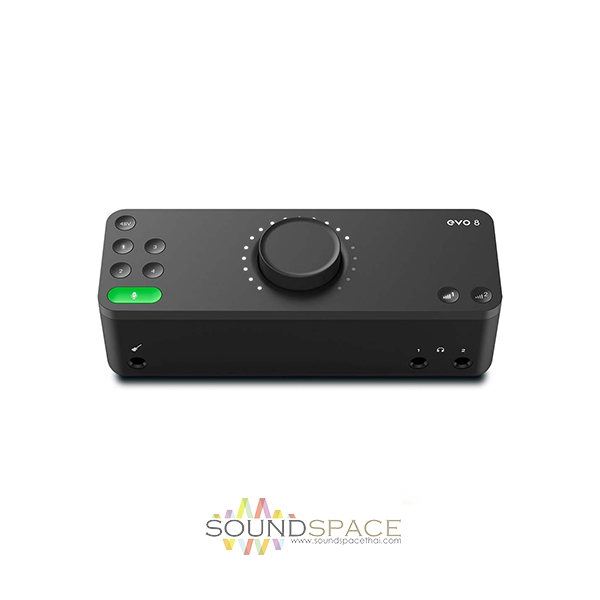

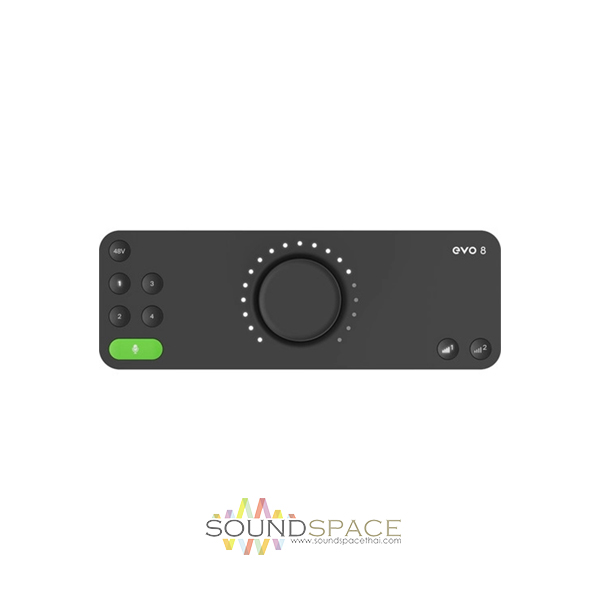

The EVO 8’s large knob provides convenient control of levels for your monitors, headphones, and channels while the multifunction buttons enable easy muting of the inputs and headphone outs.
The audio loopback function makes it possible to record computer audio at the same time as the inputs—a welcome feature for podcasters who need to capture remote guests via Skype or other VoIP apps.
DAW software, virtual instruments, samples, cabinet simulation, and more are included to get you started on your path toward achieving polished productions.
Because the unit is bus-powered, you can power it straight from your computer; you never need to worry about accidentally forgetting or unplugging a power supply. It includes two USB cables (USB Type-C and USB Type-A) to allow proper connection to virtually any computer.
Features:
- 4 transparent Audient EVO preamps
- JFET instrument input
- Class-leading conversion
- Ultra-low latency performance
- 24-bit/96kHz sample rate

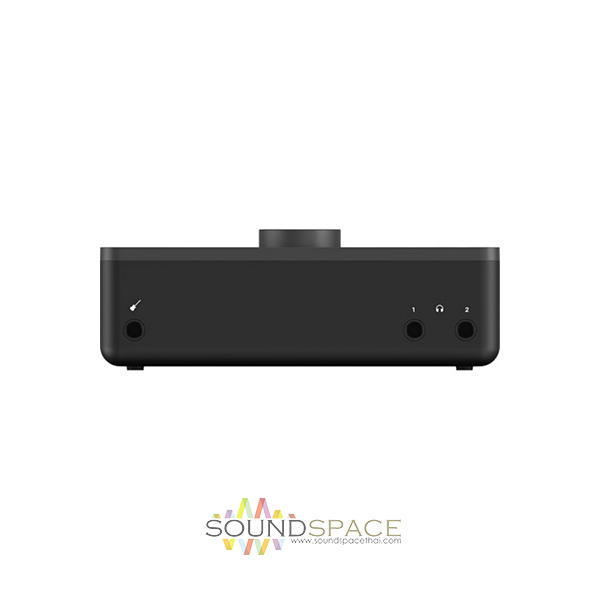

- Two front-panel headphone jacks
- Two stereo monitor outputs
- Bus-powered over USB 2.0
- Smartgain automatic level-setting feature
- Loopback functionality, EVO Control app
- Included software and plug-ins package
Specifications
| Form Factor | Tabletop |
| Display | 1 x Multi-Segment LED Meter |
| Channels of I/O | Analog: 4 Inputs / 4 Outputs at 96 kHz |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Input Level Adjustment | 4 x Automatic 1 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic/Line/Hi-Z Inputs: 58 dB |
| High-Pass Filter | None |
| Solo/Mute | Mute per Input Channel, Master |

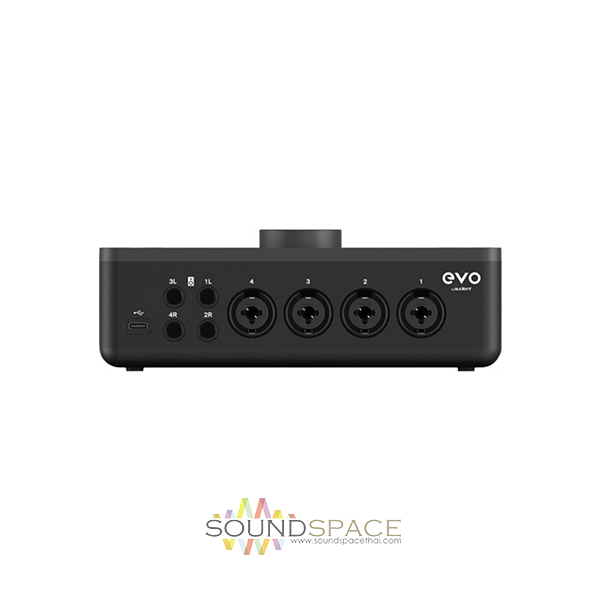

| Analog Audio I/O | 4 x Combo XLR-1/4″ TRS Balanced Mic/Line Input (Pin 2 Hot) 1 x 1/4″ TS Unbalanced Hi-Z Input (Front Panel) 4 x 1/4″ TRS Balanced Line Output (Tip Hot) 2 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | 48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-C (USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Frequency Response | Mic, Line Inputs: 10 Hz to 40 kHz ±0.5 dB Hi-Z Inputs: 10 Hz to 20 kHz ±0.5 dB A/D Converters: 10 Hz to fs/2 ±0.5 dB D/A Converters: 10 Hz to fs/2 ±0.5 dB Headphone Outputs: 10 Hz to fs/2 ±0.5 dB |
| Maximum Input Level | Mic/Line Inputs: +16 dBu Hi-Z Inputs: +10 dBu |
| Maximum Output Level | D/A Converters: +11 dBu Headphone Outputs: +10.1 dBu (600-Ohm Load) |
| Headphone Output Power | 45 mW into 30 Ohms (Max) 52 mW into 60 Ohms (Max) 20 mW into 600 Ohms (Max) |
| Impedance | Mic Inputs: > 3 Kilohms (Balanced) Line Inputs: > 10 Kilohms (Balanced) Hi-Z Inputs: 1 Megohm (Unbalanced) Line Outputs: < 100 Ohms (Balanced) Headphone Outputs: < 50 Ohms (Unbalanced) |
| Dynamic Range | AD/DA Converters: 113 dBA Headphone Outputs: 113 dBA |
| SNR | Mic/Line/Hi-Z Inputs: 100 dB |
| THD+N | Mic/Line Inputs: < 0.0015% (1 kHz) Hi-Z Inputs: < 0.3% (1 kHz) D/A Converters: < 0.0015% (1 kHz, at -1 dBFS) Headphone Outputs: < 0.0015% (1 kHz, at -1 dBFS) |
| Crosstalk | Mic/Line Inputs: < -105 dBu (1 kHz) Line Outputs: < -110 dBu (1 kHz) Headphone Outputs: < -110 dBu (1 kHz) |
| EIN | Mic/Line Inputs: < -128 dBu |
| CMRR | Mic/Line Inputs: > 85 dB (1 kHz) |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | Up to 24-Bit |
| Latency | 5 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output) 4.1 ms at 96 kHz (Dependent on Buffer Size, Input to Output) |
| Sync Sources | Internal |
| Memory Card Slot | None |
| OS Compatibility | macOS 10.7.5 or Later Windows 7 or Later (32-Bit, 64-Bit) |
| Included Software | Cubase LE |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Supported Drivers/API & Plug-Ins | Core Audio (Mac) ASIO |
| Processor Requirement | Mac: Intel PC: 1.6 GHz Intel Core 2 |
| RAM Requirements | 1 GB |
| Mobile Device Compatibility | None |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | USB Bus Power |
| Dimensions | 7.48 x 2.76 x 2.76″ / 19 x 7 x 7 cm |
| Weight | 1.0 lb / 0.5 kg |
