ART S8-3WAY 8-Channel 3-Way Microphone Splitter

ไมโครโฟนสปริทเตอร์ ART S8-3WAY eight channel three way microphone splitter, One direct and two transformer isolated outputs per channel, Balanced XLR input and 3 balanced XLR outputs per channel, High quality passive interface

ไม่รวมภาษีมูลค่าเพิ่ม…

฿10,500.00

สอบถามและสั่งซื้อสินค้า

Description

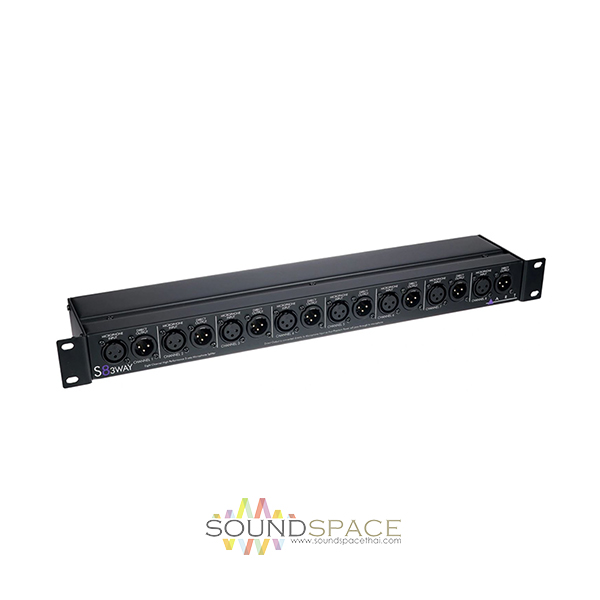

ART S8-3WAY 8-Channel 3-Way Microphone Splitter

ไมโครโฟนสปริทเตอร์ ART S8-3WAY eight channel three way microphone splitter, One direct and two transformer isolated outputs per channel, Balanced XLR input and 3 balanced XLR outputs per channel, High quality passive interface

The ​S8-3WAY​ eight channel three way microphone splitter is ideal for live sound, recording and broadcast applications where microphone and XLR balanced line level input signals have to go to multiple mix locations.

Each channel provides one XLR input, one XLR direct output with two additional transformer isolated XLR outputs for a total of 3 balanced outputs from each single microphone input signal.

Typical uses would include sending 8 direct signals through the ​S8-3WAY​ to a main Front-of-house mixer, with additional feeds going to a monitor mix station while transformer balanced isolated feeds are sent to remote recording desk or used for a broadcast feed.

The ART ​S8-3WAY​ features the same high-quality musical sounding transformers used in the popular ART ​S8​, and is housed in a standard 1U space rack-mountable steel chassis designed for years of reliable operation.

Features:

  • High quality passive interface
  • Eight high performance transformers
  • One direct and two transformer isolated output per channel
  • Balanced XLR input and 3 balanced XLR per channel
  • Extremely wide frequency response
  • Extremely low voltage insertion loss
  • Reversible rack ears for added system flexibility
  • Live Sound, Permanent/Fixed install, Studio applications

Specifications

Inputs 8 x XLR
Outputs 8 x XLR Direct
16 x XLR Transformer Isolated
Rack Height 1
Packaging Info
Package Weight 4.5 lb
Box Dimensions (LxWxH) 20.9 x 7 x 3.5″
