ลำโพง ALTO TS315 2-Way Powered Loudspeaker 15″

Name: ลำโพง ALTO TS315 2-Way Powered Loudspeaker 15"
Price: 12000.00 THB
Availability: InStock

ตู้ลำโพงกลางแจ้งแบบมีกำลังขยายในตัว ALTO TS315 Truesonic Series มีขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลม 1.4 นิ้ว High-Frequency Driver, มีกำลังขยายในตัว 1000 วัตต์ RMS 2000 วัตต์ peak, Class-D Amplification, ตอบสนองความถี่ 50 Hz to 20 kHz, For Live Stage, Theater & DJ Setups

ราคาสินค้าเป็นราคาใบละ….ไม่รวมภาษีมูลค่าเพิ่ม…

~~฿18,500.00~~ ฿12,000.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบมีกำลังขยายในตัว (Active) Tag: ALTO

Description

Alto Professional Truesonic TS315 15″ 2-Way Powered Loudspeaker 2000W

The Alto Professional Truesonic TS315 is a 15″ 2-way 2000W powered loudspeaker offering full coverage and high output for musicians, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 2000 watts of Class-D amplification driving the 10″ woofer and 1.4″ high-frequency compression driver for a frequency response of 50 Hz to 20 kHz and a maximum SPL of 134 dB.

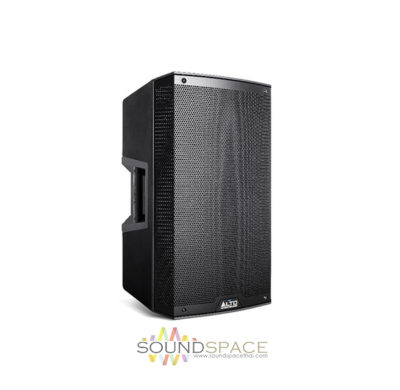

The lightweight trapezoidal injection-molded polypropylene enclosure can be placed atop a standard speaker pole, wall- or ceiling-mounted via an optional bracket, or hung from integral M10 suspension points. Additionally, the cabinet angles accommodate floor positioning for wedge configurations. Integrated carry handles enable easy transport and positioning.

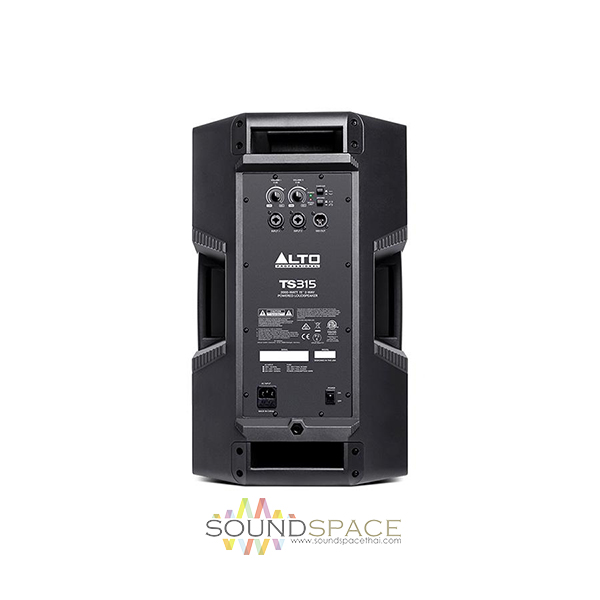

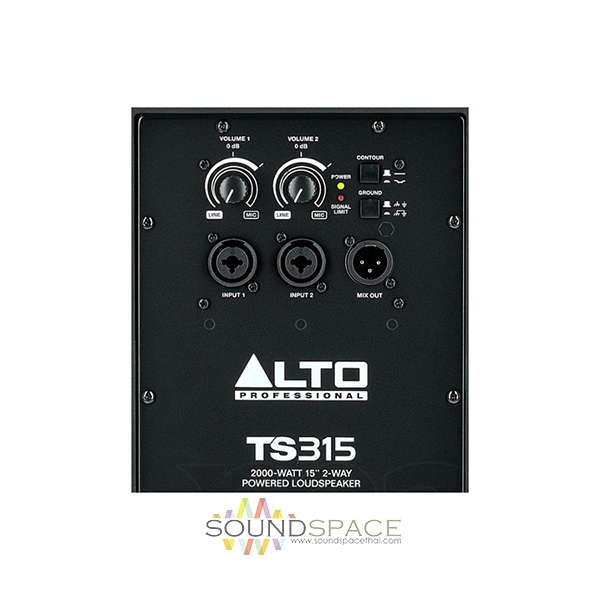

The XLR-1/4″ TRS combo inputs accept sources such as mixer outputs, media players, instruments, or dynamic microphones. Level and tone adjustments are possible via the volume knobs and contour switch. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TS310 is designed and tuned in the USA, and includes an IEC power cable.

Features:

Bi-amplified design with a 15″ long-excursion woofer and a 1.4″ neodymium high-frequency compression driver
Class-D amplification delivers 2000W peak (1000W continuous)
Horn-loaded HF driver incorporates a precision waveguide and an enhanced heat sink
Contour switch adds a 3 dB boost in the low and high frequencies
Rear-panel volume controls with detents
Built-in electronic clip, thermal, and transducer overdrive protection
Ground-lift switch impedes hum from ground loops
Lightweight and durable enclosure supports configuration as a main speaker or floor wedge
Pole mount via 36mm socket, wall or ceiling mount via TSB810 bracket (available separately), or hang via integral M10 suspension points

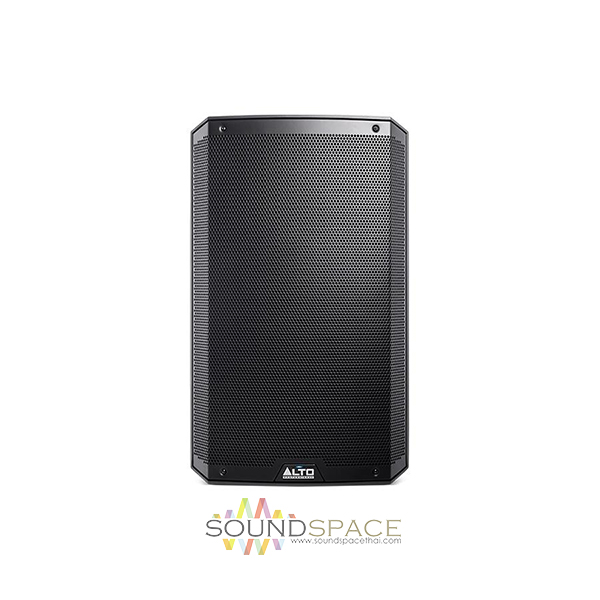

Metal grille protects speaker components against punctures and dents
Designed and tuned in the USA

Specifications

Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)	LF Driver: 15-inch (381 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide	Crossover: 2 kHz
Maximum SPL: 134 dB peak, 131 dB continuous (dB SPL @ 1 m)	Frequency Response: 50 – 20 kHz (+/- 3 dB)
Frequency Range: 43 Hz – 22 kHz (-10 dB)	Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3dB Boost	Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch	Indicators: 2 x Power LED (front and rear), Clip limiter LED
Protection: Electronic clip, Thermal and transducer overdrive protection	Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz	Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor	Dimensions: (H x W x D): 25.7” x 16.6” x 15.4” / 652mm x 421mm x 392mm
Net Weight: 41.3 lbs. / 18.8 kg.	Design Origin: Designed and tuned in the USA
Accessories: TSB125 Bracket, TS215 Cover
