ลำโพง ALTO TS312 2-Way Powered Loudspeaker 12″
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยายในตัว ALTO TS312 Truesonic Series มีขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลม 1.4 นิ้ว High-Frequency Driver, มีกำลังขยายในตัว 1000 วัตต์ RMS 2000 วัตต์ peak, Class-D Amplification, ตอบสนองความถี่ 53 Hz to 20 kHz, For Live Stage, Theater & DJ Setups
ราคาสินค้าเป็นราคาใบละ….ไม่รวมภาษีมูลค่าเพิ่ม…
฿17,000.00 ฿11,000.00
Description
Alto Professional Truesonic TS312 12″ 2-Way Powered Loudspeaker 2000W
ตู้ลำโพงกลางแจ้งแบบมีกำลังขยายในตัว ALTO TS312 Truesonic Series มีขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลม 1.4 นิ้ว High-Frequency Driver, มีกำลังขยายในตัว 1000 วัตต์ RMS 2000 วัตต์ peak, Class-D Amplification, ตอบสนองความถี่ 53 Hz to 20 kHz, For Live Stage, Theater & DJ Setups
Alto’s TS3 Series Loudspeakers are versatile and robust, whilst remaining lightweight and delivering impressive throughput. TS3 Series speakers solve any potential issue that could appear on-site by the very nature of their design.
All models come with a 2000W (Peak) amplifier, new low-frequency & horn-loaded high-frequency drivers and a higher sound pressure level capacity as a direct result. An updated control surface gives clearer indications, and in combination with the standard pole socket and integral M6 suspension points make set-up a simple process.
The Alto TS312 is a 2000W 12” 2-way powered loudspeaker, with a frequency response of 46Hz-22kHz, and a crossover frequency of 2kHz. TS3 Series loudspeakers feature electronic clip, thermal and transducer overdrive protection, and are designed and built in the USA.
Features:
- 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- High quality, lightweight, cabinet design for easy transport, set up and installation
- Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points

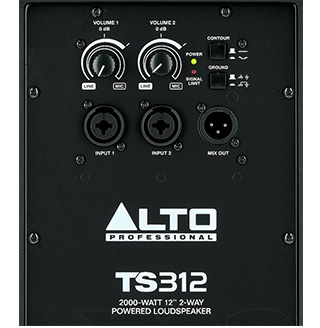

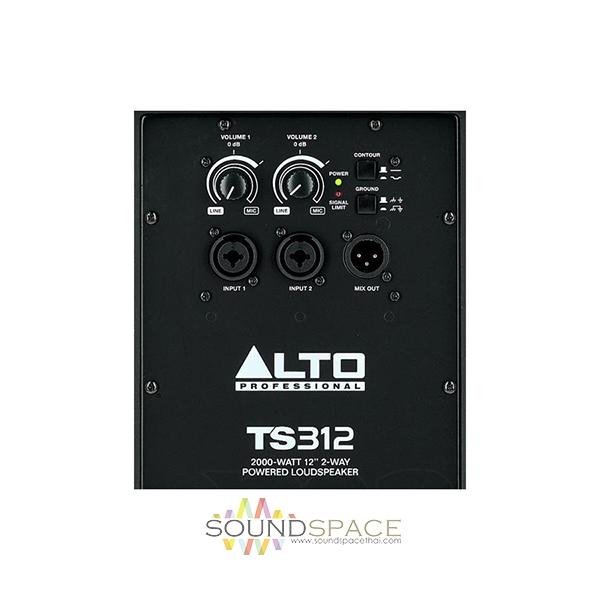

- Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
- Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability
- Design Origin: Designed and tuned in the USA.
Specifications
| Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF) | LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil |
| HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide | Crossover: 2 kHz |
| Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m) | Frequency Response: 53 Hz – 20 kHz (+/- 3 dB) |
| Frequency Range: 46 Hz – 22 kHz (-10 dB) | Horn Coverage: 90° H x 60° V nominal |
| Equalization: Contour Switch Low and High Frequency +3dB Boost | Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input |
| Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch | Indicators: 2 x Power LED (front and rear), Clip limiter LED |
| Protection: Electronic clip, Thermal and transducer overdrive protection | Power Connection: IEC with Mains Fuse |
| AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz | Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille |
| Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor | Dimensions: (H x W x D): 23.8” x 13.9” x 13.8” / 605mm x 354mm x 350mm |
| Net Weight: 35.9 lbs. / 16.3 kg. | Design Origin: Designed and tuned in the USA |
| Accessories: TSB125 Bracket, TS212 Cover |
