มิกเซอร์ดิจิตอล ALLEN & HEATH SQ6 Digital Mixing Console

Name: มิกเซอร์ดิจิตอล ALLEN & HEATH SQ6 Digital Mixing Console
Price: 166800.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Allen & Heath SQ-6, 24 Microphone Preamps, 7″ Capacitive Touchscreen, 24+1 faders, 96 kHz FPGA Processing, Eight Stereo FX Engines with Returns, Channel LCD Displays, 16 Assignable SoftKeys, 32 x 32 USB Audio Interface, AES Output, 12 Stereo Mixes + LR

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿211,110.00~~ ฿166,800.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: ALLEN & HEATH

Description

Allen & Heath SQ-6 48-Channel / 36-Bus Digital Mixer

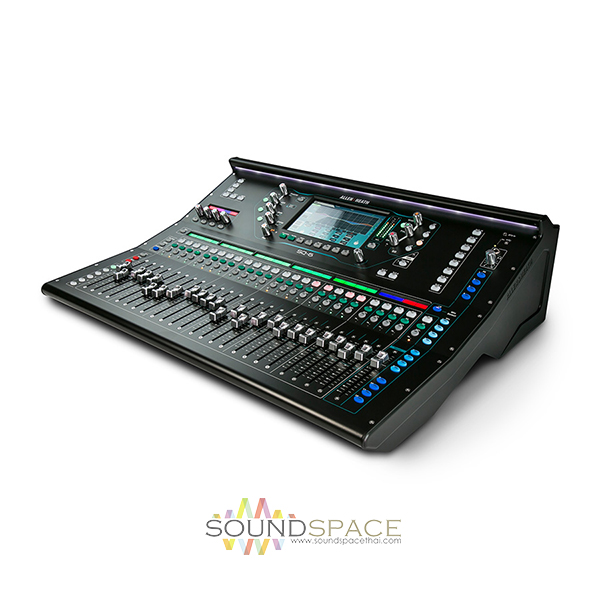

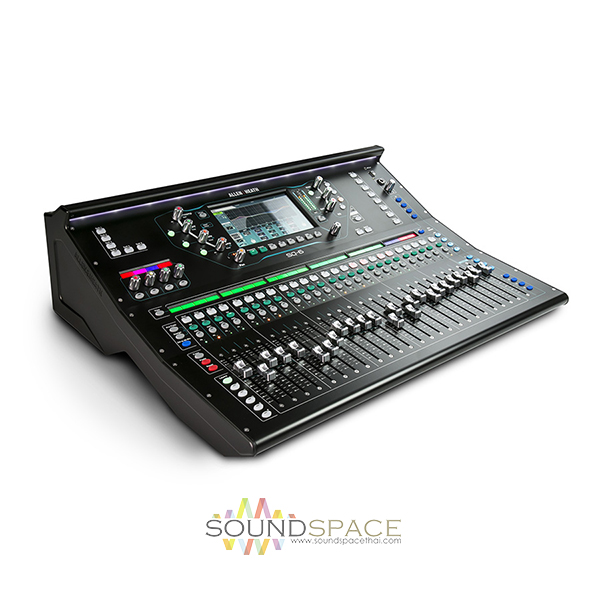

The Allen & Heath SQ-6 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-6 features 24+1 motorized faders and 24 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer’s 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-6 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ’s DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.

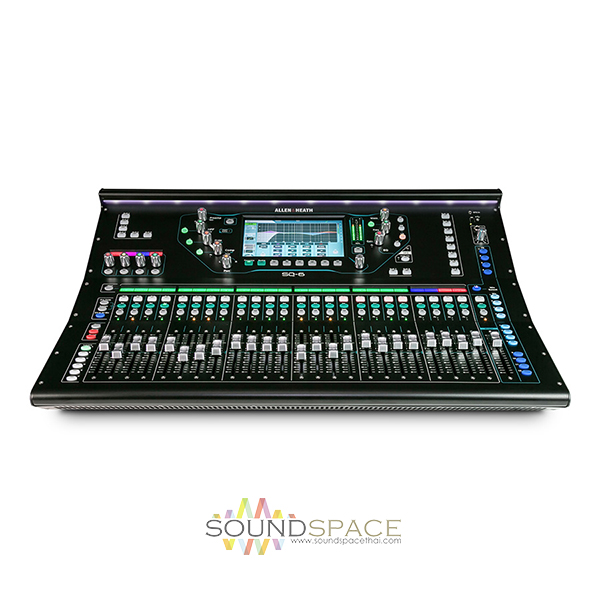

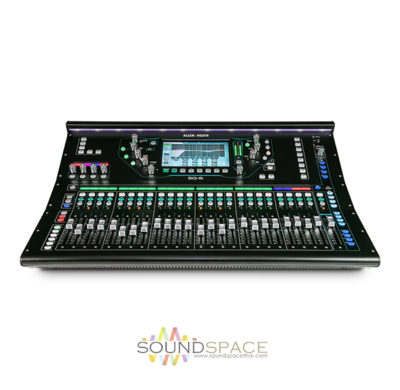

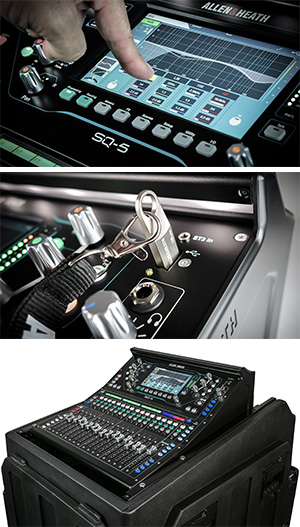

The front panel is centered around the mixer’s 7″ capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-6 offers softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, making it well suited for virtual sound checks and studio mixing.

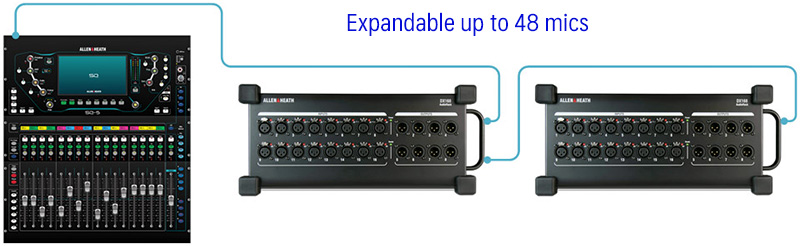

The SQ-6 offers expansion options via Allen & Heath’s stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander. The Allen & Heath SQ-6 ships with a power cord.

Features:

96kHz FPGA processing, 48 Input Channels
DEEP Processing ready, 25 Faders / 6 Layers
12 Stereo mixes + LR, 3 Stereo Matrix
8 Stereo FX Engines + dedicated returns
7” capacitive touchscreen, Channel LCD displays
SLink port for remote audio / expansion
64ch I/O Port for audio networking, 32×32 USB audio interface
SQ-Drive direct recording to USB
AES output, Chromatic channel metering
Integrated LED illumination, Dedicated physical controls
16 Assignable SoftKeys, 4 Assignable Soft Rotaries

Specifications

Mic/Line Inputs	Mic/Line Inputs: Balanced XLR, fully recallable Input Sensitivity: -60 to +0 dBu Switchable Pad: -20 dB Analog Gain: 0 to +60 dB, 1 dB steps Maximum Input Level: +30 dBu Input Impedance: >5 kOhms THD+N, Unity Gain (0 dB): 0.002% -92 dBu (20 Hz – 20 kHz, AES direct out, @ 0 dBu 1 kHz) THD+N, Mid-Gain (+30 dB): 0.003% -91 dBu (20 Hz – 20 kHz, AES direct out, @ -30 dBu input 1 kHz) Phantom Power +48V (+3V / -2V)
Stereo Line Inputs	ST1, ST2 Connectors: Balanced, 1/4″ / 6.35 mm TRS ST3 Connector: Unbalanced, stereo 1/8″ / 3.5 mm Input Sensitivity (ST1, ST2 / ST3): Nominal +4 dBu ST1, ST2 / 0 dBu ST3 Trim: +/-24 dB Maximum Input Level (ST1,ST2 / ST3): +22 dBu / +18 dBu Input Impedance: >7 kOhms

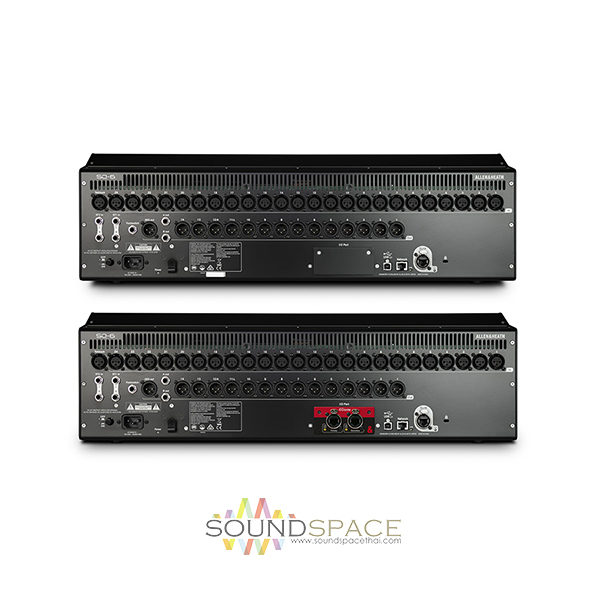

Analog Outputs	Outputs 1-14: Balanced, XLR Outputs A and B: Balanced 1/4″ / 6.35 mm TRS Source: Patchable Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB meter reading Maximum Output Level: +22 dBu Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz)
AES Digital Audio Outputs	AES Digital Output: Balanced XLR, 2 channel 96 kHz sampling rate (default with SRC bypassed) Switchable Output Sample Rates: 44.1, 48, 88.2 (96 kHz) 2.5 Vpp balanced terminated 110 Ohms
Network Connections	Connection Neutrik EtherCON (RJ45) dsnake mode (48 kHz devices): 64 channels assignable, compatible with AR2412, AR84, AB168, ME dx mode (96 kHz Devices): 32 channels assignable, compatible with DX168 gigaACE (96 kHz Devices): 128 channels assignable, compatible with dLive, SQ and DXHub* Inputs: Fully patchable Outputs: Fully patchable Sync/SRC: Assignable as master audio sync for all modes*SRC 64 channel
I/O Expansion Module	Multi-channel IO option module Inputs: Fully patchable Outputs: Fully patchable Sync/SRC assignable as master audio sync
Audio Specifications	Measured balanced XLR in to XLR out, 0 dB gain, 0 dBu input
Dynamic Range	112 dB
Frequency Response	20 Hz to 20 kHz (+0/-0.5 dB)
Headroom	+18 dB
Operating Level	Internal Operating Level: 0 dBu
THD+N	THD+N, Mic/Line Routed to Main L/R Out: Unity gain faders @ 0 dB, 0.006%, -84 dBu (20 Hz to 20 kHz)
dBFS Alignment	+18 dBu = 0 dBFS (+22 dBu at XLR output)
Metering Accuracy	Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu at XLR out)
Metering	Main Meter Type: 2 x 12 segment, fast (peak) response Channel Meter Type: Single point metering, fully programmable color/brightness Peak Indication: -3 dBFS (+19 dBu at XLR out), multi-point sensing
Sampling Rate	96 kHz
Bit Depth	Uses XCVI core custom bit widths in algorithms, up to 96-bit
Latency	<0.7 ms, local mic input routed to main L/R. (direct, no EQ/ effects)
Faders	3.9″ / 100.0 mm
Touch Screen	7.0″ / 177.8 mm, capacitive, 800 x 480 resolution, 24-bit RGB
Softkeys	16
Groups	Mute Groups: 8 DCA Groups: 8
Network	TCP/IP Ethernet for MIDI and control
MIDI	TCP/IP and USB Type-B
Footswitch	Single or dual, momentary or latching
Source	Channels 1-48: Fully patchable Global Source: SQ-Drive or USB Type-B streaming
Polarity	Normal/inverted
Trim	-24 to +24 dB
High Pass Filter	12 dB/octave 20 Hz to 2 kHz
Insert	Insert (Pre EQ/Comp): Fully patchable
Delay	Up to 341 ms
Gate	Gate: Patchable sidechain Sidechain Filter: Hi-pass (20 to 5 kHz), Band-pass (120 Hz to 10 kHz), Lo-pass (120 Hz to 20 kHz) Threshold / Depth: -72 dBu to +18 dBu / 0 to 60 dB Attack / Hold / Release: 50 μs to 300 ms / 10 ms to 5 seconds / 10 ms to 1 second
Parametric Equalizer	PEQ: 4-band fully parametric, 20 Hz to 20 kHz, ±15 dB Band 1, Band 4: Selectable shelving (Baxandall), bell Band 2, Band 3: Bell Bell Width: Variable Q, 1.5 to 1/9th octave
Compressor	Compressor: Patchable sidechain Sidechain Filter: Hi-pass (20 to 5 kHz), Band-pass (120 Hz to 10 kHz), Lo-pass (120 Hz to 20 kHz), Q=1 Threshold / Ratio: -46 dBu to 18 dBu / 1:1 to infinity Attack / Release: 30 μs to 300 ms / 50 ms to 2 seconds Knee: Soft/hard Detector Response: Peak/RMS switchable Parallel Path Compression: Dry/wet -infin to 0 dB
Channel Direct Out	Follow fader, mute, mute group, DCA (global all channels)
Source Selection	Post-Preamp, Post-HPF, Post Gate, Insert Return, M Post PEQ, Post Comp, Post Delay Trim: -∞ to 10 dB per channel
Insert	Insert (Pre EQ/Comp): Fully patchable
Delay	Up to 682 ms
Graphic Equalizer	28 bands 31 Hz to 16 kHz, ±12 dB gain, constant 1/3 octave
FX	Internal FX: 8 x RackFX engine, Send>Return or Inserted (4 dedicated fx bus) Types: SMR Reverb, StereoTap Delay, Gated Reverb, ADT, BlueChorus, Symphonic Chorus, Flanger, Phaser 8 x Dedicated Stereo FX Returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
PAFL	PFL or stereo in-place AFL, 0 to -24 dB trim, PAFL Delay up to 682 ms
Talkback	Dedicated input, assignable to any mix, Gain, Pad, 48 V, 12 dB/oct HPF
Signal Generator	Assignable to any mix, (sine/white/pink/bandpass noise)
RTA Real Time Analyzer	31-bands, 1/3 octave 20 Hz to 20 kHz, follows PAFL source
Recorder	SQ-Drive: USB Type-A Stereo Record: 2-channel, WAV, 96 kHz, 24-bit, source fully patchable Stereo Playback: 1/2-channel, WAV, 44.1, 48, 96 kHz, 16-/24-bit, source fully patchable Multitrack Record: 16-channel, WAV, 96 kHz, 24-bit, track sources fully patchable Multitrack Playback: 16-channel, WAV, 96 kHz, 24-bit fully patchable
USB Audio	USB Audio Streaming: USB Type-B, Core Audio compliant, ASIO/WDM for Windows Send (Upstream): 32-channel, 96 kHz, 24-bit Return (Downstream): 32-channel, 96 kHz, 24-bit
Power	100 to 240 VAC, 50 / 60 Hz Maximum Power Consumption:
Operating Temperature	32 to 104°F / 0 to 40°C

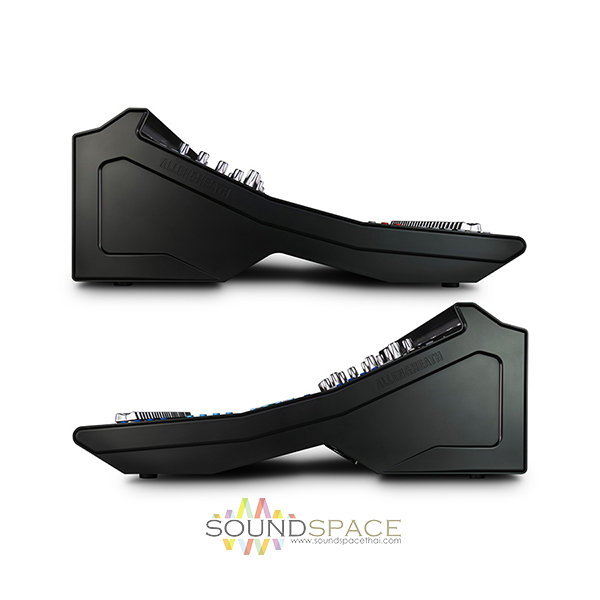

Dimensions (W × H × D)	25.1 x 20.3 x 7.8″ / 638.0 x 514.9 x 198.0 mm
Weight	29.3 lb / 13.3 kg
