มิกเซอร์ดิจิตอล ALLEN & HEATH QU-SB Rackmountable Digital Mixer

Name: มิกเซอร์ดิจิตอล ALLEN & HEATH QU-SB Rackmountable Digital Mixer
Price: 53200.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงแบบดิจิตอลสำหรับงานแสดงสดขนาดเล็กแบบเข้าแร็ค, 16 Mic/Line Inputs, 16 Recallable AnalogiQ Preamps, 12 Mix Outputs, 32×32 USB Recording Interface, EQ & Dynamics on Each Input and Output, RTA with Peak Band Indicator, 4 Built-In FX Engines, iPad App for Wireless Mixing

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿66,580.00~~ ฿53,200.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: ALLEN & HEATH

Description

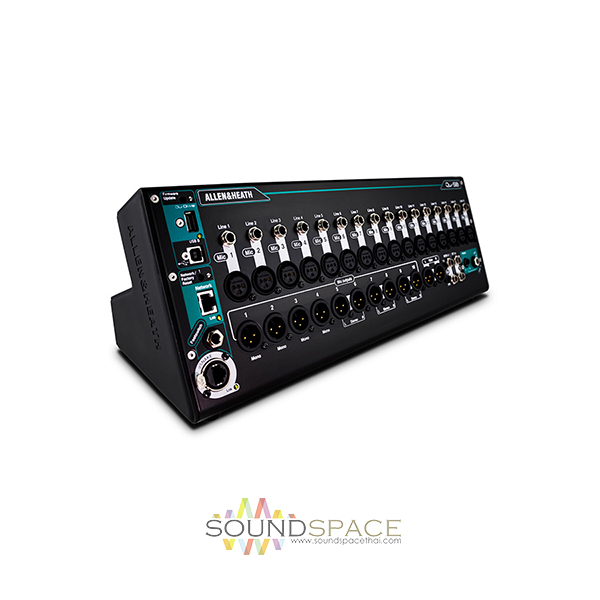

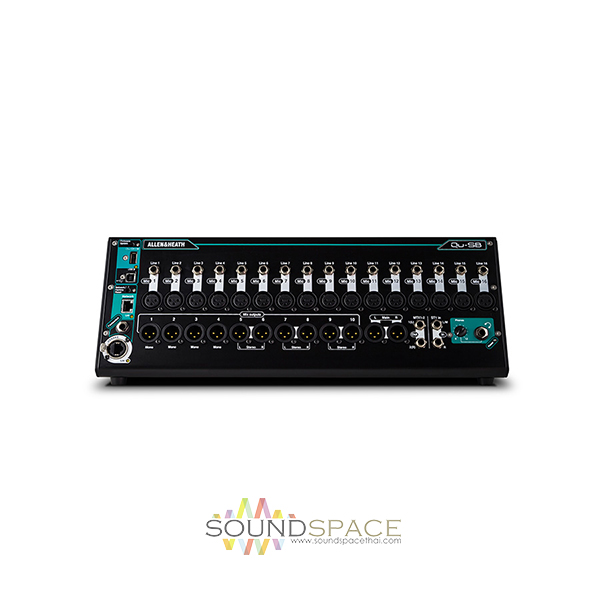

Allen & Heath Qu-SB Portable 18-In/14-Out Digital Mixer

The Allen & Heath Qu-SB is an 18-in/14-out rack-mountable, console-less digital mixer that doubles as a 32×32 USB recording interface. Featuring 16 of the company’s recallable AnalogiQ microphone preamps, and powered by a 5-core ARM processor, the Qu-SB provides a variety of integrated effects and processing, including channel-independent 4-band parametric EQs, compressors, delay, and reverb.

The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-SB is designed to be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Features:

16 Mono Inputs (TRS + XLR) 1 Stereo Input (TRS)
12 on-board Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
1 Stereo Matrix Out (TRS)
Qu-32 Core inside (32 Mono + 3 Stereo Input Channels)
Up to 11 Monitor Mixes (4 mono + 7 stereo)
4 FX Engines, 4 FX Sends/Returns, 4 Mute Groups, 4 DCA Groups
Recallable AnaLOGIQ Preamps
iLive FX Library, dSNAKE Remote Audio Port expansion up to 38 inputs
Automatic Mic Mixer, 32×32 USB Audio Interface
Qu-Drive direct Multitrack Recording/Playback on USB drives
Compatible with ME Personal Mixing System
Qu-Pad iPad App, Qu-You iPhone/Android personal monitoring app
Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor and delay on all Inputs
Insert, 1/3 octave GEQ, 4-band PEQ, compressor and delay on all Mix outputs
Built-in Signal Generator, RTA with Peak Band indication, 19” Rack Mountable with optional rack ears

Specifications

Inputs

Mic/Line Inputs

Balanced, XLR and 1/4″ TRS jacks, fully recallable
Input Sensitivity: -60 to +5 dBu / -50 to +15 dBu (XLR / TRS)
Analog Gain: -5 to +60 dB, 1 dB steps
Maximum Input Level: +19 / +29 dBu
Input Impedance: >5 kOhms (XLR), >10 kOhms (TRS)
THD+N, Unity Gain 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)
THD+N, Mid Gain +30 dB: 0.001%, -83 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)

Stereo Line Inputs

ST1 Connector: Balanced, 1/4″ (6.3 mm) TRS jacks, half-normalled
Input Sensitivity (ST1): +4 /0 dBu, nominal
Trim: ±24 dB
Maximum Input Level (ST1): +22 /+18 dBu
Input Impedance: >7 kOhms

Outputs
Line Outputs	Mix 1 to 10 & LR Out: Balanced XLR Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB meter reading Maximum Output Level: +22 dBu Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz)
Stereo Output	MTX 1-2: Balanced 1/4″ (6.3 mm) TRS jacks Source (Alt Output/2 Trk Output): Patchable/LR post fade Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB meter reading Maximum Output Level: +22 dBu Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz)

dSNAKE
Inputs	Remote source for CH1-32, ST1, ST2, ST3
Outputs	Patchable from Mix 1-10, LR, Grp 1-8, MTX 1-4 Compatible with AudioRacks AR2412, AR84, AB168 Compatible with ME personal mixing system

System
Dynamic Range	112 dB
Frequency Response	20 Hz to 20 kHz (+0/-0.5 dB)
Headroom	+18 dB
Operating Level	Internal Operating Level: 0 dBu
Alignment	dBFS: +18 dBu = 0 dBFS (+22 dBu @ XLR output)
Calibration	Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu @ XLR output)
Indicators	Meter Peak Indication: -3 dBFS (+19 dBu @ XLR out), multi-point sensing Meter Signal Indication: -48 dBFS (-26 dBu @ XLR out) Meter Type: Fast (peak) response
Sampling Rate	48 kHz ±100 PPM
Converters	24-bit Delta-Sigma
Latency	1.2 ms (local XLR in to XLR out) 0.7 ms (local XLR in to AES out)
Operating Temperature	32 to 95°F (0 to 35°C)
Power	Mains Power: 100-240 VAC, 50/60 Hz, 150 W maximum

USB

USB Audio

Qu-Drive: USB A
Device: Use a USB hard drive (not a USB key)
Stereo Record: 2-channel, WAV, 48 kHz, 24-bit, patchable
Stereo Playback: 2-channel, WAV, 44.1 or 48 kHz, 16- or 24-bit, to ST1
Multitrack Record: 18-channel, WAV, 48 kHz, 24-bit, patchable
Multitrack Playback: 18-channel, WAV, 48 kHz, 24-bit
USB Audio Streaming: USB B, Core Audio compliant
Send (upstream): 32-channel, WAV, 48 kHz, 24-bit
Return (downstream): 32-channel, WAV, 48 kHz, 24-bit

Controls
Softkeys	10
Groups	Mute Groups: 4 DCA Groups: 4
Network	TCP/IP Ethernet for MIDI commands and iPad app

Input Processing
Source	Channels 1 to 32: Local, dSNAKE, or USB ST1, ST2: Local, dSNAKE, or USB ST3: Local, dSNAKE, or USB Stereo USB Global Source: Qu-Drive or USB B Streaming
Stereo Linking	Stereo Linking: Odd/even input pairs Parameters Linked: EQ, dynamics, insert, delay, assignments, sends Link Options: Preamp, polarity, sidechains, fader, mute, pan
Polarity	Normal & reverse
HPF	12 dB/octave, 20 Hz to 20 kHz
Insert	Assign FX1-4 into input channels
Delay	Up to 85 ms
Gate	Self-key sidechain Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 s Release: 10 ms to 1 s
Equalizer	4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB Band 1: Selectable LF shelving (Baxandall), bell Band 2 & 3: Bell Band 4: Selectable HF shelving (Baxandall), bell Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor	Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Peak manual, RMS manual, SlowOpto, PunchBag

Mix Processing
USB Output	Channel Direct Out to USB: Follow fader, follow mute (global options) Source Select (Global): Post-preamp, pre-EQ, post-EQ, post-delay
Insert	Assign FX into Mix channels
Delay	Up to 170 ms
Equalizer	Graphic EQ: Constant 1/3 octave, 28 bands from 31 Hz to 16 kHz, +/-12 dB Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB Band 1: Selectable LF shelving (Baxandall), bell Band 2 & 3: Bell Band 4: Selectable HF shelving (Baxandall), bell Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor	Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Peak manual, RMS manual, SlowOpto, PunchBag
Effects	Internal FX: 4x RackFX engines, Send>Return or Inserted Types: Reverbs, delays, gated reverbs, ADT, chorus, symphonic chorus, phaser, flanger 4x Dedicated Stereo FX Returns: Fader, pan, mute, routing to Mix/LR, 4-band PEQ

Audio Tools
PAFL	PFL or stereo in-place AFL 0 to -24 dB trim 85 ms delay
Talkback	Assignable to any mix 12 dB/octave HPF
Signal Generator	Assignable to any mix Sine, white, pink, bandpass noise
RTA	31-bands, 1/3 octave 20 Hz to 20 kHz Follows PAFL source

General
Dimensions (WxDxH)	Desk mounted: 17.1 x 6.9 x 6.3″ / 435.5 x 174.5 x 161.0 mm Rack mounted: 19.0 x 5.3 x 7.0″ / 483.0 x 135.4 x 177.0 mm, 4U
Weight	12.7 lb / 5.8 kg
