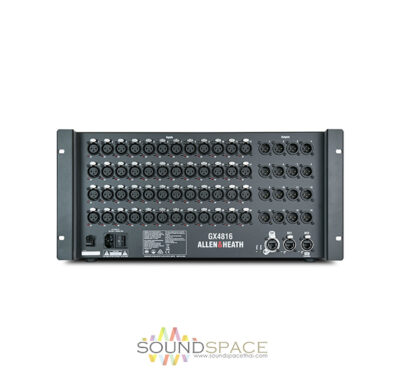

สเตจบ๊อก ALLEN & HEATH GX4816 48×16 XLR In/Out Stage Box
สเตจบ๊อก ALLEN & HEATH GX4816 เป็นชุดพ่วงต่อสำหรับเพิ่มจำนวนอินพุทและเอาท์พุทให้กับระบบสำหรับมิกเซอร์ดิจิตอล Allen&Heath, 48 XLR Input / 16 XLR Output Portable GX Expander w/ DX Sockets, เหมาะสำหรับมิกเซอร์รุ่น dLive และ SQ Series Mixing Systems
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿234,760.00 ฿187,800.00
Description
Allen & Heath GX4816 48×16 XLR In/Out Portable GX Expander with DX Sockets
สเตจบ๊อก ALLEN & HEATH GX4816 เป็นชุดพ่วงต่อสำหรับเพิ่มจำนวนอินพุทและเอาท์พุทให้กับระบบสำหรับมิกเซอร์ดิจิตอล Allen&Heath, 48 XLR Input / 16 XLR Output Portable GX Expander w/ DX Sockets, เหมาะสำหรับมิกเซอร์รุ่น dLive และ SQ Series Mixing Systems
The GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system. Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features:
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
- DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).
- Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)
- Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 3 GX4816 units can be added to an Avantis system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
Specifications
| Inputs | Mic/Line XLR Inputs: Balanced XLR, +48V Phantom Power Mic/Line Preamp: Fully Recallable Input Sensitivity: -60 to +15 dBu Analog Gain: +5 to +60 dB, 1 dB Steps Pad: -20 dB Active Pad Maximum Input Level: +30 dBu (Pad In) Input Impedance: >4 kOhms (Pad Out), >10 kOhms (Pad In) Mic EIN: -127 dB with 15-Ohm Source Phantom Power Indication: Per Socket, Internal or External Phantom Power Sensing, Triggered at 24 V |
| Outputs | Analog XLR Outputs: Balanced, Relay Protected Output Impedance: <75 Ohms Nominal Output: +4 dBu = 0 dB Meter Reading Maximum Output Level: +21 dBu Residual Output Noise: -95 dBu (Muted, 22 Hz to 22 kHz) |
| Temperature | Operating Temperature Range: 32 to 104°F / 0 to 40°C |
| Power | Mains Voltage Operating Range: 100 to 240 VAC, 50/60 Hz Mains Power Consumption: 80 W Maximum |
| Dimensions | 18.9 x 10.0 x 9.0″ / 48.0 x 25.4 x 22.8 cm |
| Weight | 17.6 lb / 8.0 kg |
