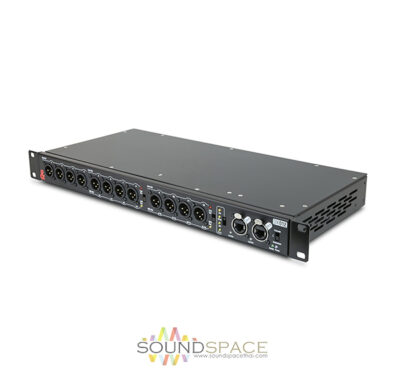

สเตจบ๊อก ALLEN & HEATH DX012 Stage Box

Description

Allen & Heath DX012 12 XLR Output Analogue/AES Portable DX Expander

สเตจบ๊อก ALLEN & HEATH DX012 เป็นชุดพ่วงต่อสำหรับเพิ่มจำนวนอินพุทและเอาท์พุทให้กับระบบสำหรับมิกเซอร์ดิจิตอล Allen&Heath, Expands AHM-64, SQ, 12 x XLR Outputs, Avantis, or dLive, Analog or AES Digital Connections, For IEM Systems or Amplifier Racks

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.

Features:

• Compatible with SQ, Avantis and dLive systems
• 12 XLR Outputs:
  • 1-4 Analogue Line Out
  • 5-8 Analogue Line out or AES Digital out (switchable)
  • 9-12 Analogue Line out or AES Digital out (switchable)
• AES outputs globally switchable between:
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz
• Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
• Redundant DX connection to compatible hardware
• Multiple DX012 can be added to a system:
  • Up to 16 DX012 units can be added to a SQ system
  • Up to 16 DX012 units can be added to an Avantis system
  • Up to 46 DX012 units can be added to a dLive S Class system
  • Up to 22 DX012 units can be added to a dLive C Class system
  • Up to 8 DX012 units can be added to an AHM-64 system
• Rack-mounted (1u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports
