ชุดมิกเซอร์ดิจิตอล ALLEN & HEATH dLIVE S7000+DM64 Pack
ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก S7000 + DM64 Pack ประกอบด้วย
-มิกเซอร์ dLIVE S7000 1 ตัว Dual 12″ Touchscreens, 36 Faders, 26 SoftKeys, 8 XLR Inputs/Outputs, 2 AES Inputs, 3 AES Outputs
-สเตจบ๊อก DM64 1 ตัว 128-channel, 64-bus Digital Snake with 64 Mic Preamps, 16 Stereo Effects Returns, and DSP
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿2,224,090.00 ฿1,779,000.00
Description

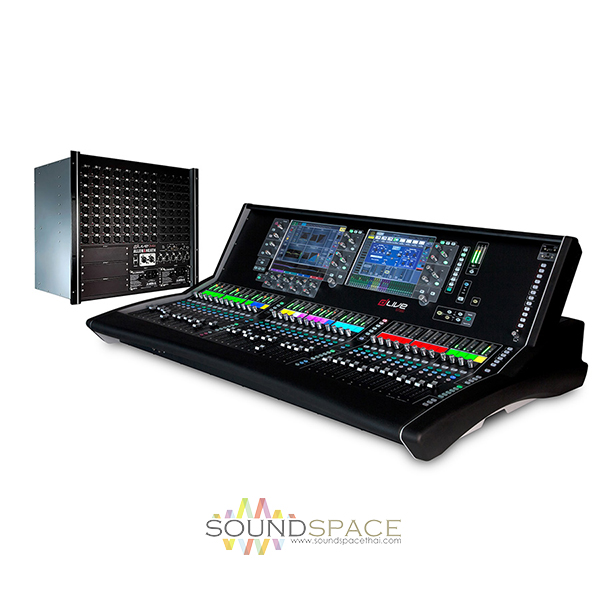

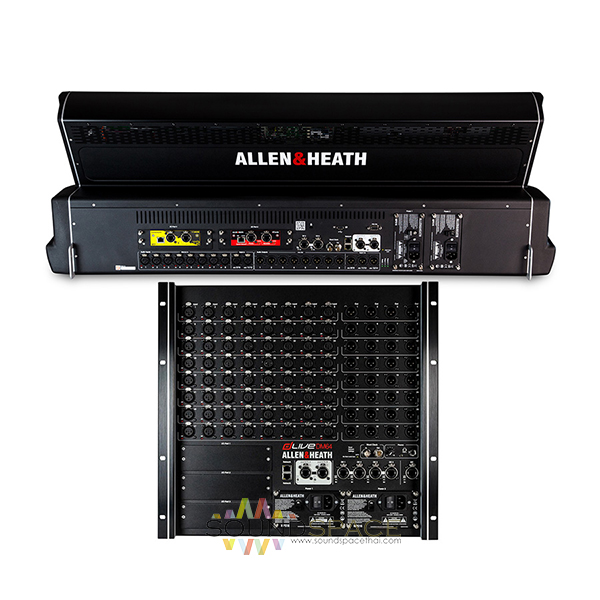

ALLEN & HEATH dLIVE S7000 Digital Mixer + DM64 Stage Box Pack
ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก ALLEN & HEATH S7000 Digital Mixer + DM64 Stage Box Pack ประกอบด้วย
-มิกเซอร์ dLIVE S7000 1 ตัว Control Surface with Dual 12″ Touchscreens, 36 Faders, 26 SoftKeys, 6 Rotary Controls, 8 XLR Inputs/Outputs, 2 AES Inputs, 3 AES Outputs, Word Clock I/O, 2 Option I/O Slots, External VGA Output, Dual GigaACE Link, and DX Expander Link
-สเตจบ๊อก DM64 1 ตัว 128-channel, 64-bus Digital Snake with 64 Mic Preamps, 32 Outputs, 16 Stereo Effects Returns, and DSP

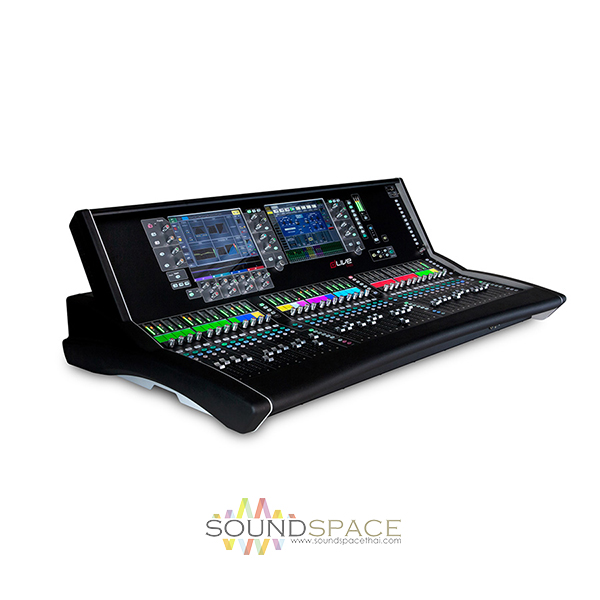

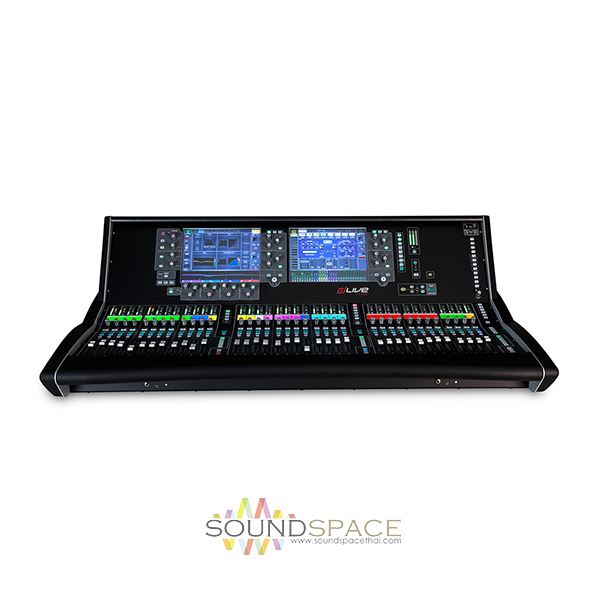

Digital Mixer dLIVE S CLASS S7000
The ALLEN & HEATH S7000 is the largest control Surface in the dLive family, with a whopping 216 assignable fader strips. It features 36 faders over 6 layers, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.
Features:
- Control surface for dLive mixing systems
- Dual 12″ touchscreens deliver intuitive control and at-a-glance visual feedback
- 36 faders and 3 pages of 6 rotary controllers provide superb tactile control
- Assignable inputs, virtual scribble strips, and 26 customizable SoftKeys for ease of use
- Dedicated multimode EQ view for easy sound shaping
- Configurable widget areas provide you with quick access to scenes, meters, effects, and more
- Dual redundant hot-swappable power supply capability offers amazing reliability
- Durable high-grade metal construction

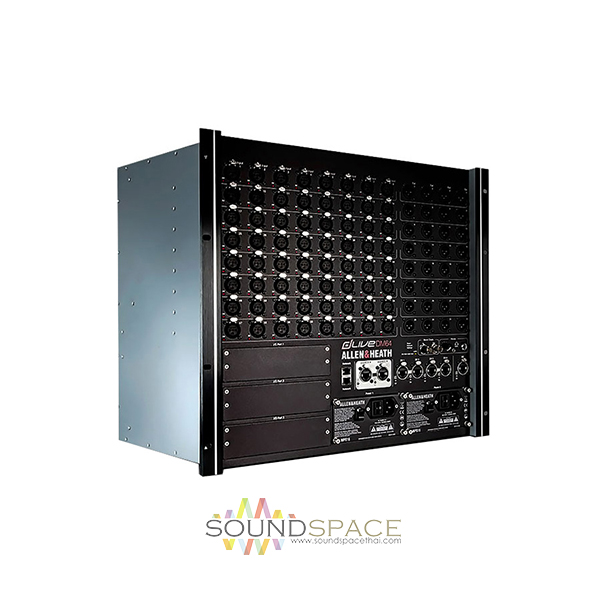

Stage Box Mix Rack dLIVE DM64
The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.
There are 3 sizes of dLive MixRack available. All feature the same mix engine and differ only in the number of analogue I/O. All models can work with the full 128 channels by adding DX expanders or patching digital sources.
Features:
- 32 x 16 digital MixRack with 16 stereo effects returns
- XCVI Core delivers unprecedented performance
- DEEP technology provides a vast assortment of effects
- Variable bit depth yields excellent precision and noise performance
- 96-bit accumulator offers incredible headroom
- Class leading, ultra-low 0.58ms of latency
- Dual redundant hot-swappable power supply capability offers amazing reliability
- 3 x 128-channel option I/O slots support Dante, Waves SG, ACE, and MADI
- ME-1 port for connecting a personal monitoring system
Specifications
Digital Mixer dLIVE S CLASS S7000
| Type: | Digital Console |
| Channels: | 36 channel faders with 6 layers |
| Inputs – Mic Preamps: | 8 x XLR |
| Phantom Power: | 8 |
| Inputs – Digital: | 2 x XLR (AES3) |
| Outputs – Direct: | 8 x XLR (line level) |
| Outputs – Digital: | 3 x XLR (AES3) |
| Outputs – Other: | 2 x 1/4″ (headphones), 2 x 1/8″ (headphones) |
| Data I/O: | 2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports |
| USB: | 3 x USB Type A |
| Computer Connectivity: | Ethernet, USB (2 x 2) |
| Busses/Groups: | 64 bus internal architecture (including all groups, aux, matrix, mains, effects) |
| I/O Expansion Slots: | 2 x card slots (128×128 channels each, iLive/GLD option cards) |
| Word Clock: | In, Out |
| Faders: | 20 x motorized faders |
| EQ Bands: | 4-band parametric EQ |
| Effects: | 16 RackFX |
| Height: | 16.3″ |
| Depth: | 28.7″ |
| Width: | 34.3″ |
| Weight: | 62 lbs. |
Stage Box Mix Rack dLIVE DM64
| Type: | Digital Stage Box Mixer |
| Compatibility: | dLive Surface |
| Channels: | 128 total input channels (64 x 32 immediate I/O) |
| Inputs – Mic Preamps: | 64 x XLR (mic/line) |
| Phantom Power: | 64 channels |
| Busses/Groups: | 64 bus |
| Data I/O: | 2 x EtherCon (GigaACE links), 4 x EtherCon (DX redundant), 2 x Ethernet RJ-45 (network), 1 x EtherCon (ME-1) |
| Computer Connectivity: | Ethernet |
| Word Clock: | In/Out |
| I/O Expansion Slots: | 3 x slots (MADI, Dante, Waves, ACE, SoundGrid) |
| Headphones: | 1 x 1/4″, 1 x 1/8″ |
| EQ Bands: | Parametric, Graphic |
| Effects: | 16 RackExtra FX library |
| Signal Processing: | Dynamics |
| Software: | dLive Editor |
| Rackmountable: | Yes |
| Power Source: | Dual redundant, hot swappable power supply |
| Height: | 18″ (including foot risers) |
| Depth: | 12.3″ |
| Width: | 19″ |
| Weight: | 46 lbs. |
Downloads
ดาวน์โหลด All Documents ALLEN & HEATH dLIVE S7000
ดาวน์โหลด All Software ALLEN & HEATH dLIVE
ดาวน์โหลด All Documents ALLEN & HEATH DM64
