ชุดมิกเซอร์ดิจิตอล ALLEN & HEATH dLIVE C3500+CDM64 Pack
ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก ALLEN & HEATH dLIVE C3500 Digital Mixer + CDM48 Stage Box Pack ประกอบด้วย
-มิกเซอร์ dLIVE C3500 1 ตัว Control Surface with Dual 12″ Touchscreens, 24 Faders, 6 Rotary Controls, 6 XLR Inputs/Outputs, AES Digital I/O
-สเตจบ๊อก CDM64 1 ตัว 128-channel, 64-bus Digital Snake with 64 Mic Preamps, 32 FX Slots, and DSP
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿1,258,620.00 ฿1,006,800.00
Description

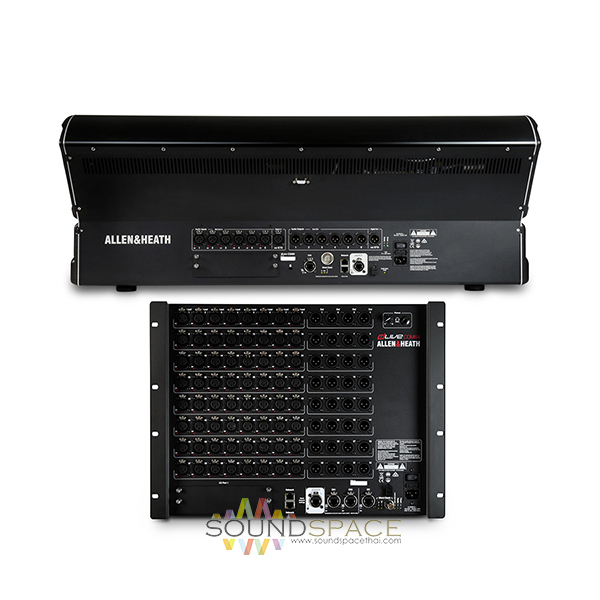

ALLEN & HEATH dLIVE C3500 Digital Mixer + CDM64 Stage Box Pack
ชุดดิจิตอลมิเซอร์พร้อมสเตจบ๊อก ALLEN & HEATH dLIVE C3500 Digital Mixer + CDM48 Stage Box Pack ประกอบด้วย
-มิกเซอร์ dLIVE C3500 1 ตัว Control Surface with Dual 12″ Touchscreens, 24 Faders, 6 Rotary Controls, 6 XLR Inputs/Outputs, AES Digital I/O, and Connection Hub, 19 SoftKeys
-สเตจบ๊อก CDM64 1 ตัว 128-channel, 64-bus Digital Snake with 64 Mic Preamps, 32 FX Slots, and DSP, 24 Outputs

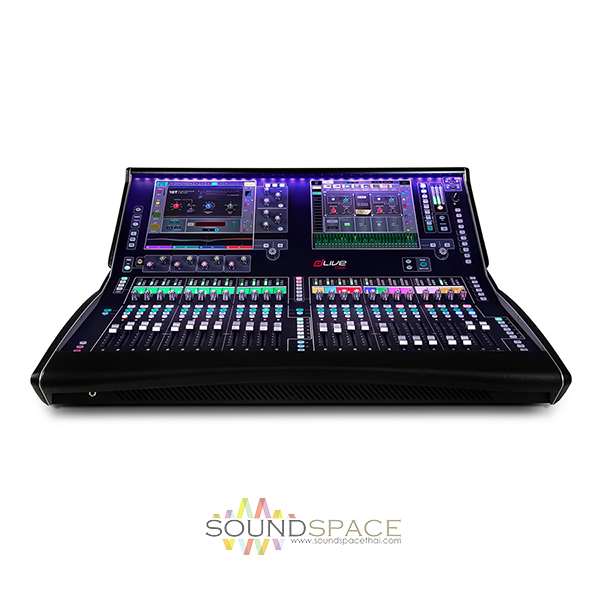

Digital Mixer dLIVE C CLASS C3500
The C3500 is the largest C Class control Surface for the dLive MixRack. It features 24 faders over 6 layers, built-in audio I/O and networking port, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.
Features:
- Control surface for dLive mixing systems
- Dual 12″ touchscreens deliver intuitive control and at-a-glance visual feedback
- 24 faders and 3 pages of 6 rotary controllers provide superb tactile control
- Assignable inputs, virtual scribble strips, and 19 customizable SoftKeys for ease-of-use
- Dedicated multi-mode EQ view for easy sound shaping
- Configurable widget areas provide you with quick access to scenes, meters, effects, and more

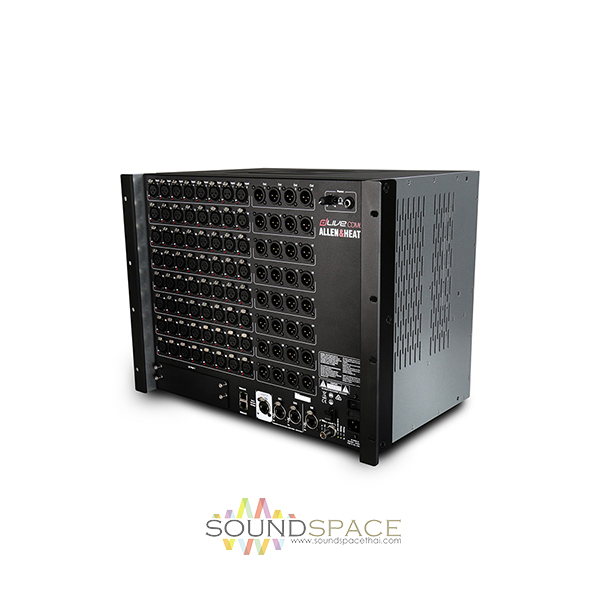

Stage Box dLIVE CDM64
The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.
There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.
Features:
- 64 x 32 digital MixRack with 16 stereo effects returns
- XCVI Core delivers unprecedented performance
- DEEP technology provides a vast assortment of effects
- Variable bit depth yields excellent precision and noise performance
- 96-bit accumulator offers incredible headroom
- Class leading, ultra-low 0.7ms of latency
- 2 128-channel option I/O slots support Dante, Waves SG, ACE, and MADI
- ME-1 port for connecting a personal monitoring system
- Enjoy fader-free mixing from your laptop or touch tablet
Specifications
Digital Mixer dLIVE C CLASS C3500
| Type: | dLive Control Surface |
| Channels: | 24 faders with six layers of mixing |
| Inputs – Mic Preamps: | 6 x XLR (mic/line) |
| Phantom Power: | 6 channels |
| Inputs – Digital: | 1 x XLR (AES/EBU) |
| Outputs – Digital: | 1 x XLR (AES/EBU) |
| Data I/O: | RJ45 (DX5 link), RJ45 (GigaACE link), 2 x Network ports |
| USB: | 2 x Type A |
| Computer Connectivity: | USB (2 x 2) |
| Busses/Groups: | 6 x XLR (line out) |
| I/O Expansion Slots: | 1 x Expansion slot (iLive/GLD option cards) |
| Headphones: | 1 x 1/4″, 1 x 1/8″ |
| Word Clock: | 1 x BNC In/Out |
| Faders: | 24 |
| EQ Bands: | 4-band parametric, graphic EQ |
| Effects: | 16 RackExtra FX |
| Features: | Dual Touch screens feature pinch, swipe, drag’n drop gestures, 19 assignable soft keys, video out |
| Screen: | 2 x 12″ touchscreens |
| Height: | 12.8″ |
| Depth: | 26.2″ |
| Width: | 34.8″ |
| Weight: | 61.7 lbs. |
Stage Box dLIVE CDM64
| Type: | MixRack with dLive Processing Core |
| Channels: | 128 |
| Inputs – Mic Preamps: | 64 x XLR (mic/line) |
| Phantom Power: | 64 channels |
| Outputs – Digital: | 1 x Ethernet (ME-1 port) |
| Outputs – Other: | 32 x XLR (line out) |
| Busses/Groups: | 64 bus architecture (groups, FX, aux, matrix, mains) |
| Data I/O: | 2 x RJ45 (DX link), RJ45 (GigaACE link), 2 x Network ports |
| Word Clock: | 1 x BNC In/Out |
| I/O Expansion Slots: | 1 x I/O Port expansion |
| Headphones: | 1 x 1/4″ |
| EQ Bands: | RackExtra 4-band dynamic EQ |
| Effects: | RackExtra FX portfolio (reverbs, delays, modulation and more) |
| Signal Processing: | RackExtra compressors |
| Features: | LR, LCR and 5.1 mains mode |
| Software: | dLive Editor |
| Rackmountable: | Yes |
| Height: | 10U (18″) |
| Depth: | 12.3″ |
| Width: | 19″ |
| Weight: | 46 lbs. |
Downloads
ดาวน์โหลด All Documents ALLEN & HEATH dLIVE C3500
ดาวน์โหลด Software ALLEN & HEATH dLIVE
ดาวน์โหลด All Documents ALLEN & HEATH CDM64
