ดิจิตอลมิกซ์เซอร์ ALLEN & HEATH CQ-18T Compact Digital Mixer

Name: ดิจิตอลมิกซ์เซอร์ ALLEN & HEATH CQ-18T Compact Digital Mixer
Price: 49999.00 THB
Availability: InStock

มิกเซอร์ดิจิตอลขนาด 18 ช่อง ALLEN & HEATH CQ-18T Ultra-Compact 18in / 8out ระบบประมวลผล FPGA ความละเอียด 96 kHz, 7″ Capacitive Touchscreen, Effects, 24-in/22-out SD Recording/Playback, 24-in/22-out USB Audio Interface, Wi-Fi, and Bluetooth

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿49,999.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: ALLEN & HEATH

Description

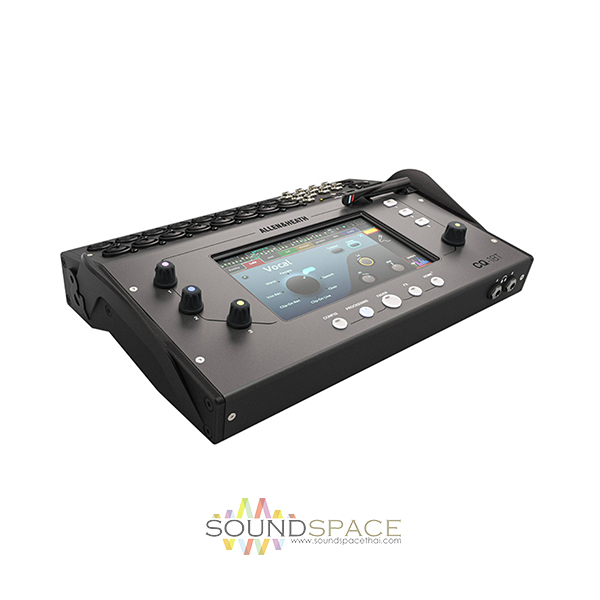

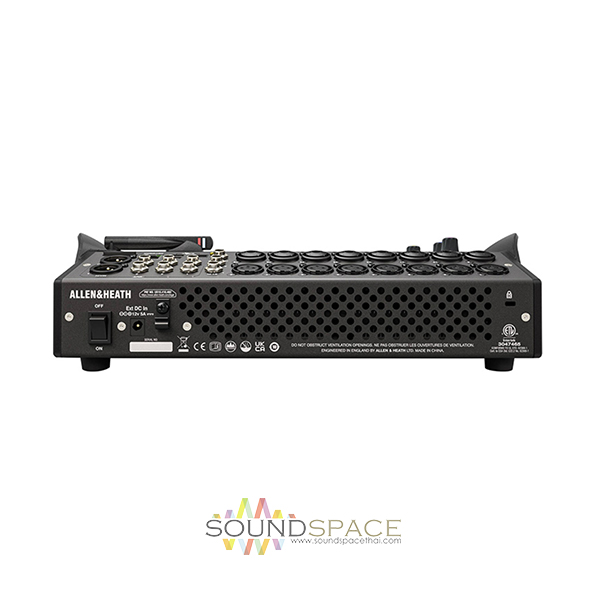

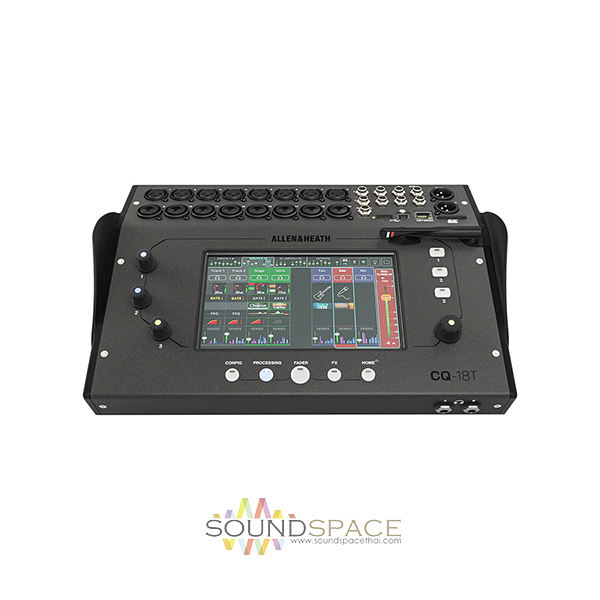

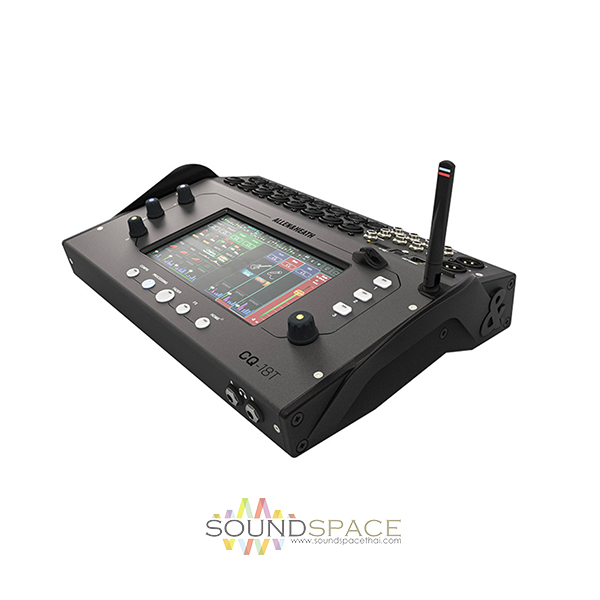

ALLEN & HEATH CQ-18T Compact 18-Channel Digital Mixer with Touchscreen

Mix and record with the Allen & Heath CQ-18T, a compact digital mixer featuring 96 kHz FPGA processing, wireless control via built-in Wi-Fi, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage.

The CQ-18T mixer utilizes a 7″ capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM).

Take control of the full complement of channel strip effects like EQ, compression, and gating that’s available on every channel, and set up several sub mixes for monitoring and effects.

The CQ-18T features 16 mic/line XLR/combo XLR-1/4″ inputs, a pair of balanced 1/4″ TRS inputs, and two XLR main outputs as well as six 1/4″ mix outputs. There are also two assignable headphone outputs. The mixer ships with a 12 VDC power supply.

Features:

A compact 18-channel digital mixer that fits in your backpack
Exhibits outstanding sound quality at 96kHz
16 excellent-sounding microphone preamps and stereo Bluetooth input
Built-in 2.4GHz/5GHz Wi-Fi with auto channel
Preamp Gain Assistant takes all the guesswork out of setting levels
Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake
Instrument-based Quick inputs help you get a great sound quickly
Complete inputs allow for in-depth tweaking
Smart-FX engines include reverb, delay, modulation, and more
Tactile encoders adjust a wide range of parameters with easy-to-use knobs
Custom keys tailor the mixer to your preferred workflow
Responsive touchscreen combines physical control and at-a-glance visual feedback
24-in/22-out recording and playback via an onboard SD card reader
Built-in 24-in/22-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW

Specifications

Mixer

Number of Analog Input Channels	18
Number of Mic Preamps	None
Number of Analog Output Channels	6
Max I/O Capacity	18 x Input / 6 x Output
Mix Routing	1 x Stereo Main LRC 6 x Mono Bus
Groups	None
Presets	None
Display	7″ Touchscreen (Backlit)
Faders & Level Adjustment	None

Signal Processing

Input Polarity	Normal/Reverse
Dynamic Processing	Compressor, Gate
Solo/Mute	Solo, Mute per Input Channel, Bus, Master
Built-In Effects	4 x Stereo Effect (Type Unspecified)
Automatic Mic Mixing	Yes

Digital Audio

Sample Rates

96 kHz

Connectivity

Analog Inputs	8 x XLR 3-Pin Balanced Mic/Line Input 8 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input 2 x 1/4″ TRS Balanced Line Input (1 Stereo Pair)
Analog Outputs	2 x XLR 3-Pin Balanced Main Output (1 Stereo Pair) 6 x 1/4″ TRS Balanced/Unbalanced Mix Output 2 x 1/4″ TRS Unbalanced Stereo Headphone Output
Phantom Power	+48 V
Digital I/O	1 x RJ45 (Network)
MIDI I/O	None
USB	1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service) 1 x USB-B 2.0 (Host Connection)
USB I/O Capacity	24 x Input / 22 x Output
Wireless	Wi-Fi *Built-In
Mobile App Compatible	Yes: Android & iOS App Name: CQ-MixPad Functionality: Access Stored Files, Adjust Settings, Remote Control *As of August, 2023: Check with manufacturer for the most up-to-date compatibility
External Display I/O	None
