ดิจิตอลมิกซ์เซอร์ ALLEN & HEATH CQ-12T Compact Digital Mixer

Name: ดิจิตอลมิกซ์เซอร์ ALLEN & HEATH CQ-12T Compact Digital Mixer
Price: 39999.00 THB
Availability: InStock

มิกเซอร์ดิจิตอลขนาด 12 ช่อง ALLEN & HEAT CQ-12T Ultra-Compact 12in / 8out ระบบประมวลผล FPGA ความละเอียด 96 kHz, 7″ Capacitive Touchscreen, Effects, 16-channel SD Recorder, 16-in/16-out USB Audio Interface, and Bluetooth

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿39,999.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: ALLEN & HEATH

Description

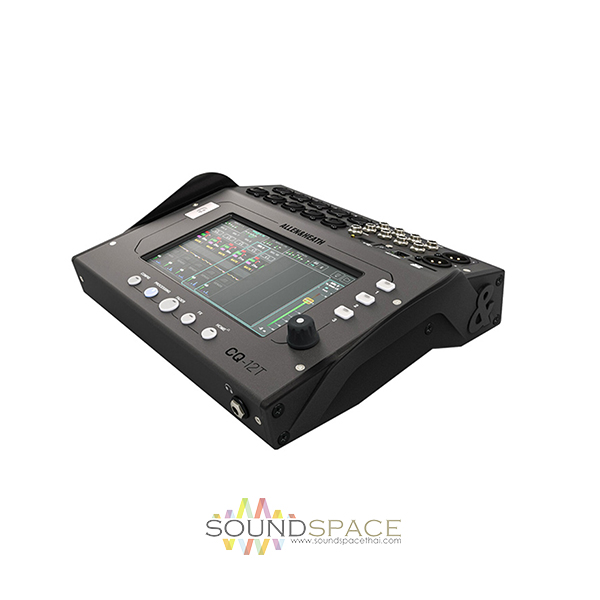

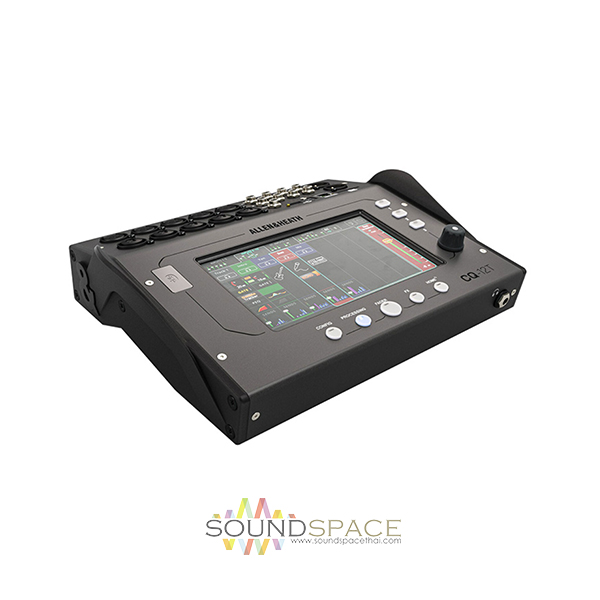

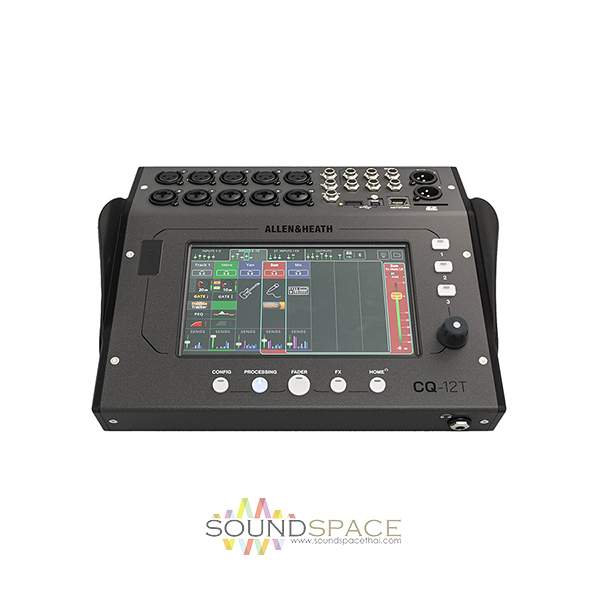

ALLEN & HEATH CQ-12T Compact 12-Channel Digital Mixer with Touchscreen

Mix and record with the Allen & Heath CQ-12T, a compact digital mixer featuring 96 kHz FPGA processing, Bluetooth, wireless control, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage.

The CQ-12T mixer utilizes a 7″ capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM).

Take control of the full complement of channel strip effects like EQ, compression, and gating that’s available on every channel and set up several sub mixes for monitoring and effects.

The CQ-12T features 10 mic/line XLR/combo XLR-1/4″ inputs, a pair (for stereo) of 1/4″ balanced inputs, two balanced XLR main outputs, and six 1/4″ mix outputs. There is an assignable headphone output. The mixer ships with a 12 VDC power supply.

Features:

A compact 10-channel digital mixer that fits in your backpack
Exhibits outstanding sound quality at 96kHz
10 excellent-sounding microphone preamps and stereo Bluetooth input
Preamp Gain Assistant takes all the guesswork out of setting levels
Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake
Instrument-based Quick inputs help you get a great sound quickly
Complete inputs allow for in-depth tweaking
Smart-FX engines include reverb, delay, modulation, and more
Tactile encoder adjusts a wide range of parameters with a single, easy-to-use knob
Custom keys tailor the mixer to your preferred workflow
Responsive touchscreen combines physical control and at-a-glance visual feedback
18 channels of SD card recording and playback via an onboard SD card reader
Built-in 18-in/18-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW

Specifications

Mixer

Number of Analog Input Channels	12
Number of Mic Preamps	None
Number of Analog Output Channels	8
Max I/O Capacity	12 x Input / 6 x Output
Mix Routing	1 x Stereo Main LRC 6 x Mono Bus
Groups	None
Presets	None
Display	7″ Touchscreen (Backlit)
Faders & Level Adjustment	None

Signal Processing

Input Polarity	Normal/Reverse
Dynamic Processing	Compressor, Gate
Solo/Mute	Solo, Mute per Input Channel, Bus, Master
Built-In Effects	2 x Stereo Effect (Type Unspecified)
Automatic Mic Mixing	Yes

Digital Audio

Sample Rates

96 kHz

Performance

dBFS Reference Level

+18 dBu = 0 dBFS

Connectivity

Analog Inputs	5 x XLR 3-Pin Balanced Mic/Line Input 5 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input 2 x 1/4″ TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair)
Analog Outputs	2 x XLR 3-Pin Stereo Main Output (1 Stereo Pair) 6 x 1/4″ TRS Balanced/Unbalanced Mix Output 1 x 1/4″ TRS Unbalanced Stereo Headphone Output
Phantom Power	+48 V
Digital I/O	1 x RJ45 (Network)
MIDI I/O	None
USB	1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service) 1 x USB-B 2.0 (Host Connection)
USB I/O Capacity	16 x Input / 18 x Output
Wireless	Bluetooth *Built-In
Mobile App Compatible	Yes: Android & iOS App Name: CQ-MixPad Functionality: Access Stored Files, Adjust Settings, Remote Control *As of August, 2023: Check with manufacturer for the most up-to-date compatibility
External Display I/O	None
