สเต็จบ๊อก ALLEN & HEATH AB168 Portable AudioRack Stage Box

Name: สเต็จบ๊อก ALLEN & HEATH AB168 Portable AudioRack Stage Box
Price: 57200.00 THB
Availability: InStock

สเต็จบ๊อก Allen & Heath AB168 สำหรับดิจิตอลมิกเซอร์รุ่น GLD และ QU Series, 16 x Mic Preamps with Phantom Power, 8 x XLR Line-Level Outputs, dSNAKE Protocol Over Cat5, Expander Port, Can Be Positioned Up to 393′ from Mixer, Rugged with Rubber Bumpers, Carry Handle, Rackmountable with Optional Kit

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿71,590.00~~ ฿57,200.00

สอบถามและสั่งซื้อสินค้า

Category: การ์ด คอนเวอร์เตอร์ (Card, Converter) Tag: ALLEN & HEATH

Description

Allen & Heath AB168 Portable AudioRack 16 x 8 Audio Interface Stage Box

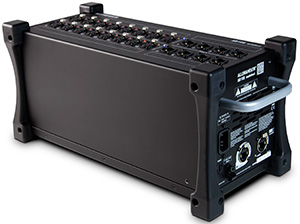

The AB168 Portable Audiorack from Allen & Heath is a rugged audio interface stage box compatible with GLD and Qu digital mixing systems, and ideal for applications such as live sound and installations.

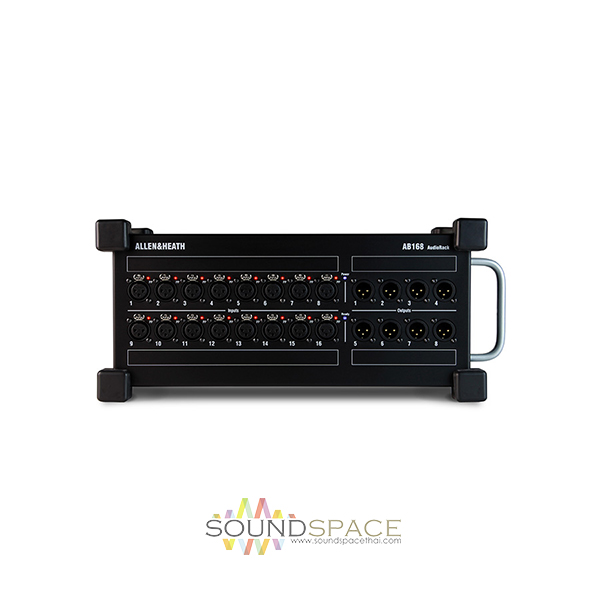

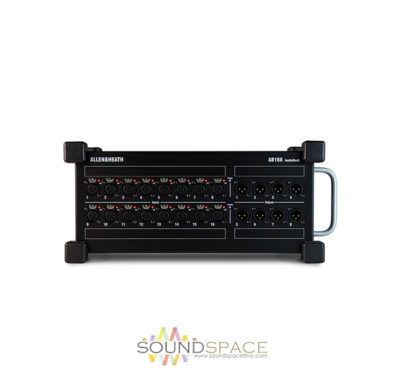

The unit features sixteen mic/line XLR inputs with pristine mic preamps and individual LED phantom power indicators, and eight XLR outputs. It connects to the mixer over a single Cat5 cable using the company’s dSNAKE protocol, allowing for the inputs and outputs to be positioned at up to 393’/120m from the mixer.

For larger systems, the expander port lets you daisy-chain an additional AB168 or AR2412 Audiorack, or interface with the ME personal monitor mixing system.

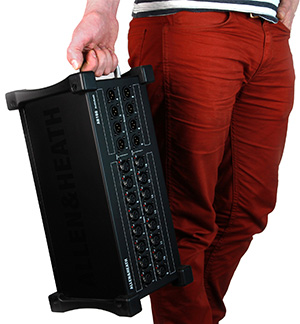

Made for life on the stage, this box is equipped with rubber bumpers for placing it horizontally or vertically on the floor during performances. Lightweight at just 10.6 lb, and featuring a sturdy carry handle, the AB168 is also designed for maximum convenience and portability. The unit can also be rackmounted using an optional kit (available separately), and auto updates its firmware to synchronize with the GLD system.

Features:

Portable solution for live sound and installations allows the inputs and outputs to be positioned at up to 393’/120m from mixer, over a single Cat5 cable
Compatible with GLD and Qu digital mixing systems, AR2412 AudioRack, ME systems
16 x mic/line XLR inputs with pristine mic preamps and individual LED phantom power indicators
8 x XLR line outputs
dSNAKE connection with locking EtherCon port
Expander connection with locking EtherCon port for daisy-chaining units or connecting to ME personal monitor mixing system
Lightweight (at 10.6 lb) with carry handle for easy transportation
Rubber bumpers and sturdy construction for life on the stage
Optional rackmount kit available separately

Specifications

Inputs
XLR Mic/Line Inputs	Mic/Line Preamp: Balanced, fully recallable Input Sensitivity: -60 to +15 dBu Analog Gain: +5 to +60 dB, 1 dB steps Pad: -20 dB Maximum Input Level: +32 dBu Input Impedance: > 4 kOhms (pad out), > 10 kOhms (pad in)
Mic/Line Channel Noise	(20 Hz to 20 kHz, direct out at unbalanced out) Mic EIN: -127 dB with 150 Ohms source Unity Gain, Pad In: -90 dBu Low Gain, 5 dB, Pad Out: -93 dBu Mid Gain, 30 dB, Pad Out: -89 dBu
Mic/Line Channel THD+N	(20 Hz to 20 kHz, direct out at unbalanced out) Unity Gain, Pad In: 0.005%, -86 dBu at 1 kHz, 0 dBu output Low Gain, 5 dB, Pad Out: 0.003%, -89 dBu at 1 kHz, 0 dBu output Mid Gain, 30 dB, Pad Out: 0.004%, -88 dBu at 1 kHz, 0 dBu output

Outputs
XLR Outputs	(Balanced, relay-protected) Output Impedance: < 75 Ohms Nominal Output: +4 dBu = 0 dB meter reading Maximum Output Level: +22 dBu Residual Output Noise: -91 dBu (muted, 20 Hz to 20 kHz)

General
Compatibility	GLD, Qu digital mixing systems AR2412 AudioRack
Ports	1 x dSNAKE port for CAT5 cable link to mixer or AR2412 rack 1 x Expander port for CAT5 cable link to connect additional AB168 rack
Power	100-240 V, 50/60 Hz, 20 W maximum
Operating Temperature	32 to 95° F / 0 to 35° C
Dimensions (W x H x D)	16.2 x 6.1 x 7.4″ / 41.1 x 15.4 x 18.9 cm
Weight	10.6 lb / 4.8 kg
