ไวเลสกีตาร์ AKG WMS45 Perception
ชุดไวเลสกีตาร์แบบ UHF สำหรับเครื่องดนตรีกีตาร์และเบส AKG WMS45 Perception Wireless 45 Instrument Set, 30 MHz selection bandwidth, 8 hours of operation with a single AA size battery, Compatible with all AKG MicroMics, Complete with MKG L cable
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿15,000.00 ฿4,900.00
Description

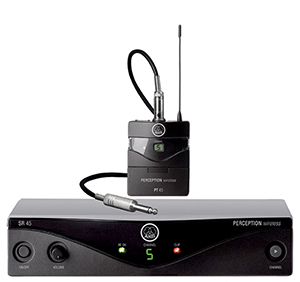

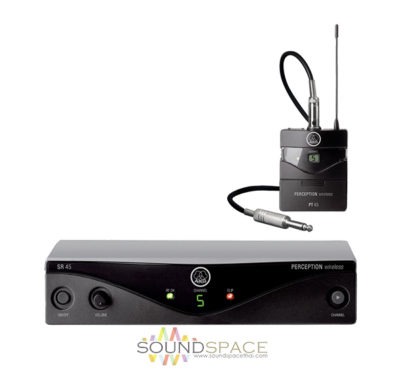

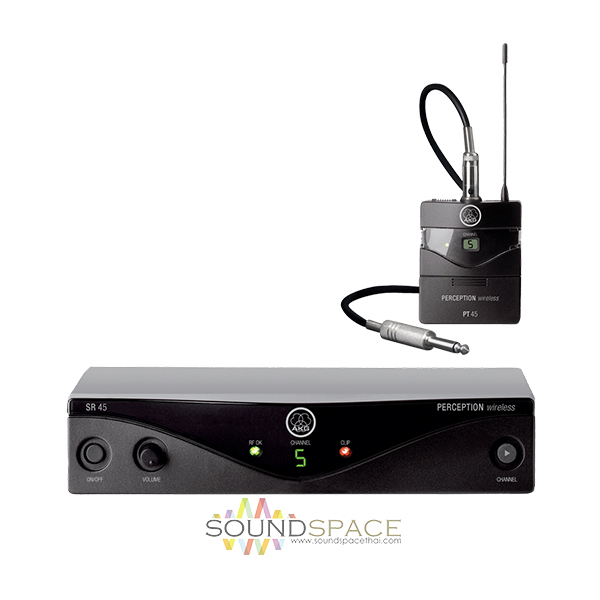

AKG WMS45 Perception Wireless 45 Instrument Set
ชุดไวเลสกีตาร์แบบ UHF สำหรับเครื่องดนตรีกีตาร์และเบส AKG WMS45 Perception Wireless 45 Instrument Set, 30 MHz selection bandwidth, 8 hours of operation with a single AA size battery, Compatible with all AKG MicroMics, Complete with MKG L cable
ในชุดประกอบด้วย:
- เครื่องส่ง BodyPack AKG PT40 Mini Transmiter และสาย MKG L Instrument Cable 1 ชุด
- เครื่องรับ AKG SR 45 เครื่องรับ 1 เครื่อง
The Perception Wireless Instrumental Set comprises an SR 45 receiver and PT 45 bodypack transmitter, the smallest and lightest transmitter in its class. It can be used with many AKG miniature microphones, and the battery compartment cover doubles as a convenient tool for setting input gain for the application at hand.
The system comes complete with a universal power supply with US/UK/EU adapter, MKG L cable with ¼” jack plug and mini XLR connector, and one AA size dry battery. In combination with the C 519 ML (sold separately) also suitable for wind instruments.

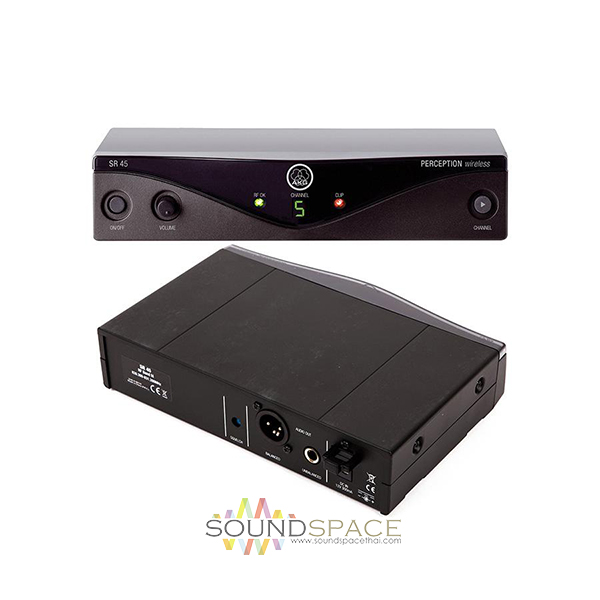

SR 45 Stationary Receiver
The SR 45 Stationary Receiver delivers a diversity system, professional XLR and Jack outputs, and the SMPS solution. The audio level and squelch threshold are adjustable on the receiver. It is a stationary receiver for use with all transmitters of the Perception wireless system.
The SR 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.

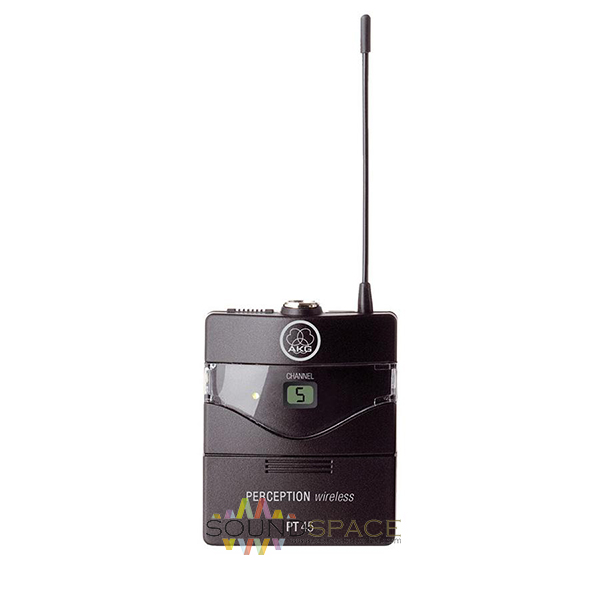

PT 45 bodypack transmitter
The PT 45 bodypack transmitter lets you use both dynamic microphones and condenser microphones operating on a supply voltage of approx. 4 V. Naturally you may also connect an electric guitar, electric bass or keytar.
The PT 45 operates within a switching bandwidth of up to 30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.
Features:
- 30 MHz selection bandwidth (depending on local frequency plans)
- 8 hours of operation with a single AA size battery
- Compatible with all AKG MicroMics
- Low battery indicator
- Smallest and lightest bodypack transmitter in its class
- Complete with MKG L cable for direct connection to electric guitar or bass
Specifications
เครื่องรับ SR 45 Stationary Receiver
- Carrier frequency range: 500 – 560 MHz
- Modulation: FM
- Audio bandwidth: 40 – 20,000 Hz
- T.H.D. at 1 kHz: typ. 0.8%
- Signal/noise ratio: typ. 105 dB(A)
- Squelch threshold: 100 to -70 dBm adjustable
- Audio outputs: Balanced XLR and unbalanced 1/4″ (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV RMS
- Dimensions: 7.87″ x 7.48″ x 1.73″, (200 x 190 x 44 mm)
- Net weight: 12.69 oz, (360 g)
เครื่องส่ง PT 45 bodypack transmitter
- Carrier frequency range: 500 – 560 MHz
- Modulation: FM
- Audio bandwidth: 40 – 20,000 Hz
- T.H.D. at 1 kHz: typ. 0.8%
- Signal/noise ratio: typ. 105 dB(A)
- RF output: 10 mW
- Power requirement: 1x 1.5 V AA size battery
- Battery life: 10 hours
- Dimensions: 2.36 ” x 2.91″ x 1.18″, (60 x 74 x 30 mm)
- Net weight: 2.11 oz, (60 g)
